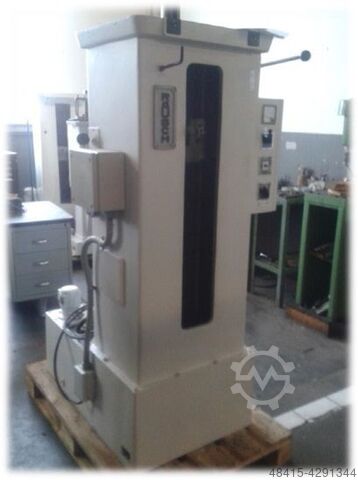

Broaching machine vertical – under power

Rausch RS 10 x 915

Year of construction: 1983, condition: excellent (used), machine/vehicle number: 03.2133, Arthur Klink - internal broaching machine (KOM 138) Gjdpfed Nb A Nsx Aa Iebg machine type: internal vertical hydraulic broaching machine manufacturer: Arthur Klink type: RISZ 16 x1250 x400 built in: 1983 stroke: 1250mm pulling force: 16.000KG working stations: 3 PCs drive: hydraulic system equipment: coolant system, magnetic chip conveyer remark: in an excellent condition, ready to use, perfect slides Optional accessories available on request: pulling head, pick up tool holder Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke

Year of construction: 1999, condition: used, pulling force - max. 6,0 t Gsdpfod Il A Nox Aa Isbg max. ram stroke 1250 mm dimensions of the machine ca. 1,20 x 1,20 x 3,25 m

Condition: used, BROACHING MACHINE Gbodst Hr Dfjpfx Aa Iog

Condition: used, functionality: fully functional, Manufacturer: Arthur Klink Year of construction: ca.1960 Type: horizontal broaching machine Model: RH 10-50 Machine. No.: 241 Weight: 3.700 KG General / technical data: Gedor A Hdgepfx Aa Isbg used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design Clearing stroke: 1,500 mm Tractive force: 10,000 kg (100KN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece clamping surface: Ø 460mm Workpiece diameter: max. approx. 750mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 7 m/min Return speed: hydraulically infinitely variable from 5 m/min to 30 m/min Space requirement of the machine: (w x d x h) approx. 6500mm x 950 mm x 1,400 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 8kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter Accessories - 1 universal pulling head for flat shafts from 3mm to max. 25mm wide - Adapter sleeve for drawbridge from Ø 85mm to Ø 63mm Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is well suited for heavy profile broaching tools. The machine is used and is in very good condition for its age. The machine is in our warehouse and can be inspected under power. The machine is currently not technically and visually refurbished, but can be used immediately. Pulling heads for profile broaching are mostly available used on request depending on DIN standard, dimensions and stock. Direct contact details and further information can be found in the attached PDF document

Year of construction: 1962, condition: good (used), machine/vehicle number: 1886, Used vertical hydraulic internal broaching machine with 3 broaching points Tractive force: 10.000 kg clearing length: 1.200 mm Broaching points: 3 pieces Distance between the broaching points: 380 mm Mounting diameter of the broaching heads 3 x Ø ___mm Passage width between the cylinders: max. XXX mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1,300 x 1,450 x 3,350 mm (without pit) Power supply / connected load: 380Volt 50 HZ / 8.0 KW Accessories / special equipment: The machine is equipped with a workpiece table with 3 holes for 3 broaching positions. The tool clamping system is provided for spring-mechanical locking in the drawbridge and in the feeder. Gbjdpfx Aaot Dwb Dj Ijg The machine has an integrated coolant system. Remarks: The machine is designed for use in series production, ideally a foundation (pit) or optionally a platform is required for optimum use. Drawing heads and needle lifters are available on request. The machine can be viewed in our warehouse.
