Condition: used, Blow energy: 11000 kg/m Max. stroke: 900 mm Daylight between guides: 750 mm Length of die seat in ram: 750 mm Fsdpfsvam Enox Aa Njgi Max. stroke rate: 90 s.p.m. Die seat length in die holder: 1050 mm Min. die thickness: 350 mm Max. upper die weight: 1100 kg Operating height: 780 mm Anvil weight: 75000 kg Weight of machine approx.: 103000 kg

Year of construction: 1962, condition: used, machine/vehicle number: 1790, creator: Karl Klink Model: RW 5 year of construction: 1962 weight: ca. 2500 KG machine. No.:1790 General / technical data: hydraulic horizontal internal broaching machine in a good working condition clearing stroke: 1320mm turning: 1 piece pulling force: 5000 KG at 3m/min (3000KG at 7m/min) Clamping tool: universal drawing head for flat shafts Through hole in clamping table: Ø 100mm Workpiece diameter: max. 420mm (due to the oil and spit trough) cutting speed: hydraulically infinitely variable from 1m/min to 7m/min Return speed: hydraulically infinitely variable from 7m/min to 25m/min Dimensions of the machine: (w x d x h) approx. 4600mm x 600mm x 1900mm (without working area) Power supply: 380Volt / 50 HZ / 15A hydraulic motor: 4 KW Accessories / special equipment: Fgododl Uzkspfx Aa Nji - the machine is equipped with a universal pulling head for flat shafts - Coolant / lubricant system - without tool feeder - short oil and oil sump (approx. 900mm) Remarks: The machine is ideal for the production of keyways. On request broaches and mandrels can be supplied. The machine is ready to run under power in our warehouse.

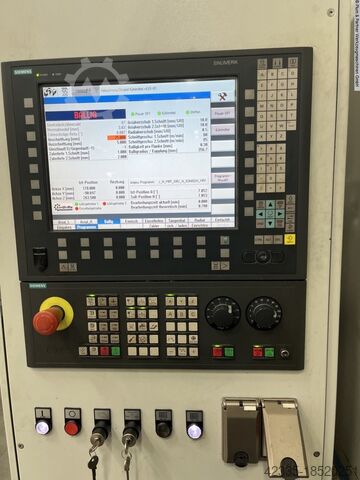

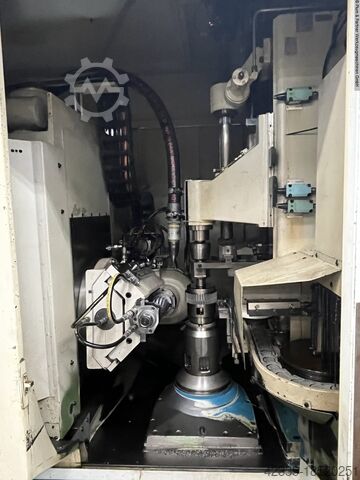

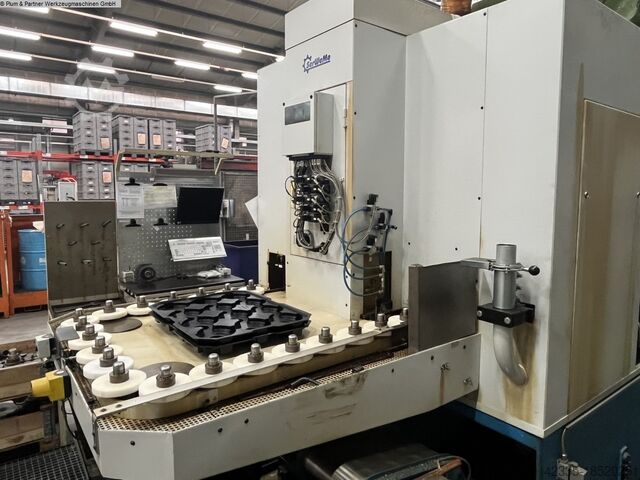

Condition: ready for operation (used), max. wheel diameter 150 mm gear width 1 - 200 mm max. module 4 min. module 1 control Sinumerik 840 D table diameter 140 mm maximum axial offset 200 mm Fedpovzhg Nefx Aa Nogi milling tool taper ISO 40 diameter of hob max. 130 mm cutter length max. 220 mm milling spindle speeds (infinitely variable) 300 - 1200 U/min shifting max. 170 mm milling head -swivable +/- 45 ° feed speeds 1 - 1500 mm/min rapid travel speed 3000 m/min max. workpiece diameter im Magazin: 150 mm total power requirement 50 kW weight of the machine ca. 8,5 t dimensions of the machine ca. 4,7 x 3,6 x 2,6 m Used gear hobbing machine, Pfauter, new in 1992 completely overhauled in 2023 by the specialist company SerWeMa, with Siemens Sinumerik 840 D control system and workpiece magazine.

Year of construction: 1974, condition: refurbished (used), functionality: fully functional, machine/vehicle number: 1293, CNC Radial Forging Machine GFM mod. SX-16 Manufacture: GFM (Austria) YOM: 1974 / 2022 Model: SXL-16 Machine number: 1293 Fgsdeq U Sa Sspfx Aa Noi PLC: Siemens S7 - Technology V4.2 with CNC Bosch Rexroth XM Numbers of Hammers: 4 Forging force: 800 Ton (200 t per Hammer) Strokes per minute: 580 Hammer length: 320 mm Maximum hammer setting scope - calculated by diameter: 100 mm Maximum diameter of forging regarding: - structural steel: circular cross section – Ø 160 mm square cross section – 130 mm - high alloy steel: circular cross section – Ø 120 mm square cross section – 100 mm Extreme quadrangle: 12 x 120 mm Maximum length of forging: 6000 mm Min and Max diameter of mounting in manipulator: 30 - 160 mm Feed of manipulator A: 6800 mm Feed of manipulator B: 7200 mm Passage through manipulator: Ø 130 mm Manipulators speed in fast move: 400 mm/s Feed speed of manipulators (stepless adjustment): 10 ÷ 115 mm/s Cooling water pressure: 3 ÷ 5 bar Temperature of inlet water: max. 30˚C Cooling water consumption: 34m3/h Pipe diameter for cooling water: 2” Compressed air pressure: min. 5 bar Pipe diameter for compressed air: Ø20 mm Consumption of compressed air: 1,5 Nm3/h Power supply (nominal power): 350 kW Motor voltage: 500 V Control voltage 220 V Power of main engine: 200 kW Power of pump motors: 185 kW Power of manipulators motors: 2 x 22 kW Dimensions of the machine Axis height of forging above the hall level: 750 mm Maximum height of machine above the hall level: 2.050 mm Maximum length of machine on the hall level: 33.740 mm Foundation length: 34.200 mm Maximum width of machine on hall level without loading equipment: 4350mm Foundation width: 15.600mm Machine net weight: 124.490 kg

Year of construction: 1999, condition: used, pulling force - max. 6,0 t max. ram stroke 1250 mm Fgjdpfx Aaed Il A Ns Nji dimensions of the machine ca. 1,20 x 1,20 x 3,25 m

Year of construction: 1983, condition: excellent (used), machine/vehicle number: 03.2133, Arthur Klink - internal broaching machine (KOM 138) machine type: internal vertical hydraulic broaching machine manufacturer: Arthur Klink type: RISZ 16 x1250 x400 built in: 1983 Fodpfx Aod Nb A Nja Negi stroke: 1250mm pulling force: 16.000KG working stations: 3 PCs drive: hydraulic system equipment: coolant system, magnetic chip conveyer remark: in an excellent condition, ready to use, perfect slides Optional accessories available on request: pulling head, pick up tool holder Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke

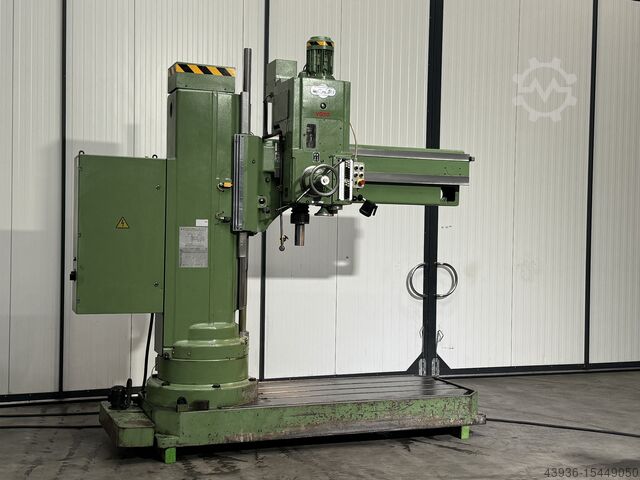

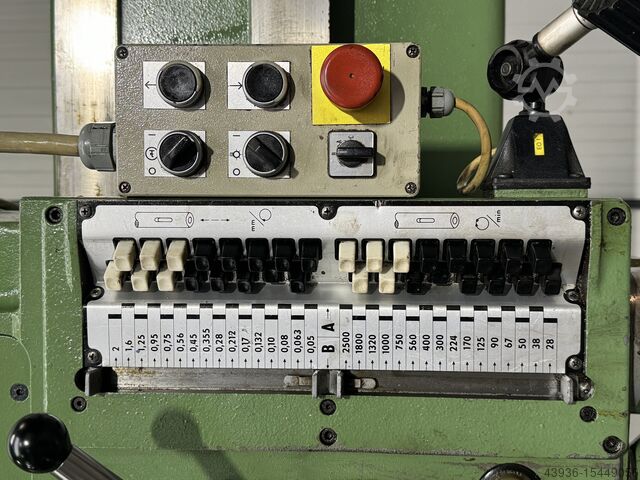

Condition: good (used), Manufacturer: KOVOSVIT MAS Type: VO 50 / 1600 Year of construction: 1998 Specifications: Metric Metric US Standard Arm length 1600 mm Max. Drill Ø iron 60 mm Max. Tap diameter 42 M Quill stroke 310 mm Max. Distance spindle - table 1505 mm Min. distance spindle - table 320 mm Table / footprint 1470 x 986 mm Fgedpfx Aor Dr T Iea Nji Spindle speed 2500 rpm Tool holder 6 ISO/Bt/Mk Quill Ø 55 mm Power output 4 kW Dimensions (estimate) length 2900 mm width 1200 mm height 3200 mm weight 4700 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Fgodjqzkdmjpfx Aa Noi

Condition: used, Year of construction: 1969, grinding length 500 mm grinding width 200 mm workpiece height 250 mm total power requirement 5,5 kW weight of the machine ca. 2500 kg dimensions of the machine ca. m J U N G Horizontal High Precision Surface- and Profile Grinding Machine Model HF 50 RD, Year 1969, partially reconditioned in 2021 Serial-no. 4082 _____ Grinding length max. 500 mm Grinding width max. 200 mm Table size 600 x 200 mm Grinding height under grinding wheel approx. 250 mm Table cross travel approx.. 230 mm Table slide cross stroke 0,2 - 8 mm/table stroke Table longitudinal travel max.. 550 mm Table speed longitudinal 1 – 20 m/min. Measurement of grinding wheel 225 x 25 x 51 mm Grinding wheel speed infinitely adjustable 1.000 - 4.500 rpm Vertical feed 0.001 - 0.01 mm/stroke Grinding spindle drive infinitely variable load 0,4 – 1,5 kW Total electrical load 5,5 kW - 380 V – 50 cycles Weight approx. 2.500 kg Accessories/Special Features: • Due to the infinitely variable speed range of the grinding wheel this design is especially suited for grinding of high alloyed steels and carbide, hardmetal, etc. • Set up switches for plunge-in or normal pendular-grinding with automatic infeed • Automatic infeed of grinding slide during surface- and/or profile grinding, (plunge-in cut)with automatic stop of infeed by contact-Gauge. • motorized rapid feed of grinding head up/down • Manual straight grinding wheel-dressing device mounted above the grinding wheel • Manual Table mounted, swivable magnetic chuck make BRAILLON size 400 x 200 mm • separate converter cabinet for infinitely variable speed regulation and with respective display of cutting speed in m/sec. • Wet grinding facility including coolant tank and bandfilter cleaning Fgedst Hwzispfx Aa Noi device, separate standing, • Including 3 separate flanges, some grinding wheels, service tools, etc. Condition : good – can be inspected here under power, partially reconditioned by a JUNG Specialist (table pistons, lubrication, infeed system, Dresser, covers, etc.) Delivery : ex stock – as inspected Payment : net– after completion of contract

Year of construction: 1962, condition: good (used), machine/vehicle number: 1083, Broaching Machine - Vertical Fedpfx Aajfc T Eus Njgi Manufacturer: Rausch Type: RS10/915 Machine number: 1083 Year of manufacturing: 1962 Force: 10 Tons Stroke: 915 mm System DIN 1415 With pedestal for upper-floor positioning
