Hydro implement carrier power harrow

Reform M14

REFORM M14

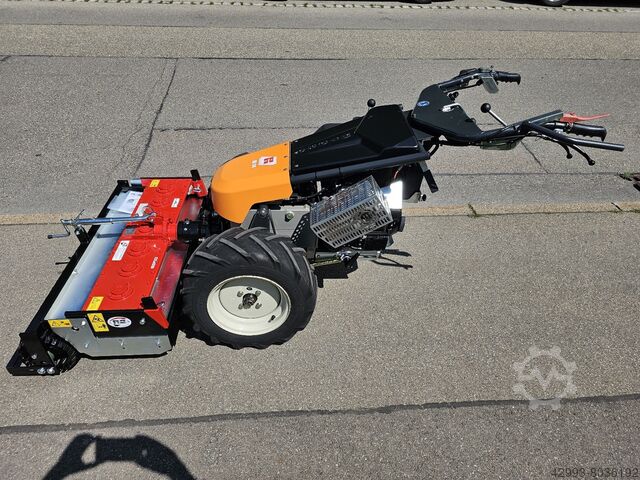

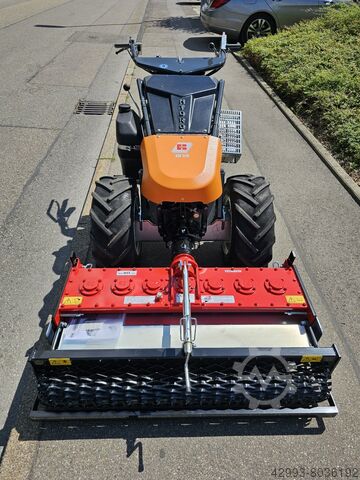

Hydro carrier with R2 rotary harrow

Technical data:

ENGINE:
4-stroke gasoline engine: 21 hp Briggs & Stratton, 2-cylinder, 4-stroke gasoline engine

DRIVE: hydrostatic, continuously variable drive, direction and speed adjustable electro-hydraulically via rocker switches on the steering handle with integrated, continuously adjustable creep speed control.

SPEED: Forward 0 - 9.0 km/h, Reverse 0 - 4.0 km/h

AXLE: continuously adjustable in length (120 mm) for center of gravity adjustment or to reduce load on the implement

STEERING: finely adjustable hydraulic steering, operated via 2 steering levers on the left and right of the handle. Hydraulic differential lock effect when driving straight.

IMPLEMENT ATTACHMENT: self-centering quick-release coupling

PTO SHAFT: drive-independent front PTO shaft, 874 rpm at 3400 rpm engine speed, clockwise rotation

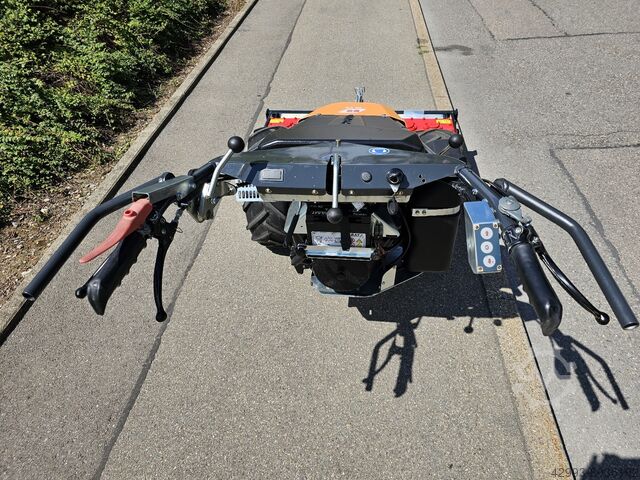

EQUIPMENT: elastically mounted, height- and side-adjustable steering handle, emergency stop lever on the left on the steering handle grip

WEIGHT: 220 kg

Tires: 23x8.50-12AS Terra low-pressure wide tires

Attached implement:
Lsdpfxeizi Naj Ammeac

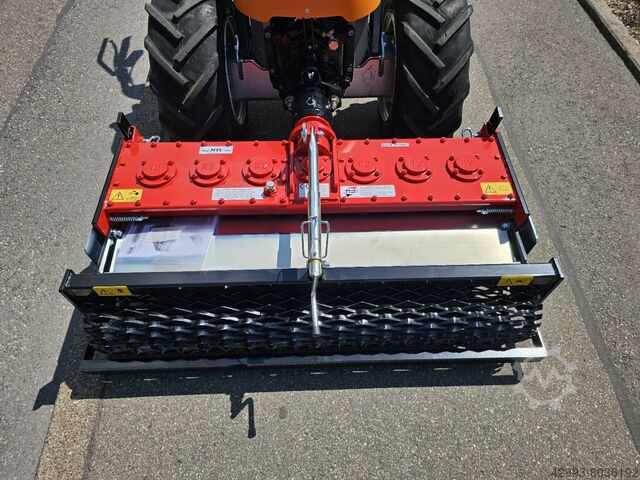

- R2 MTL-100 rotary harrow (unused)

This REFORM M14 is in very good overall condition, has just been serviced, and is ready for immediate use!

- The price is quoted excluding 19% VAT.

- Inspection/test drive is possible at any time.

- Shipping by freight forwarder: €220

- Financing/leasing can be arranged individually for you!

The listing was translated automatically. Translation errors are possible.
