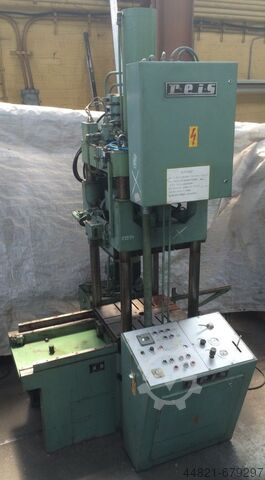

Spotting press

REIS TUS 60-40 T

Condition: good (used), Year of construction: 1988, machine/vehicle number: 03105, clearance between the columns: 1,300 mm, table width: 1,200 mm, table length: 1,500 mm, Weight: approx. 16,000 kg, table size: approx. 1500x1200 mm, distance between top plate and bottom plate max is 1550mm, with sliding table and separate control/operating panel Ibodpfx Acjtdnnmo Hef

Condition: used, Year of construction: 2005, functionality: fully functional, PERFORMANCE AND DESIGN: Pressing Capacity: 26-100 T (adjustable) Maximum Return Force: 45 T Table Dimensions: 1,600 x 1,300 mm Maximum Table Load Capacity: 12,000 kg Distance – Ram to Lower Table (Max.): 1,700 mm Frame Type: 4-column Overall Dimensions approx. (W x D x H): 4,900 x 2,800 x 5,500 mm Total Weight approx.: 17,000 kg T-slots and drillings to DIN 650 – 22 mm HYDRAULIC UNIT: Hydraulic Pump (Brand: REXROTH): SYDFE2x/071R-PPA.. Motor Power: 15 kW Max. Operating Pressure: 200 bar Pressure Accuracy during Pressing Stroke: +/- 5 bar Oil Tank Volume: 475 L Hydraulic Oil Specification: HLP 36 ELECTRICAL SYSTEM ACCESSORIES ELECTRICAL CONNECTION: - Main Supply: 400V AC - Control Voltage: 24V DC - Frequency: 50 Hz - Hydraulic Main Motor Connection: 15 kW - Total Connected Load approx.: 21 kW FEATURES • 180° foldable ram plate up to 7.5 tons (tilted) • Ram ejector 5.6 tons, 160 mm stroke • Stroke extension by 300 mm • Increased speed DOCUMENTATION • Hydraulic diagram • Electrical diagram • Technical drawing • Data sheet FUNCTIONS AND DESCRIPTIONS CONTROL OF THE PRESS: The press is operated via the operator panel. • Raise/lower the ram plate • Tilt the ram plate • Extend/retract the table • Operate the ejector • Set press force Ijdpjxd Tv Dsfx Ac Hsbf The control system is Siemens Simatic S7-634.

Condition: used, Year of construction: 1980, pressure 40 t table length 670 mm Ijdpfx Aot Hxczoc Hebf table width 570 mm total power requirement kW weight of the machine ca. t dimensions of the machine ca. m

Condition: used, Year of construction: 1985, pressure 100 t distance between columns 1250 mm Iedpjvuumcjfx Ac Hsbf stroke 1035 mm table surface area 890 x 1280 mm distance table/ram, max. stroke up, adjustment up 1035 mm table height over floor 630 mm ram surface 1000 x 1200 mm side window 700 mm max. tool weight 7 t max. capacity of swivelling ram plate 3,5 t oil volume 180 l power capacity 9,0 kW weight 11,0 t Dimensions (WxDxH) 2,1 x 3,8 x 3,9 m with swivelling ram, movable table, inclining table, ejector in table, hydraulic ram interlocking press can be inspected in running condition in our warehouse

Condition: used, Year of construction: 1991, pressure 40 t distance between columns 930 mm stroke 1100 mm distance table/ram, max. stroke up, adjustment up 1035 mm table surface area 900 x 1280 mm table height over floor 665 mm ram surface 900 x 1200 mm side window 700 mm max. tool weight 7,0 t Ibjdpfxovuul Ss Ac Hsf max. capacity of swivelling ram plate 3,5 t Speed down 0 - 50 mm/s Speed up 0 - 34 mm/s Working speed 0 - 10 mm/s oil volume 140 l power requirement 9,5 kW weight 7,0 t dimensions (WxDxH) 2,1 x 3,6 x 3,6 m with swivelling ram, movable table can be offered without or with putting into operation in given condition - video at seller'S site before dismantling available

Condition: used, Year of construction: 1994, Pressure 100 t distance between columns 910 mm stroke 600 mm distance table/ram, stroke up 1000 mm table surface area 1340 x 1085 mm hole in the table 705 x 405 mm table height over floor 800 mm side window 685 mm ram surface 1235 x 1000 mm oil volume 450 l capacity of ejector 7,5 t Ibodpevuk E Isfx Ac Hof ejector stroke 150 mm speed down 380 mm/s speed up 185 mm/s working speed 28 mm/s oil volume 450 l power requirement 15,0 kW weight 9,5 t dimensions (WxDxH) 2,3 x 1,9 x 3,6 m hydraulic fast-stroke trimming press for cast parts with oilhydraulic drive, light guard (Sick), hydraulic blank holder / ejector in ram (7,5 t / 150 mm), control device for hydraulic blank holder, pneumatic ram interlocking table surface 1340 x 685 mm or 910 x 1085 mm ram surface 1235 x 685 mm or 910 x 1000 mm as is where is, WITHOUT putting into operation

Condition: good (used), Year of construction: 1989, Work load 7000 Kg Rotation table load 3500 Kg Table height over floor 665 mm Upper mould half can be freely swiveled out up to 180 Gr. Lower mold half can be swiveled hydraulic using push button Lower mould tiltable 2 sides Optimum handling, free working positions All movements are hydraulic controlled Distance between column:930mm Hight under roof: 1035mm Table Length: 1280mm Ram stroke: 1100mm Approche speed: 50mm/min. Working speed: 10mm/min. Return speed: 34mm/min. Table rotation: 270U/mm Length: 2100mm Width: 3600mm Ibjdpfswq Rm Aox Ac Hsf Height: 3600mm Weight: 8000kg

Condition: used, Year of construction: 1987, pressure 65 t distance between columns 930 mm stroke 1100 mm distance table/ram, stroke up 1300 mm table surface area 1340x1084 mm hole in the table 604 x 404 mm table height over floor 1000 mm side window 705 mm ram surface 1230 x 990 mm speed down 620 mm/s speed up 207 mm/s working speed 320 mm/s oil volume 450 l power requirement 15,5 kW weight 8,0 t dimensions (WxDxH) 2,8 x 2,6 x 4,85 m Ibedpfx Acjvuk Sze Hof hydraulic fast-stroke trimming press for die-cast parts with oilhydraulic drive, hydraulic shifting devices (4x), hydraulic blank holder in BDC / ejector in TDC in ram, ram interlocking device table surface 1340 x 705 mm or 930 x 1084 mm ram surface 1230 x 705 mm or 930 x 990 mm Insert plate in table with opening 320 x 260 mm as is where is, WITHOUT putting into operation / WITHOUT additional work

Year of construction: 1990, condition: ready for operation (used), A Reis spotting press for tool and mold making is available. Pressing force: 1000kN, clamping area: 1200mm/1500mm, installation height: 1575mm, max. mold weight: 10000kg, max. tilting plate load: 4000kg, ram stroke: 1450mm, return force: 400kN, hydraulic pressure: 190bar, pneumatic pressure: 5bar. Machine dimensions X/Y/Z: approx. 3200mm/4500mm/4100mm. Documentation available. On-site inspection possible. Ibsdpfx Asxt Rl Ioc Hsf
