Worm dressing machine

REISHAUER

Condition: good (used), Year of construction: 1974, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Reishauer Gear Grinding Machine Model NZA Year 1974 Machine in very good condition, very clean and complete with all tooling. Sold with full documentation, including electrical diagrams, etc. Equipment and accessories: Grinding wheels with flanges 14 grinding wheels 5 wheel flanges Several centers Several collets 4 dressing devices Workpiece inspection device Many diamonds with new and used modules Ffedjytcgxspfx Ag Tew Many gears for dressing and dividing Oil filtration tank Complete and well-equipped machine, ready to work.

Condition: new, functionality: fully functional, machine/vehicle number: 314567.00, number of clamping sleeves: 1, mount diameter: 30 mm, clamping range: 30 mm, Collets / collet caps / support sleeve for collet device new - unused 5 collet caps for collets, size Ø30, item no. 314567.00 Ffedpowccp Hofx Ag Tsw 4 collets, size Ø30.0 1 support sleeve for collet, size Ø30 - for Reishauer RZ 301 / RZ 362 from our stock Price / details on request All technical data subject to errors/omissions. We sell exclusively to countries within the European Community.

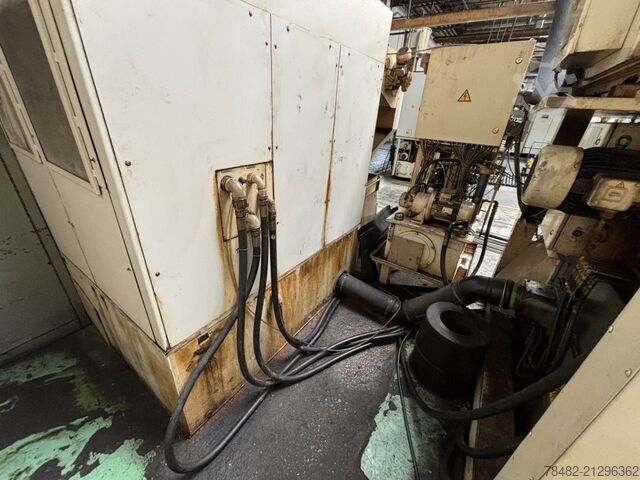

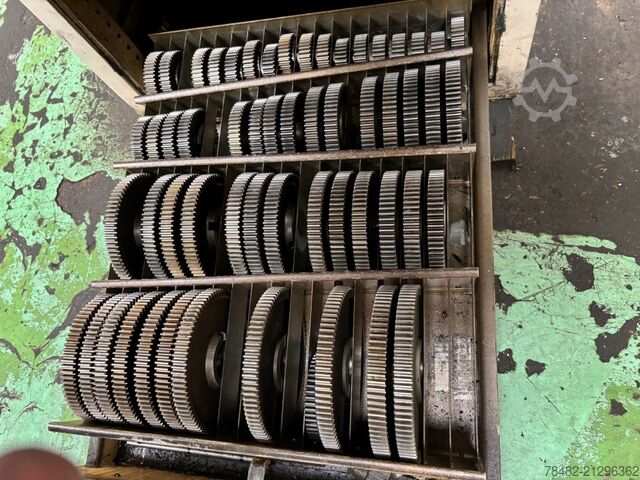

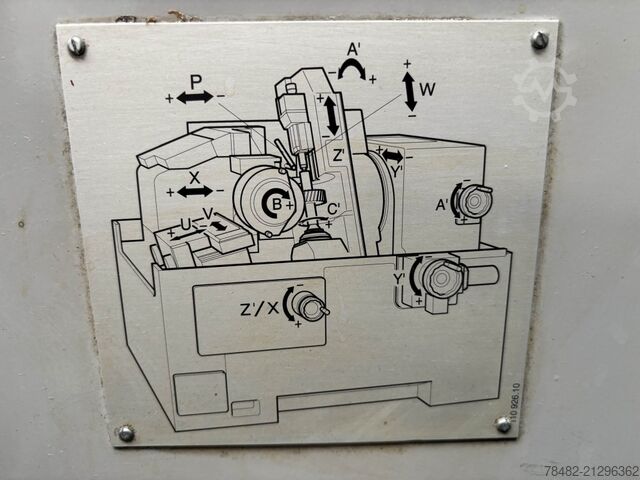

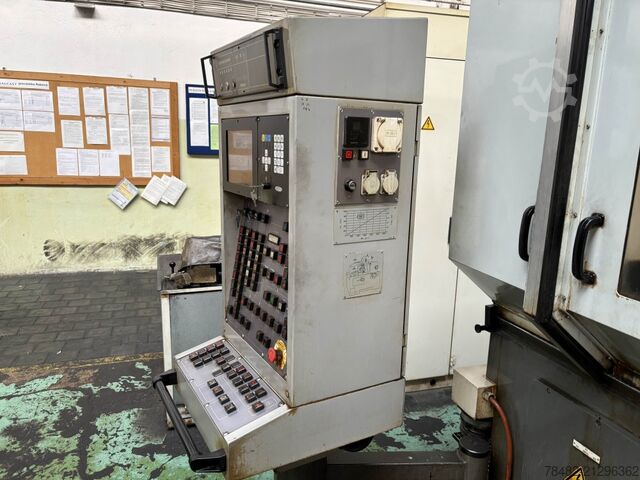

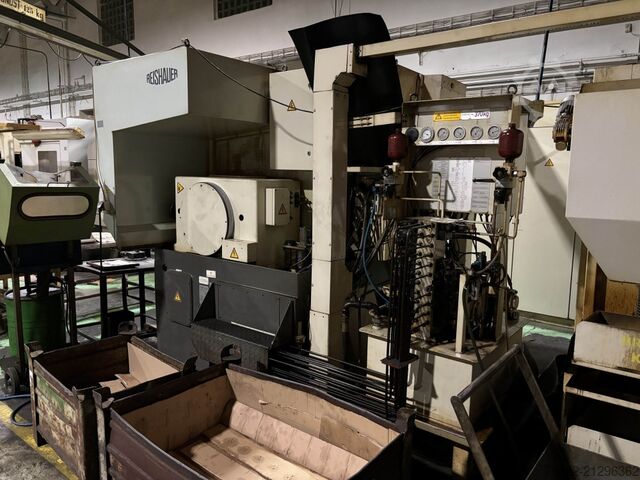

Condition: used, Year of construction: 2001, REISHAUER - RZ 362A - 2001 - used condition as shown on photos Ffedpfsyl Simsx Ag Tew - under power, can be tested - more photos available

Condition: new, Year of construction: 2022, functionality: fully functional, mount diameter: 38 mm, clamping range: 38 mm, 2 x Reishauer Clamping Device Base Unit Chuck FK 38 new - unused Ffsdpfx Ajwzkcxsg Tjw suitable for Reishauer gear grinding machine, fitting the spindle for machines RZ 150 / RZ 160 / RZ 260 clamping diameter: 38 mm for max. speed = 3,000 rpm balanced with clamping stroke monitoring / 3-point contact monitoring and provision for additional functions clamping / air supply monitoring / clamping stroke monitoring incl. assembly and operating instructions as well as Reishauer wooden transport container Price / details on request All technical specifications subject to typing errors / mistakes. We sell exclusively to countries within the European Community.

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 211619.00, grinding wheel diameter: 275 mm, mount diameter: 160 mm, 2 new unused grinding wheel flanges Reishauer part no. 211619.00 for grinding worms Ø275 / 160x160 RZ160 / RZ260 Flange for mounting grinding tools with a bore diameter of 160 mm and a width of up to 160 mm 300x160x160 All technical data subject to possible typographical errors/mistakes. Price on request Sale exclusively within EU countries. Fsdpfx Agex Eiycs Tsfw

Condition: good (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: 68910, workpiece weight (max.): 5,100 kg, wheel width: 180 mm, grinding wheel diameter: 330 mm, helix angle: 45 °, rotational speed (min.): 1,100 rpm, rotational speed (max.): 1,900 rpm, type of input current: AC, wheel diameter: 10 mm, gear diameter: 330 mm, overall weight: 5,100 kg, total height: 2,300 mm, total length: 6,000 mm, total width: 4,500 mm, Wheel diameter - max. 10 - 330 mm Fsdpfx Agoykrmcj Tjfw Wheel width 180 mm Module - max. 7 Module - min. 0.5 Clamping length 420 mm Number of teeth 10 - 600 Helix angle - max. +/- 45° Speed 1100 - 1900 rpm Grinding wheel diameter 280 - 350 mm Grinding wheel width 84 - 104 mm Machine weight approx. 5.1 t Required space approx. 4.5 x 6.0 x 2.3 m Grinding oil filtration unit Reishauer AF

Year of construction: 2018, condition: ready for operation (used), A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible. Ffodpfx Aow Rqwaog Tjw

Condition: ready for operation (used), Year of construction: 1985, A thread and worm grinding machine Reishauer AG is available. Grinding length: 450mm, clamping length: 700mm, max. grinding diameter: 200mm, max. pitch: 80mm, max. workpiece weight: 100g, max. lead angle: +/-25°, grinding wheel diameter: 275mm/350mm, speed: 1850rpm. Machine dimensions X/Y/Z: approx. 2600mm/1800mm/1600mm, weight: approx. 3400kg. Including oil centrifuge, hood, oil mist extraction and various accessories. The splash curtain is slightly hardened. Documentation available. An on site inspection is possible. Fjdpfx Asx Dm Dneg Tjfw

Condition: excellent (used), max. width of grinding wheel 15 mm max. dia. of grinding wheel 110 mm max. module 0,4 - 8 pressure angle 15 - 25 ° turning speeds 2650 U/min total power requirement 0,4 kW weight of the machine ca. 0,02 t dimensions of the machine ca. 0,4 x 0,2 x 0,2 m For profiling grinding snails for tooth flank grinding machines. Finished and after-profile on the following models: Fodpfx Ajvf Riujg Tsfw NZA, AZA, RZ 300 E, RZ 301 S, Rz 362 A, Am, ... Adjustment plate on the right with micrometer screw adjustment axial To bracket a diamond roll.

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t Ffodpfx Aovc Apbsg Tow dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *
