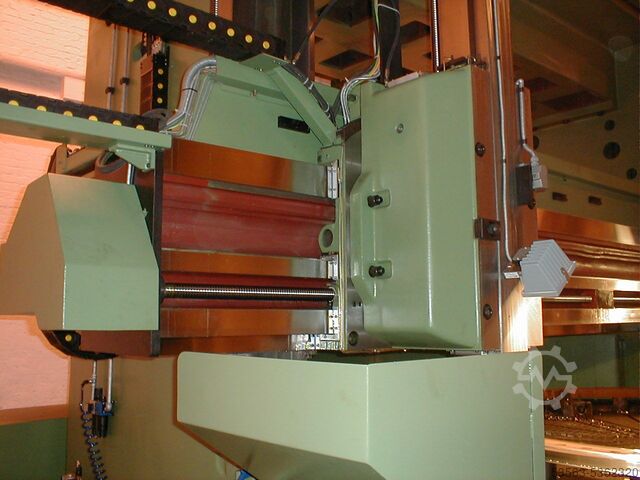

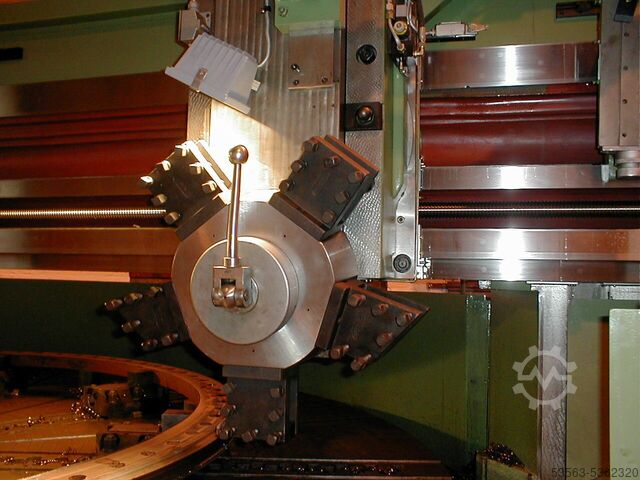

Vertical turret lathe

REM SCR 17/22/27/33/43 MANUAL

Condition: used, Year of construction: 1986, faceplate diameter 2500 mm swing diameter 2800 mm turning height 2200 mm table load 15 t Rest 2 total power requirement 55 kW weight of the machine ca. 56 t Ljdsyqvkxspfx Amvoag The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: like new (used), Year of construction: 2004, Retrofitted: 2026 Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640 Technical features Dimensions Table dimensions: 5600 x 2000 mmNumber of T slots: 13T slots dimensions: 22 mm Traverses of axis X axis traverse: 5000 mmY axis traverse: 3250 mmZ axis traverse: 1000 mmVertical capacity (VC): 450 / 1450 mmDistance between columns: 2700 mm Milling head Auto-indexing differential head (UAD - 0,1º)Tool clamping system: HydraulicTaper nose: ISO50 (DIN69871)  /  Pull stud: DIN69872Speed range: 6000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Maximum weight on table: 25000 kgMachine weight approximate: 56000 KgMachine dimensions approximate: 13200 x 5425 x 5350 mm Accessories Guarding: 2 sliding doors and new perimetral wire-mesh fence.Automatic tool changer: OptionalChip conveyor: 1 transversal hinge typeElectronic handwheel: New HR-510Coolant: External internal high pressure through spindle Sale conditions Warranty: 6 months mechanical spare partsPrice and sale conditions: On request View all technical features Lodpfjyf Rq Nox Amvsag

Year of construction: 1993, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 2800 mm TRANSVERSAL TRAVEL: 2200 mm VERTICAL TRAVEL: 1500 mm RAPID FEEDS L-T-V: 20 m/min TABLE SIZE: 3000 x 2000 mm MAX ADMITTED LOAD: 20000 Kg Lodpfjwla H Uox Amveag HEAD: A/B AXIS AUTOMATIC ; ISO 30 ; A-axis ±100° - B-axis ±185° ; 15000 rpm; 11 kW TOOL MAGAZINE: CHAIN-TYPE ; 12 POS CONTROL UNIT: FIDIA CXR10 DISTANCE BETWEEN UPRIGHTS: 3600 mm OVERALL DIMENSIONS: 7000 x 4000 x 6485 mm ACCESSORIES: PORTABLE HANDWHEEL

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Double Column Milling M/C - Gantry Type Brand: FOREST-LINE ALBERT / Type: MODUMILL 300G / Year of construction: 1999 Extensive modernizations in 2008 and 2021 ! Machine with interchangeable vertical and horizontal milling heads with automatic indexing. The machine can be inspected by appointment. Very well-kept, continuously maintained condition! TECHNICAL DATA: - CNC Control: SINUMERIK 840D - Travels X/Y/Z: 11.450 / 3.500 / 1.250 mm Cross-section of the Z-axis slider: 360 x 360 mm - Gantry passage: 3.000 - Height below vertical spindle: 1.400 mm - Working clamping width: 2.500 mm - Fixed table dimensions: 5.000 x 2.500 mm - Longitudinal pallet system EQUIPMENT: - Tool changer (chain magazine): 80-positions - Cooling through the spindle centre - 2 chip conveyors - Gantry panelling - Touch probe, Brand: RENISHAW - Electronic hand wheel - Remote diagnosis - Tool management and wear management - CE marking Electrical connection values: Ljdozfbi Ijpfx Amvsag - Total power requirement: 130 kVA - External dimensions of the machine: 22,6 x 8,0 x 6,3 m There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: like new (used), Year of construction: 2000, Retrofitted: 2026 Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640 Technical features Dimensions Table dimensions: 5600 x 2000 mmNumber of T slots: 13T slots dimensions: 22 mm Traverses of axis X axis traverse: 5000 mmY axis traverse: 3250 mmZ axis traverse: 1000 mmVertical capacity (VC): 500 / 1500 mmDistance between columns: 2700 mm Milling head Milling head model 1: UAGA orthogonal auto-indexing BC (2,5º)Tool clamping system: HydraulicTaper nose: ISO-50 (DIN69871)   /   Pull stud: (DIN69872)Speed range: 3000 rpmSpindle power: 30 kW Milling head model 2: FA large vertical spindleTool clamping system: HydraulicTaper nose: ISO-50 (DIN69871)   /   Pull stud: (DIN69872)Speed range: 3000 rpmSpindle power: 30 kW Milling head model 3: Direct spindleTool clamping system: HydraulicTaper nose: ISO-50 (DIN69871)   /   Pull stud: (DIN69872)Speed range: 5000 rpmSpindle power: 37 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Maximum weight on table: 25000 KgMachine weight approximate: 56000 KgMachine dimensions approximate: 13200 x 5738 x 5850 mm Accessories Guarding: 2 sliding doors and new perimetral wire-mesh fenceMilling head changer: Semi-automatic with hinges on columnAutomatic tool changer: OptionalChip conveyor: 1 transversal hinge typeElectronic handwheel: New HR-510Coolant: External internal high-pressure through spindle (only in direct spindle) Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features Lodpfjznpczex Amveag

Condition: used, FOREST-LINE SERAMILL V3 270 2T is a gantry milling machine designed for high-precision machining, high accuracy and process reliability. Working capacities: 2 tables (table lengths 3000 mm and 4000 mm, widths 2000 mm), X axis 5000 mm (with 1 table), Y 3400 mm, Z 1250 mm, A axis ±135°/2.5° and C axis 360°/2.5°; distance between columns 2700 mm, table load max. 10,000 kg. Main specifications: spindle nose SK50, spindle speeds 10–6000 t/min, spindle motor 31 kW, spindle torque 430 Nm, total power required 90 kVA; feeds 1–30,000 mm/min on X/Y/Z; rapid traverse X 30’000 m/min, Y 40’000 m/min, Z 30’000 m/min; voltage 3x 400 V 50 Hz. Equipment: tool magazine 120 places, tool holder 700 pce, automatic tool setting BLUM, touch probe M&H. Delivers tight tolerances and is suited to automotive, aerospace, machine tool, medical and watchmaking sectors. Laedpfx Amsy T N Ttevjg

Condition: used, x-travel 17700 mm y-travel 4755 mm z-travel 800 mm milling width 3450 mm distance table - vertical milling spindle 3682 mm table height over floor 500 mm spindle diameter in front bearing 200 mm turning speed range 12 - 450 U/min tool taper ISO 60 axial adjustment of the spindle slide 800 mm creep feed 5 und 50 mm/min feed stepless 10 - 3000 mm/min cross adjustment of cross beam milling head 4745 rapid traverse 2 m/min creep feed 3 und 30 mm/min feed stepless 6 - 2000 mm/min rapid traverse 10 m/min creep feed 3 und 30 mm/min feed stepless 6 - 2000 mm/min vertical adjustment of cross beam 3682 mm rapid traverse 1,5 m/min creep feed 1,25 und 12,5 mm/min feed stepless 5 - 1500 mm/min table-size 17800x2800 mm column daylight 3600 mm Control SIEMENS 840 C table load 50.000/100.000 kg drive of main spindle 100 kW total power requirement 170 kW weight of the machine ca. 300 t dimensions of the machine ca. 40 x 8,4x 8,6 m The machine is equipped with angle milling heads for large engine machining. + electrically renewed including cabinet, cabling and motors and equipped with a SIEMENS 840 C in 1999. Laedszwg Nkopfx Amvog + incl. 16 milling heads and misc.tools the drive of x-axis consists of one hydrostatic screw with hydrostatic rack

Condition: ready for operation (used), Year of construction: 1999, travel distance X-axis: 5,500 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 3,000 rpm, spindle motor power: 22,000 W, number of slots in tool magazine: 24, number of axes: 5, This 5-axis MECOF DYNAMILL 3000L was manufactured in 1999. It features an impressive X-axis travel of 5,500 mm, Y-axis travel of 3,000 mm, and Z-axis travel of 1,500 mm. The machine is equipped with a powerful spindle taper of ISO 50 and a tool magazine capacity of 24 tools. If you are looking to get high-quality milling capabilities, consider the MECOF DYNAMILL 3000L gantry milling machine we have for sale. Contact us for further details. • Orthogonal head: 10–3,000 rpm speed range; 22 kW power; automatic tool clamping (20,000 N clamping force) • PDFTwin 15 head (GAMFIOR electrospindle): 600–24,000 rpm speed range; 17.5 kW motor power; E18 electrospindle • Indexed positioning platform: 360 positions; ±180° rotation range; ±0.02/300 mm positioning accuracy; 45,000 Nm axial clamping force • PDFContinuous positioning platform: 360,000 positions; ±185° C-axis rotation range; 0–2,400°/min C-axis rotation speed; 2,000 Nm clamping torque Lasdpfxsznv Tgo Amvjg Additional equipment • Tool profile measurement device • Cart-type head magazine • BLUM radio-transmitted laser probe • Air/oil tool cooling system • MECOF High-Speed Milling system Technical Specification Taper Size ISO 50

Condition: good (used), Year of construction: 2010, functionality: fully functional, Unisign Uniport 6000, Year of manufacture 2010 / Commissioned 2011, Siemens 840 D control system, Travel distances X 10,000 mm, Y 1,500 mm, Increased spindle carriage stroke: Z 1,000 mm, Increased through-height 1,000 mm, Through-width 1,500 mm, Main drive 36 kW, n = 6,000 rpm, 720 Nm 2-stage gearbox 1:4 SK 50 tool holder Machining performance in C45: Full drilling D=120mm, threading M55, milling 100cm³/min Gantry design with movable portal bridge and stationary machine table. Machine table with clamping bars in the transverse direction, each with 750 mm spacing. The standard plate fields are omitted. Gantry-style machine Hydraulic clamping device with clamping bridges for machining shafts, including hydraulic system Angle drilling & milling head, n = 4,000 rpm, SK50 High accuracy and stability due to Hirth gearing Automatic tool change in the angle head Measuring probe RWP20.50-M Swinging operation Safety fence with light curtains, manufacturer Sick Machine table with clamping bars in the transverse direction, each 750 mm Tool chain magazine on the portal stand with 30 positions Machine coolant system Water-air heat exchanger integrated in the control cabinet Unisign remote diagnostics for Siemens Sinumerik 840 D Makrolon curtains on both sides of the portal bridge, adjustable in height by motor Partition wall with viewing panel Lasdpfx Aozua N Semvog Chip conveyor with hinged belt design Installation and alignment elements
