REMET R-150 roller chopper - 1 unit

REMET CNC

Description

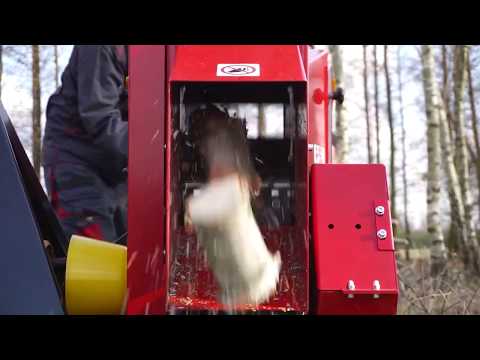

The R-150 STANDARD wood chipper was specifically developed to efficiently shred branches with a diameter of up to 13 cm. Manufactured at the REMET CNC Technology plant, this wood chipper is characterized by a robust, fully disassemblable, welded construction that ensures the necessary rigidity and strength of the machine.
Its precise cutting mechanism is manufactured using CNC machines and offers high quality, accuracy, and a coaxial gearbox, which ensures a long service life for all components. In addition, the cutting mechanism is equipped with a torque limiter that allows for easy adjustment of the blades while simultaneously protecting against overload damage.
Optionally, the R-150 STANDARD can be equipped with a flywheel or a drive wheel, as well as a folding conveyor belt. The conveyor belt can be flexibly positioned to the right or to the rear to adapt to the respective working requirements. These features make the R-150 STANDARD an extremely versatile solution for various applications in wood processing.

Technical data

Min./Recommended power
45/80 hp

Weight
290 kg

Internal mechanism width
220 mm
Node Ab Su Rspfx Ahbedc

Max. cutting diameter (fresh softwood)
130 mm

Max. cutting diameter (fresh hardwood)
110 mm

Max. cutting diameter (dry hardwood)
100 mm

Distance between shafts
150 mm

Blade thickness
12 mm

Gear diameter
280 mm

Housing thickness of the chipping mechanism
20 mm

Recommended PTO speed
540 rpm

Cutting blade material
Wear-resistant steel with increased hardness

Infeed hopper
62/38 cm

Mounting system
Three-point linkage

Trailer coupling traction force
1000 kg

Delivery
incl. bag holder

Cutting length (8 blades)
10-15 cm

The listing was translated automatically. Translation errors are possible.
