Thread-Cutting Machine

REMS UNIMAT 75

thread dia. 72 mm
Chjdpfxsv Irh Re Abwjc
threading length 200 mm
bolt thread from 6 - 72 mm
bolt thread from 1/16 - 2 3/4 "
inch thread 1/4 - 2 3/4 - 1/16 -2 1/2 "
cutting head turning speed 35 + 70 U/min
tube thread 16-63 mm
tube thread 1/16 - 2 1/2 "
total power requirement 2000/2300 Watt
weight of the machine ca. 227 kg
dimensions of the machine ca. 1,2 x 0,6 x 1,2 m

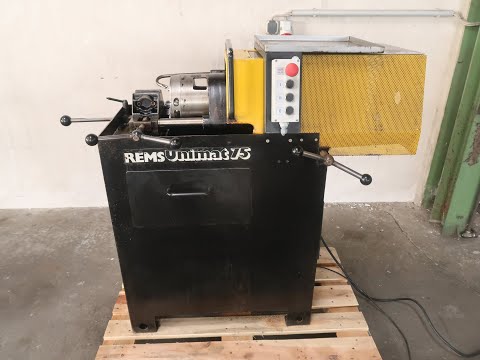

The "REMS Unimat 75" thread cutting machine is a semi-automatic
high-performance machine for the efficient cutting of bolt and pipe threads.
Working principle: stationary material - rotating head, manual, self-centering
vice, pole-changing motor, automatic lubrication cooling, drive via robust
planetary gear, right + left running, thread cutting head for chaser cutting
jaws. According to the previous owner, the chaser cutting jaws can be

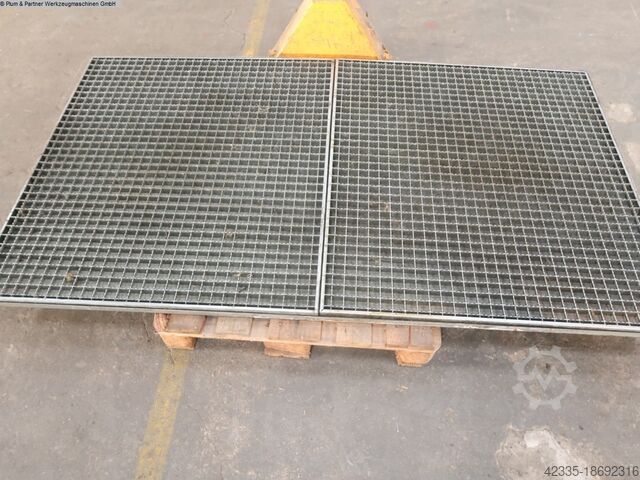

regrinded. Enclosed is a 2 x 1 m floor tray which is placed under the machine
with 2 grids. The year of construction is estimated.
The machine was overhauled by Rems in around 2015 and was hardly used after
that because the external threads were produced on other machines. Since then
the machine has been in storage and has now been sold. Please note: New price
today € 26,000.00.
Machine dealer with own stock of 1600 m².
