Dust collectors

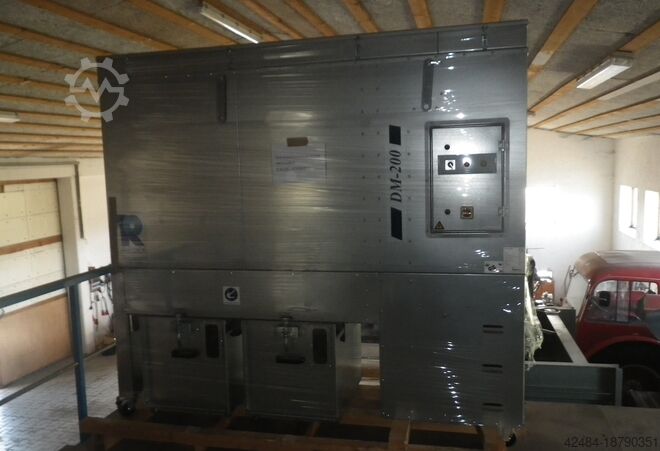

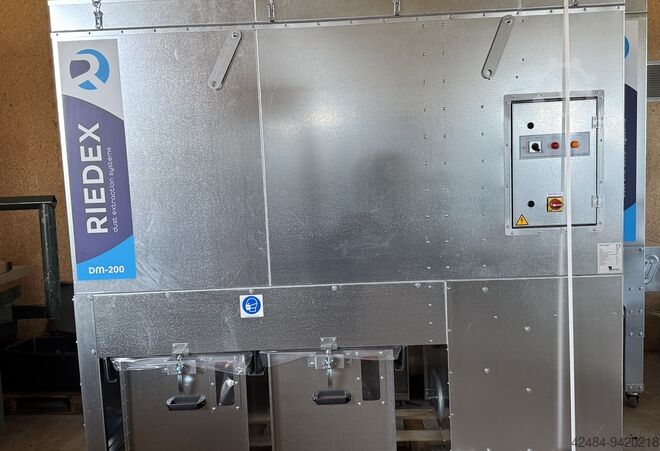

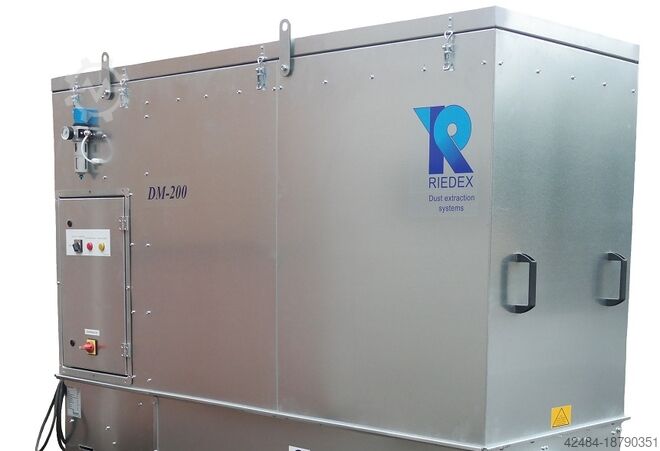

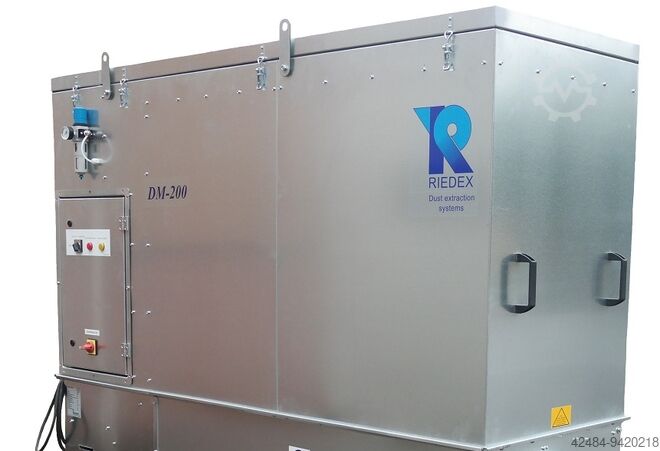

Riedex DM-200

Condition: new, Riedex dust extraction unit DM-200/M-B-L - new Ijdpfszykz Nex Ag Ajtn Dust extraction unit with 2 chip collection bins Left-hand version Motorized cleaning system Motor power: 4.0 kW Mobile

Condition: used, machine/vehicle number: 008169, X axis working area: 4500 mm Y axis working area: 1550 mm Working Table: Pod and Rail Main Electrospindle power: 12 KW Number of controlled axes: 4 axes Total number of drilling spindles: 31 Itodpfx Aoxaud Iog Asn Total number of tool changer positions: 22

Condition: new, Year of construction: 2026, Suction nozzle diameter: 200 mm Isdpfx Agek Utq Ij Ajtn Maximum volume flow: 3200 m³/h Nominal volume flow: 2262 m³/h Volume flow monitoring: differential pressure indicator Vacuum: 2250 Pa Filter area: 16 m² Residual dust content: less than 0.1 mg/m³ Sound pressure level: 65 dB Chip collection bag volume: 320 l Filter cleaning: motorized Motor power: 4 kW Machine length: 2340 mm Machine width: 880 mm Machine height: 2190 mm Weight: 570 kg

Condition: used, Year of construction: 2023, machine/vehicle number: 200617, functionality: fully functional, Dear customers, To ensure fast and reliable processing of your request, we kindly ask you to contact us preferably by email. This will allow us to assign your request directly to the appropriate contact person, collect all information and documents completely, and process your request as quickly as possible. We look forward to hearing from you and are happy to assist you! Technical data can be found on the nameplate. Available: immediately, the customer will receive a larger unit. Iedey Hz Upepfx Ag Astn Serial number: 200617 Riedex DM-200/M-B Dust collector Left-hand version, motorized cleaning, with chip container.

Condition: new, Panel swivel cart new suitable for Fimal Concept 350 pressure beam panel saw complete including 4 swivel castors (2 lockable) 12 all-direction rollers and a foldable support table Availability: short-term Ijdow I U A Iepfx Ag Ajtn Location: Hochheim

Condition: new, Year of construction: 2025, Suction nozzle diameter: 200 mm Maximum flow rate: 3200 m³/h Nominal flow rate: 2262 m³/h Flow rate monitoring: Pressure differential indicator Valve pressure: 2250 pa Iodpev Sq Ttjfx Ag Aetn Filter area: 16 m² Residual dust content: less than 0.1 mg/m³ Sound pressure level: 65 dB Chip bag volume: 320 l Filter cleaning: pneumatic, jet cleaning Motor power: 4 kW Machine length: 2340 mm Machine width: 880 mm Machine height: 2190 mm Weight: 385 kg

Condition: used, Year of construction: 2012, - Machining area: 5300x1400 mm - Main spindle replaced 3 years ago - 18-position tool changer Technical data Machining area - In the X direction: 5300 mm - In the Y direction with main spindle + WZ-0: 20 mm: 1400 mm - In the Y direction with drilling unit: (all vertical drills) 890 mm - Single-position machining: X = 2 x 2550 mm - Free space in the center: X = 200 mm - Alternating field machining: X = 2 x 2250 mm - Free space in the center: 800 mm 1 automatic tool/adapter changer magazine - Arrangement: mounted on the support, moving in the X direction Isdpfxszuw Rte Ag Aetn - Disc changer with 18 magazine positions Guidance system - All axes are equipped with pre-tensioned, surface-hardened precision roller guides. Central lubrication - Manual central lubrication for all main axis linear guides and Z ball screw. 1 vacuum pump, 90 m3/h Console table consisting of: - 2 work piece stops fixed on the right and 2 on the left in the X direction, for movement in the Y direction - 10 adjustable support arms in the X direction, each with a rear stop - All stops are controlled by the program - The suction plates are fixed via the patented 2-circuit clamping system, eliminating the need for hoses. - 8 smooth support rails, automatically retractable - 2 push buttons for the workpiece clamping/releasing function Additional 2nd vacuum pump, 90 m3/h 1 additional central stop row, for centering workpieces Chip conveyor 1 main spindle - Drive power: 10.0 kW in S-6 operation - 7.5 kW in S-1 operation - Tool holder: HSK F63, taper diameter = 38 mm, similar to DIN 69893 - Speed range: infinitely variable RPM, programmable 1 centrally integrated CNC axis, rotating 360 degrees - for all adapter units, with torque support on the main spindle and pneumatic interface 1 vertical drilling unit l14 with 6 spindles, horizontal and attachment unit for a dado cutter - Horizontal drilling units with 2 outputs each Attachment unit for a dado cutter - Swivel range: 0 or 90° Control system ICOS CNC Modern, powerful PC-based control system with: - User-friendly interface with Windows standards - Trajectory control of all servo axes - Job list / order processing - IMA backup and recovery system on two hard drives - Uninterruptible power supply (UPS) IMAWOP software package - for dialog-oriented creation of CNC machining programs - - 3D view and basic simulation of the programmed workpiece, the suction cups and consoles including tool and adapter display.
