Winding machine

ROBOPAC COMPACTA 4

Technical Description
The ROBOPAC COMPACTA 4 is a manually operated horizontal wrapping machine with a rotating ring designed for spiral wrapping of elongated products using stretch film (horizontal wrapping machine, stretch wrapper). The machine is equipped with a belt-driven, one-piece cast aluminum rotating ring mounted on heavy-duty rollers to ensure smooth and consistent rotation. The integrated tensioning and cutting system enables automated wrapping cycles, while the mechanical film carriage with dancer system guarantees optimal film pre-stretch. This machine is particularly well-suited for flexible use with a wide variety of workpieces.

Technical Data
Rated voltage: 230 V
Frequency: 50/60 Hz
Phases: 1Ph+N
Installed power: 0.55 kW
Max. ring speed: approx. 150 rpm
Operating pressure: approx. 6 ±1 bar
Compressed air consumption: approx. 1.8 NI/cycle
Film width: 50–125 mm
Max. reel diameter: 200 mm
Core diameter: 76 mm
Min. workpiece size: approx. 50 × 50 mm

Weight
approx. 250–350 kg

Dimensions
approx. L × W × H = 1010 × 1234 × 1340 mm

Intended Use
For wrapping long goods such as wooden slats, profiles, aluminum parts, plastic profiles, or bundled goods in the packaging lines of the wood and plastics industries.

Condition
Kwsdpjywn Nuefx Agdew

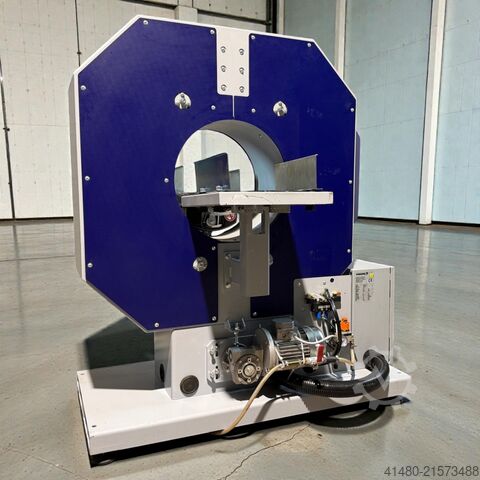

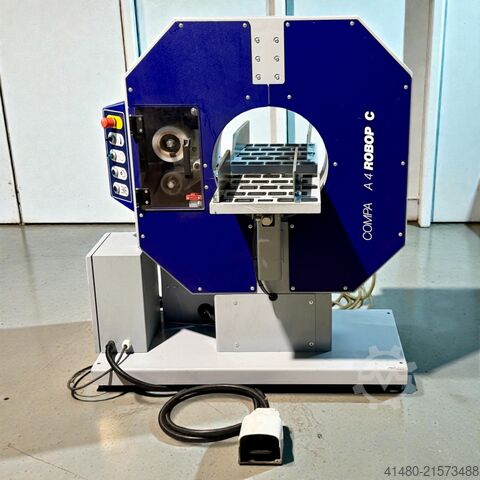

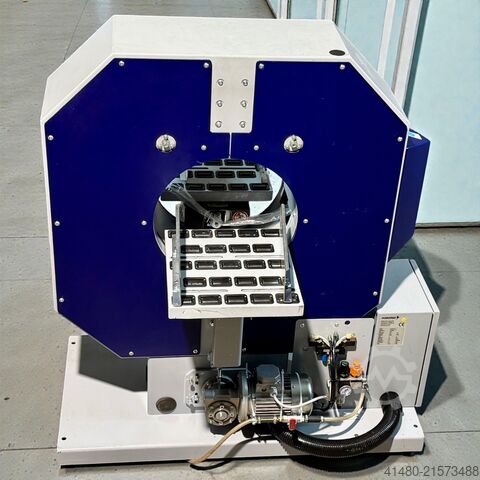

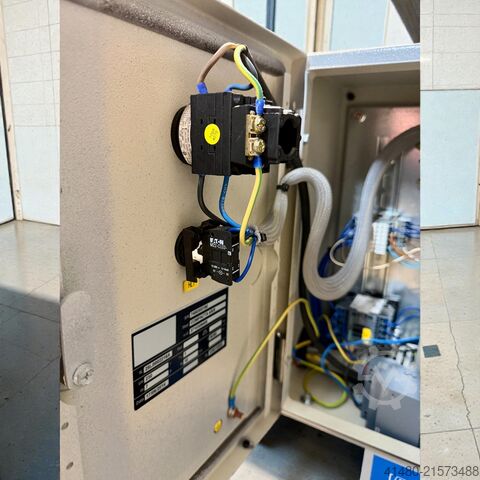

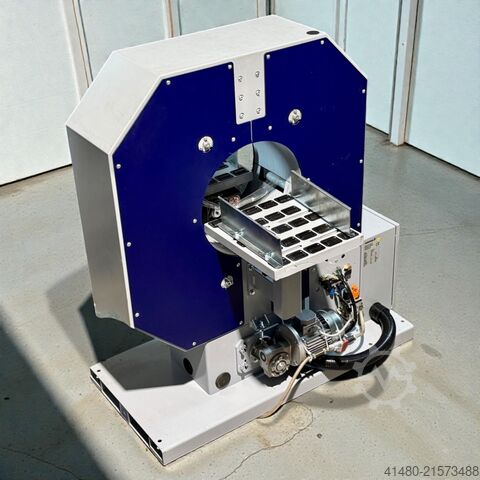

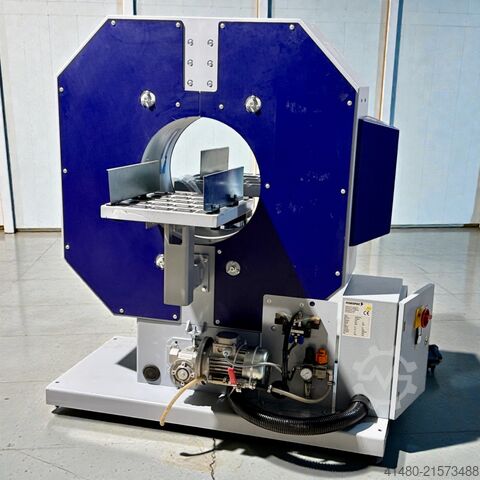

Used – tested and fully functional, signs of use as shown in the photos.
