Bending machine

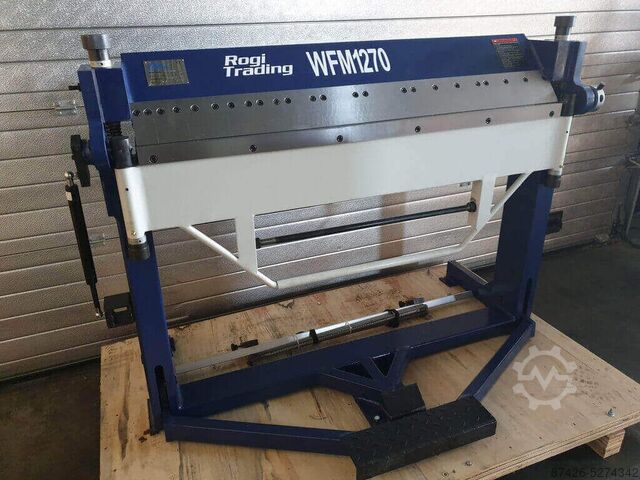

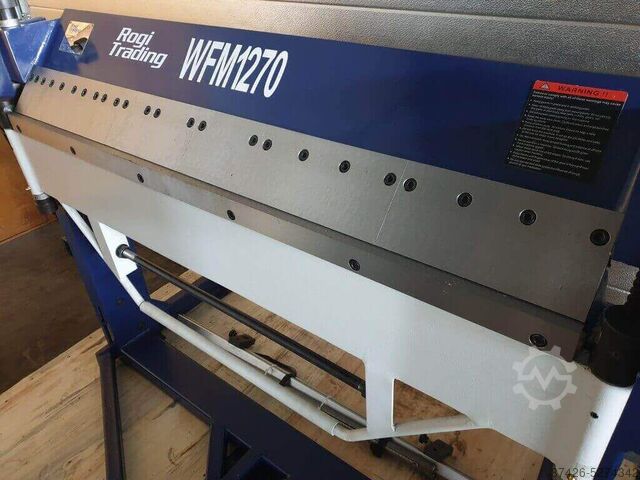

Rogi WFM1270

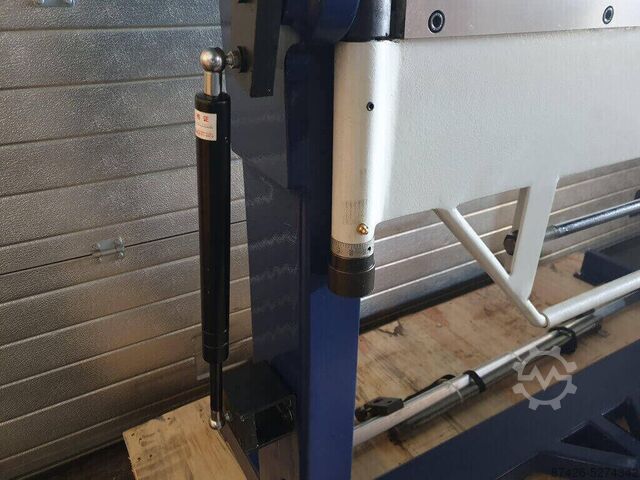

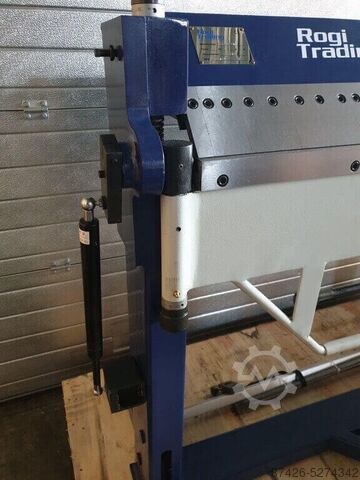

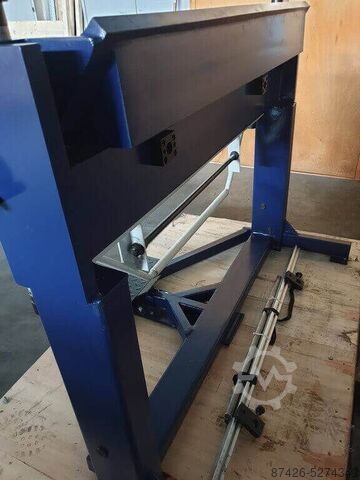

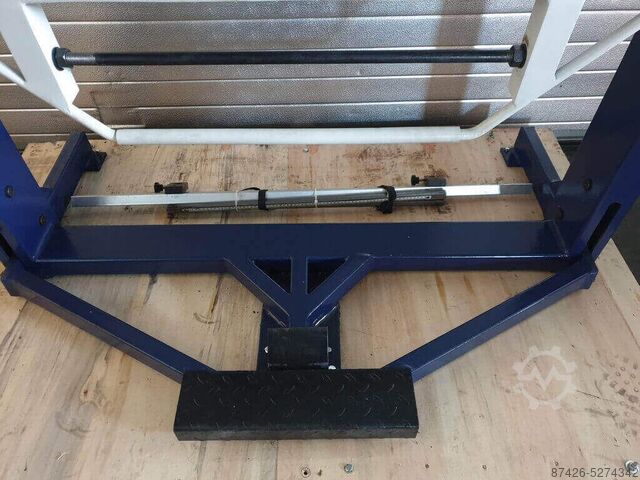

Condition: new, functionality: fully functional, Year of construction: 2024, control type: manual, working width: 1,270 mm, folding beam adjustment: 46 mm, bending angle (max.): 135 °, sheet thickness (max.): 2 mm, back gauge adjustment: manual, back gauge: 760 mm, overall weight: 380 kg, total length: 1,600 mm, total width: 850 mm, total height: 1,175 mm, Equipment: documentation/manual, Top and bottom blades removable in segments Includes manual backstop PNEUMATIC CYLINDER!!! Max. bending capacity over the entire working length ----- 2 mm Max. working length ----- 1270 mm Max. opening width ----- 46 mm Width of the fingers ----- 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 150 | 200 | 250 | 275 mm Nsdpjga T A Ijfx Agrslg Max. bending angle ----- 0 - 135 degrees Weight ----- 380 KG Width ----- 1600 mm Depth ----- 850 mm Height ----- 1175 mm

Condition: new, Year of construction: 2025, Delivery every Monday/Tuesday! Reliable! Mobile folding bench 1400/2.0mm without roller shears We are your partner when it comes to sheet metal working machines. Our claim to ourselves is to provide high-quality and reliable work in order to more than meet your requirements! We are only so successful because we put our heart and soul into our work! Technical specifications the maximum working length 1400 mm the max. thickness of steel sheet for 2.0mm bending beam 24 mm the weight of the handheld machine is about 190 kilograms lifting the top beam in three layers The maximum clear width between the beams is 80 mm Delivery throughout Germany 165 euros Price: 1450 euros incl. transport rollers Delivery time: every week Nljdpfxsb Hqa Ej Agrog Cash on delivery The roller scissors (max. cutting capacity up to 0.8 mm / sheet steel) optionally cost 350 euros Manual folding machine costs 75 euros as an option The machine complies with CE guidelines and has a 12-month guarantee. We issue the invoices with 0% (intra-community delivery) as well as with 23%. We are looking forward to your contact!

Condition: new, functionality: fully functional, Year of construction: 2026, control type: manual, working width: 1,020 mm, folding beam adjustment: 46 mm, bending angle (max.): 135 °, overall weight: 340 kg, total length: 1,350 mm, total width: 850 mm, total height: 1,175 mm, Equipment: documentation/manual, Top and bottom blades removable in segments Nodpfoga T A Dsx Agrolg Includes manual backstop PNEUMATIC CYLINDER!!! Max. bending capacity over the entire working length ----- 2.5 mm Max. working length ----- 1020 mm Max. opening width ----- 46 mm Width of the fingers ----- 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 150 | 200 | 275 mm Max. bending angle ----- 0 - 135 degrees Weight ----- 340 KG Width ----- 1350 mm Depth ----- 850 mm Height ----- 1175 mm

Condition: new, sheet width 1020 mm plate thickness 2.5 mm daylight opening 48.0 mm daylight opening 150 mm ohne Segmente bending angle max. 0 - 135 ° work height max. 900 mm weight of the machine ca. 340 kg dimensions of the machine ca. 1350 x 820 x 1300 mm Furnishing: - Swivel bending machines with segm. Upper, lower and bending beam - Universally usable bending machine for sheet metal works and repair shops Nedpfxexaa E Ds Agrjlg - Robust construction in a modern design - Easy adjustment of the upper beam using a foot pedal - Hands are free for the workpiece - Manual bending machine for standard bending tasks - Segmented upper beam for a large number of bending possibilities - Optimum price-performance ratio - Quick and easy bending process using the bow handle - Non-slip rubber covering on the foot pedal for safe working - Easy adjustment of the lower beam to the respective sheet thickness - High upper beam for the production of high folded profiles Scope of delivery : - Segmented upper, lower and bending beam - manual backgauge - Corner segment left / right each 75 mm | 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 |200 | 270 mm

Condition: good (used), Year of construction: 1990, 1 x L+Z Lathe Harrison M 250 Year of manufacture: approx. 1990 Well-maintained machine from a small toolmaking workshop. Technical specifications: Centre height: 145 mm Centre distance: 500 mm Swing over bed: 280 mm Spindle bore: 35 mm Spindle speeds: 80 - 3,000 rpm Feeds: longitudinal: 0.012 - 0.4 mm/rev cross: 0.006 - 0.2 mm/rev Tailstock: Taper: MK 3 Nlodpfx Asx Utc Iegrsg Accessories: 1 x 3-jaw chuck 125 mm UVA 1 x faceplate 1 x Multifix A quick-change toolpost with 4 tool holders 2 x revolving tailstocks 1 x fixed centre for tailstock 1 x fixed centre for spindle 1 x drill chuck 1 - 13 mm Operating manual in English Various turning tools Hand tools The machine can be inspected under power.

Condition: used, Year of construction: 2008, turning diameter over bed 320 mm turning diameter over slide rest 190 mm turning length 920 mm center height over bed 160 mm turning diameter in the gap 430 mm centre distance 920 mm bed width 181 mm Nlsdpjzzrdbofx Agrjg digital readout DPA 2000 3 Achsen spindle bore Ø 38 mm turning speed range 10 - 2.500 U/min power requirement 1,5 kW 3-jaw-chuck diameter 160 mm taper in tailstock-quill MK 3 dia. of quill 32 mm quill stroke 100 mm voltage 400 V weight of the machine ca. 410 kg dimensions of the machine ca. 1,60 x 0,70 x 1,55 m !!! ATTENTION !!! EXCELLENT CONDITION !!! This machine comes from a vocational school! - Serial No.: 832432 - 3-axis digital display DPA 2000 - Constant cutting speed - Stepless speed control - Digital speed display - RÖHM 3-jaw flat spiral chuck - Face plate Ø 255 mm - Fixed steady rest - Rotating steady rest - Machine light - Rotating center point

Condition: new, sheet width 1020 mm plate thickness 2,0 mm daylight opening 48 mm bending angle max. 0 - 135 ° work height max. 900 mm total power requirement von Hand kW weight of the machine ca. 285 kg dimensions of the machine ca. 1350 x 820 x 1140 mm Furnishing: - Segmented upper and bending beam for a wide variety of bending options - Clamping by means of a foot pedal - Hands remain free for optimal positioning of the sheet - Universally applicable bending machine for plumbing and repair shops - Robust construction in a modern design - Manual bending machine for standard bending tasks - Segmented upper beam for a large number of bending options Nlodjxaaufjpfx Agrog - Optimal price-performance ratio - Quick and easy bending process using a bow handle - Non-slip rubber coating on the foot pedal for safe working - Easy adjustment of the lower beam to the respective sheet thickness - High upper beam for producing high-edged profiles Scope of delivery : - Segmented upper cheek - Segmented lower cheek - manual backgauge - bending segments 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 150 | 200 | 270 mm

Condition: new, Year of construction: 2026, MDC1500/400 Metal Chip Extractor The MDC1500/400 metal chip extractor is an industrial machine designed for intensive use at grinding and welding stations, as well as wherever effective removal of metal chips and dust is required. This model provides high extraction performance, stable airflow and filtration adapted to the demanding conditions typical of metal production and processing. Key Advantages Two-stage filtration – quick, tool-free replacement of the two filter cartridges improves chip separation efficiency. High extraction performance – up to 2,200 m³/h without a bag, ensuring stable operation even when handling large quantities of metal chips. Mobile design – the compact wheeled housing makes it easy to move the unit between workstations. Large collection container – extends operating time without the need for frequent emptying. Dual suction inlet, 2 × 100 mm – allows two machines to be connected simultaneously. Design and Technology The MDC1500/400 is equipped with a high-performance motor operating at S1 100%: 1.5 kW and S6 40%: 2.1 kW, ensuring stable extraction performance even during extended operation. The 400 V / 50 Hz power supply provides reliable operation and consistent impeller performance. The dual-inlet system, 2 × 100 mm, enables efficient extraction from two sources. The optimised suction system design allows an airflow rate of up to 2,200 m³/h without a bag. When operating with a bag or hose, the extraction capacity is 1,500 m³/h, which is still fully sufficient for workstations generating large quantities of metal dust and chips. Precision and Performance The MDC1500/400 metal chip extractor has been developed to maintain a stable, linear airflow. Its robust housing minimises vibrations, while the precisely designed filtration system ensures optimal capture of dust generated during grinding, deburring and welding. As a result, the unit effectively helps keep the workstation clean and improves the working conditions for the operator. Applications The MDC1500/400 is a versatile, professional extraction unit for grinders and machining workstations operating in continuous-duty conditions. It is ideally suited for: grinding tables, welding tables, bench, belt and disc grinders, manual and mechanical processing workstations where metal chips and swarf are generated. Standard Equipment two filter cartridges, large container for metal chips and swarf, compact and mobile housing, dual suction inlet, 2 × 100 mm. Technical Data Parameter Specification Motor S1 100%: 1.5 kW; S6 40%: 2.1 kW Nlodpfjvuq Amex Agrsg Voltage 400 V / 50 Hz Suction inlets 2 × 100 mm Extraction capacity without bag 2,200 m³/h Extraction capacity with bag/hose 1,500 m³/h Dimensions 850 × 670 × 765 mm Weight 72 kg
