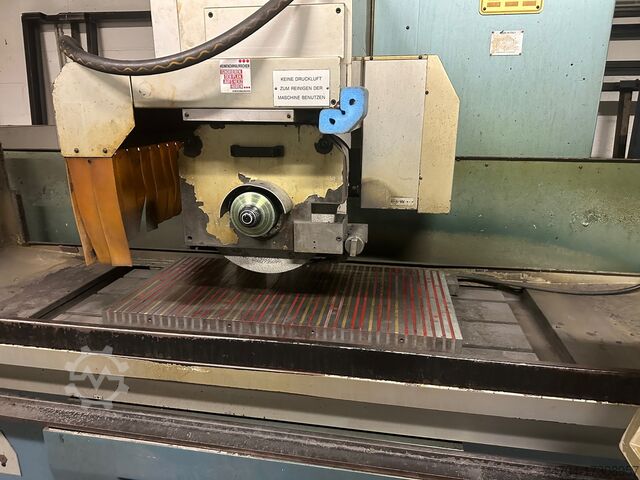

Surface Grinding Machine

ROSA ER 10

Condition: good (used), Year of construction: 1990, 1 used surface grinding machine make Rosa type ER 10 year of construction 1990 Technical data Travel 1000 x 600 mm Magnetic plate 1000 x 600 mm maximum sanding height 400 mm longitudinal speed 2-30 m/min Transverse speed infinitely variable 0-3 m/min Sanding spindle speed 1450 rpm Grinding wheel diameter 400 x 60 x 127 mm Grinding wheel motor power 7.4 KW Ledpfx Aeuuik Sjbzehc Dimensions 3900 x 20 50 x 2400 mm Weight 6 tons

Condition: good (used), Year of construction: 1992, Favretto MB 130 – Technical Specifications Machine type: tangential (horizontal) surface grinding machine Year of manufacture: 1992 Table size: 1700 × 400 mm Ljdpfx Abet Rwvzezehc Magnetic chuck size: approximately 1300 × 400 mm Magnetic plate height: 40 mm Longitudinal travel (X-axis): 1380 mm Cross travel (Y-axis): 450 mm Vertical travel (Z-axis): 550 mm Distance between spindle center and table surface: 203 mm (min) to 753 mm (max) Grinding wheel dimensions: 400 mm diameter × 152 mm width × 100 mm bore Spindle speed: approximately 1400 rpm Longitudinal feed rate: 2000 to 40000 mm/min Cross feed rate: 50 to 3000 mm/min Vertical feed rate: 700 mm/min Grinding head motor power: approximately 15 kW Total installed power: approximately 25 kW Maximum table load without magnetic chuck: approximately 1500 kg Maximum table load with magnetic chuck: approximately 1205 kg Overall grinding capacity (L × W × H): approximately 1500 × 600 × 550 mm Machine weight: approximately 7100 kg

Condition: used, Year of construction: 1990, grinding length 1500 mm grinding width 550 mm workpiece height 400/450 mm table-size 1900 x 450 mm mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub grinding wheel size 400 x 100 x 127 mm grinding spindle speed 1400/2800 U/min total power requirement 15 kW Lhsdpfx Abswlvirozoc voltage 380 V weight of the machine ca. 5 t Machine was reconditioned and modernized in 2015 with modern control. Machine has cooling arrangement, auto. vert. feed, dressing arrangement and wheel flanges.

Condition: used, Year of construction: 1992, grinding length 0800 mm grinding width 500 mm workpiece height 400 mm table-size 800 x 400 mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub Lhodpfx Aowgnz Ajbzoc grinding wheel size 400 x 100 x 127 mm grinding spindle speed 1400/2800 U/min total power requirement 10 kW voltage 380 V weight of the machine ca. 6 t Machine has cooling arrangement, auto. vert. feed, dressing arrangement and wheel flanges.

Condition: excellent (used), Automatic circular knife grinder Göckel model RB2 Lhodpfx Abox Hp Rrszjc
