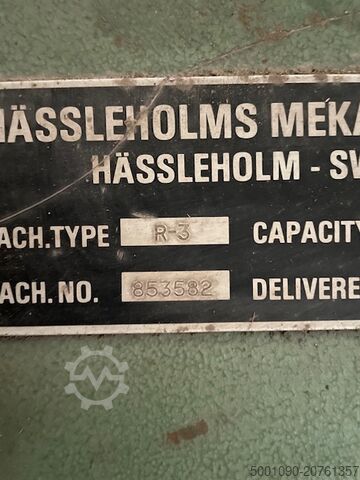

Section bending machine

Roundo R3

Condition: used, total length: 1,330 mm, total width: 1,040 mm, total height: 1,150 mm, Empty weight: 1.800 kg Price: On request - Documentation available: No - CE certificate present: No - Drive system: Conventional - Drive: Hydraulic - Vertical/Horizontal: Horizontal and vertical - Number of rolls [pcs.]: 3 - Number of driven rolls [pcs]: 3 - Shaft diameter [mm]: 75 - Top roll diameter [mm]: 225 - Capacity diameter round [mm]: 60 - Transport dimensions: 1330mm x 1040mm x 1150mm (l x w x h) - Transport weight [kg]: 1800kg - Transport packages [pcs.]: 1 Rjdpfx Aexuf Sljnpsw Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 1995, machine/vehicle number: 0540/98, functionality: fully functional, Manufacturing number: 0540/98. Year of manufacture: 1998 ,. Capacity: 400 tons. Stroke length: 300 mm. Stroke: 10-40 / min. Slide adjustment 300 mm. Installation height: 700 mm. The table measures 1600 x 1300 mm Net weight: 45 tons. Gable opening: 1600 mm. Exterior dimensions 2 x 3 x 6 meters. Control system MEAB. Rsdpfx Asicbbzonpsw Coil feeder / straightener iRON RNE 50B / 11. Decoiler iRON SA6000 max 700 mm.

Condition: good (used), Technical data: 2 hydraulically adjustable rollers 3 driven rollers Roller diameter: 225 mm Shaft diameter: 75 mm Round steel: diameter 50 mm Square steel: 45 x 45 mm Flat steel: 200 x 20 mm Angle steel: 75 x 15 mm Rjdpfoytyf Sex Anpow Bending speed: 7 m/min Motor power: 4 kW Machine can work horizontally or vertically Dimensions (L x W x H): approx. 1200 x 1100 x 1200 mm Weight: approx. 1.3 t Accessories: various tools The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are appropriate for its age; used machines are sold without any warranty.

Condition: new, functionality: fully functional, Year of construction: 2026, New three rolls angle roll Roundo R3 with tools, digital readout and remote control. Rjdpfx Anod N Ahdspjw

Condition: good (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 820 mm, controller manufacturer: Heidenhain, controller model: iTNC530, total height: 2,950 mm, total length: 6,000 mm, total width: 3,800 mm, table width: 900 mm, table length: 3,100 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 18,000 rpm, overall weight: 25,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 18,000 rpm, coolant supply: 40 bar, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, X-axis travel: 2500 mm Y-axis travel: 920 mm Z-axis travel: 820 mm Table size: 3100 x 900 mm Spindle nose: SK/ISO40 Spindle speeds: 20 - 18.000 rpm Toolchanger: 30 pockets Controller: Heidenhain iTNC 530 Featured with: - Chipconveyor - Cooling through spindle 40 Bar - ISO40 tools - Machine manuals Country of origin: Germany Motor power: 35 KW Redpjyac Tlefx Anpsw Machine LxWxH: 6000 x 3800 x 2950 mm Machine weight: 25.000 kg

Condition: used, CNC machining center BIESSE Rover C 6.50 CONF.2, year 2007 Working area: approx. 140 × 460 cm Machine dimensions: 300 × 650 cm Weight: approx. 6,100 kg Two working heads Rjdow Rpd Sspfx Anpjw Tool magazine: 22 positions Vertical drilling spindles: 28 pcs Horizontal drilling spindles: 12 pcs Price negotiable, available immediately. Price is without VAT.

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Redjtk It Sspfx Anpow Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: excellent (used), Wheeled loader FUCHS model: MHL340, complete with 5-tine rotating polyp grab. Year: 2002. Hours: approx. 15,000. Maximum lifting capacity: 10 tons. Weight: 25,000 kg. Reach: 13.50 m. Cab with pantograph lift. With stabilizer supports. Complete with documentation. Fitted with overhauled pump. Rodpfxeu Ecz To Anpjw

Condition: used, Swing Diameter Over Bed: 400 mm Swing Diameter Over Longitudinal Slide: 350 mm Distance Between Centers: 610 mm Travel Limit: 240 mm Suggested Workpiece Diameter: 200 mm Max Longitudinal Travel: 560 mm Machining Length: 550 mm Max Cross Travel: 40 mm + 120 mm Height of Spindle Axis from Floor: 1135 mm Programmable Spindle Speed Range: 40 to 4000 rpm Spindle Bore Diameter: 52 mm Spindle Interior Cone: MK 6 Slide/Bed Slope: 45/45° Turret Positions: 12 Tools Main Motor: 15 kW Control: Fanuc 6T Rodpfxoxg Nd Ae Anpew Equipped with: See photos

Condition: used, Year of construction: 2012, operating hours: 9,974 h, total height: 2,700 mm, total length: 7,700 mm, total width: 2,420 mm, Empty weight: 7.390 kg CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Including vacuum pump Capacity 250 m3/h Disassembled for transport Weight 7450kg - Details: Rsdpfewnhccox Anpsw - └ Description: Machine gives malfunction spindle - Year: 2012 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AA2/002032 - Operating hours: 9974 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 36 - System/software: SCM Maestro - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Capacity [m³/h]: 250 - CNC options: Offcut conveyor - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 - Transport dimensions: 7700mm x 2420mm x 2700mm (l x w x h) - Transport weight [kg]: 7390kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets
