Tool and Cutter Grinder
SAACKE UW I D

Fixed price plus VAT
€59,000
Year of construction
2007
Condition
Used
Location
Lüdenscheid Germany
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
Tool and Cutter Grinder SAACKE UW I D
more Images
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
SAACKE UW I D
Show map
Show images
Show map

Machine data

Machine type:
Tool and Cutter Grinder
Manufacturer:
SAACKE
Model:
UW I D
Year of construction:
2007
Condition:
excellent (used)

Price & Location

Fixed price plus VAT
€59,000
Location:
58513 Lüdenscheid Germany
Call

Details about the offer

Listing ID:
A204-42965
Update:
06.11.2025

Description

5 controlled axes: X, Y, Z, A, and B
Fully automatic grinding wheel changer
NUM Axium Power 1050 control system with PC

TOOL DATA
Max. diameter: Ø 250 mm
Max. diameter for complete machining: Ø 250 mm
Max. length for complete machining (from front edge of workpiece support): 430 mm
Max. tool length between centers: 480 mm

Center height: 195 mm
X-axis grinding travel: 625 mm
Z-axis cross slide travel: 305 mm
Y-axis vertical slide travel: 305 mm

All linear axes are driven by high-precision ball screw spindles with 2 preloaded nuts. The axes are guided on extremely robust recirculating roller shoes on hardened rails.

GRINDING HEAD, B AXIS
Swiveling range in the horizontal plane: 240°
Rotational speed: 120°/s
Liquid-cooled motor spindle: 150 x 150 mm
Grinding wheel mount with automatic quick-clamping system HSK - C/E 50
Spindle speed infinitely variable: 2,000 - 10,000 rpm
Max. grinding wheel diameter: 150 mm
Grinding wheel changer with 4 magazine slots
Second probe arranged on the workpiece holder for automatic grinding wheel measurement, including software

CHAIN LOADING MAGAZINE with PICK-UP arm
Capacity: 160 tools
Maximum workpiece diameter: 32 mm
Maximum workpiece length: 200 mm
Maximum tool weight: 2.5 kg

CNC-controlled steady rest

TURBO separator (filter system)
Iedext N Izepfx Ad Dotp

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2002

168 listings online

Trustseal Icon
Call

Send inquiry

Countryus
Germany
Austria
Switzerland
United States
United Kingdom
France
Belgium
Spain
Mexico
Italy
Netherlands
Poland
Russian Federation
Belarus
Ukraine
Estonia
Turkey
New Zealand
Ireland
Czech Republic
Denmark
Finland
Sweden
Norway
Luxembourg
Greece
Lithuania
Latvia
Iceland
Portugal
Brazil
Venezuela
Argentina
Hungary
Slovakia
Romania
Moldova
Slovenia
Serbia
Montenegro
Albania
Croatia
Bulgaria
Macedonia
Bosnia and Herzegovina
Israel
Egypt
Morocco
India
Indonesia
South Korea
Japan
Thailand
Malaysia
Vietnam
China
Taiwan
Iran
Bangladesh
Note: Your inquiry will be forwarded to all sellers in this machine category. This allows you to receive a large number of offers.
The inquiry could not be sent. Please try again later.
Privacy statement

Telephone & Fax

+49 2351 ... show
Fax:
These listings may also fit your interest.
Listing
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
Coat grinder Rollomatic NP4
more images
Hungary Tiszavasvári
8,703 km
Coat grinder
RollomaticNP4
Call
Condition: good (used), Year of construction: 2007, functionality: fully functional, Rollomatic NP 4 cylindrical grinding machine in good condition for sale Itodsw Sgqxepfx Ad Dsp
See details
Listing
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
CNC Tool Grinding Machine Saacke UWIID
more images
Germany Germany
7,870 km
CNC Tool Grinding Machine
SaackeUWIID
Call
Year of construction: 2000, condition: ready for operation (used), A Saacke CNC tool grinding machine including a Felsomat tool loader is available. Center height: 170mm, travel X: 580mm, feed X: 20m/min, table dimensions X/Y: 980mm/185mm, travel Z: 250mm, feed Z: 20m/min, travel Y: 250mm, feed Y: 10m/min. B-axis horizontal swivel: 240°, swivel speed: 120°/s, motor spindle diameter: 170mm, speed: 10000rpm, torque: 10.7Nm. Tool positions: 24, tool holder: HSK-C50, A-axis indexing accuracy: +/-15°, error at 100mm diameter: 8µm, workpiece holder: ISO 50, speed: 50rpm. Control: NUMROTOplus V.3.8.3m, resolution X/Y/Z: 0.0001mm, resolution A/B: 0.0001°. Includes Felsomat Robotal RE 01 loading unit with rotary indexing table, FB703 small extinguishing system, and Brinkmann FBS-238/50 screw spindle pump. Documentation available. An on-site inspection is possible. Itedpfx Adexdm Ugj Dep
See details
Listing
Tool grinder PCD/PCBN/CVD/MCD OPMT Orginal Point 5X series
Tool grinder PCD/PCBN/CVD/MCD OPMT Orginal Point 5X series
more images
Turkey Turkey
9,780 km
Tool grinder PCD/PCBN/CVD/MCD
OPMT Orginal Point5X series
Call
Condition: new, Year of construction: 2025, functionality: fully functional, The 5-axis laser cutting system from the OPMT brand is a high-tech solution developed especially for the production and re-sharpening of PCD (diamond) and hard metal cutting tools. Thanks to laser processing, high surface quality is achieved without contact, while tool life and precision are significantly increased. The LTR-5AX model is suitable for both mass production and special tool processing needs with its robotic loading option and user-friendly software interface. It is especially recommended for companies processing wood, aluminum and composite materials. Ijdpfxswr Tiis Ad Dotp The machine is offered in Turkey with the CoreCut guarantee, and installation, training and service support are provided locally. The system, developed by the joint engineering of Joerg and OPMT, is actively used by many manufacturers in Europe. Delivery time: 8–12 weeks Warranty: 1 year Condition: New Price: On request For more information or to get a quote, you can contact us: Emre Özkan – CoreCut
See details
Listing
2000 Saacke UW 1 C Saacke UW 1 C
2000 Saacke UW 1 C Saacke UW 1 C
2000 Saacke UW 1 C Saacke UW 1 C
2000 Saacke UW 1 C Saacke UW 1 C
2000 Saacke UW 1 C Saacke UW 1 C
2000 Saacke UW 1 C Saacke UW 1 C
more images
Germany Cloppenburg
7,629 km
2000 Saacke UW 1 C
SaackeUW 1 C
Certified Dealer
Call
Condition: used, Year of construction: 2000, Suitable for manual and automatic grinding of all types of wood and metal milling cutters. Accesories: Motorized height adjustment of the grinding head Optical measuring microscope with camera Stepless grinding spindle drive Itsdexd S Hzjpfx Ad Dsp 1 grinding wheel protective cover Length measuring system with digital display 5 grinding wheel holders. Workpiece diameter: Max. 240 mm Manual/motorized grinding stroke: Max. 200 mm Workpiece carrier mounting hole: 32 mm Transverse adjustment of the workpiece carrier: 150 mm Cross adjustment grinding head: 80 mm Quick adjustment grinding head: 850 mm Height adjustment grinding head: 320 mm Grinding wheel diameter: 175x20mm max Grinding spindle speed stepless: from 2000 - 10,000 rpm, Connected load approx.: 3.0kW (400V/50Hz) Dimensions W x D x H =: 1300 x 1400 x 1870 mm Weight approx.: 800 kg colour: light grey RAL 7035
See details
Listing
Surface grinder Rollomatic NP4
Surface grinder Rollomatic NP4
Surface grinder Rollomatic NP4
Surface grinder Rollomatic NP4
more images
Hungary Tiszavasvári
8,703 km
Surface grinder
RollomaticNP4
Call
Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, Rollomatic NP 4 cylindrical grinding machine for sale! Itsdoxpv T Aepfx Ad Djp
See details
Listing
Tool grinder, cnc tool sharpening Schütte WU305L
Tool grinder, cnc tool sharpening Schütte WU305L
Tool grinder, cnc tool sharpening Schütte WU305L
Tool grinder, cnc tool sharpening Schütte WU305L
more images
Turkey Turkey
9,780 km
Tool grinder, cnc tool sharpening
SchütteWU305L
€50,000
EXW ONO plus VAT
Call
Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, spindle speed (min.): 12,000 rpm, power: 12 kW (16.32 HP), warranty duration: 6 months, Our machine is completely Liner-moving, machine maintenance has been done, we give 6 months warranty for the machine. Installation and training will be done by our company. Features X/Y/X linear motor A/C torque motor Glass rulers Haidenhein 5-piece stone change Eco robot (active) 400 mm helix opening feature Iodpfx Ajw Rpfvjd Djtp All sizes of GunDrill can be connected and sharpened. 3D cutting tool simulation is available.
See details
Listing

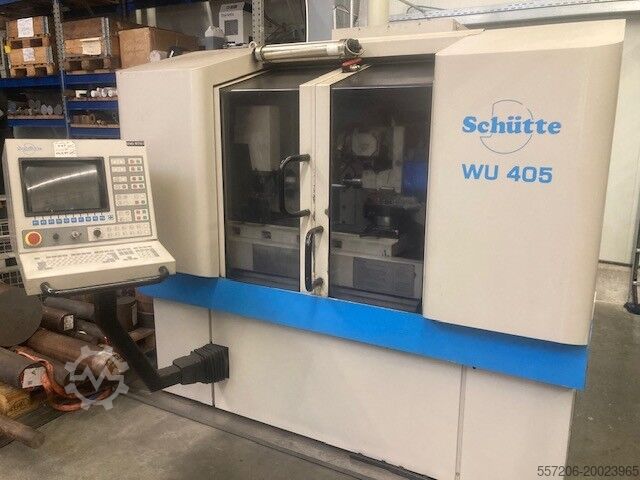

Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
Tool and Cutter Grinder Schütte WU 405
more images
Germany Bogen
8,146 km
Tool and Cutter Grinder
SchütteWU 405
€13,000
ONO plus VAT
Call
Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, Schütte WU 405 tool grinding machine, Itsdpfoxdcy Sox Ad Djp • Year of manufacture: 1997 • Travel X/Y/Z: 540/280/260 mm • Annual maintenance performed, • NUM control system, • automatic measuring probe, • including belt filter system, • including all original circuit diagrams and documentation
See details
Listing
Tool grinding machine DAS ShapeSmart N8
Tool grinding machine DAS ShapeSmart N8
Tool grinding machine DAS ShapeSmart N8
more images
Switzerland Payerne
7,939 km
Tool grinding machine
DASShapeSmart N8
Call
Condition: new, Year of construction: 2025, functionality: fully functional, Technical description: see attached images Itodsxwyb Hjpfx Ad Dep
See details
Listing

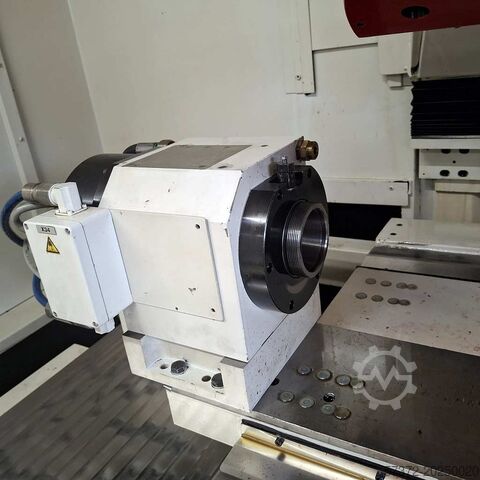

CNC Universal Grinding Machine Saacke UW II D
