CNC Universal Grinding Machine

Saacke UW II D

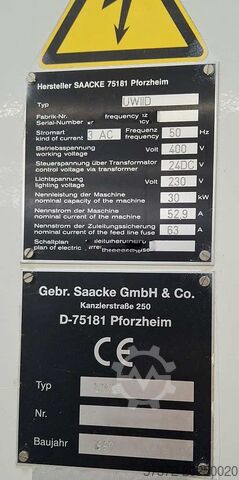

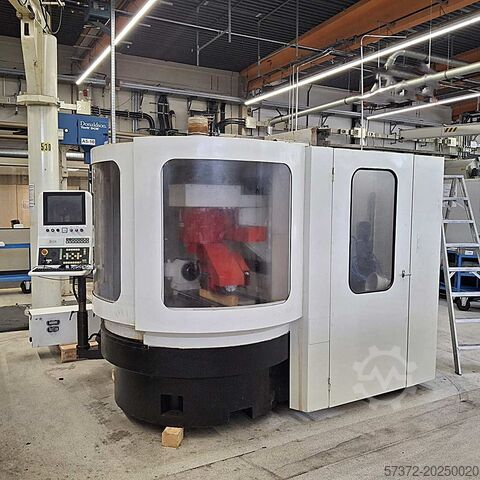

Year of construction: 1997, condition: ready for operation (used), Main Drive Number of axis 5 This 5-axis SAACKE UWIID grinding machine was manufactured in 1997. It operates on a 3 AC current type, with a frequency of 50 Hz and an operating voltage of 400 V. The machine features a rated power of 30 kW and a rated current of 52.9 A. Consider the opportunity to buy this SAACKE UWIID grinding machine. Contact us for more information. Fpodpfx Afexmbz Hepon Application Types Grinding

Year of construction: 2000, condition: ready for operation (used), A Saacke CNC tool grinding machine including a Felsomat tool loader is available. Center height: 170mm, travel X: 580mm, feed X: 20m/min, table dimensions X/Y: 980mm/185mm, travel Z: 250mm, feed Z: 20m/min, travel Y: 250mm, feed Y: 10m/min. B-axis horizontal swivel: 240°, swivel speed: 120°/s, motor spindle diameter: 170mm, speed: 10000rpm, torque: 10.7Nm. Tool positions: 24, tool holder: HSK-C50, A-axis indexing accuracy: +/-15°, error at 100mm diameter: 8µm, workpiece holder: ISO 50, speed: 50rpm. Control: NUMROTOplus V.3.8.3m, resolution X/Y/Z: 0.0001mm, resolution A/B: 0.0001°. Includes Felsomat Robotal RE 01 loading unit with rotary indexing table, FB703 small extinguishing system, and Brinkmann FBS-238/50 screw spindle pump. Documentation available. An on-site inspection is possible. Fpedpsxdm Ugofx Afpsn
