Cylindrical Grinding Machine

SAACKE UWIID

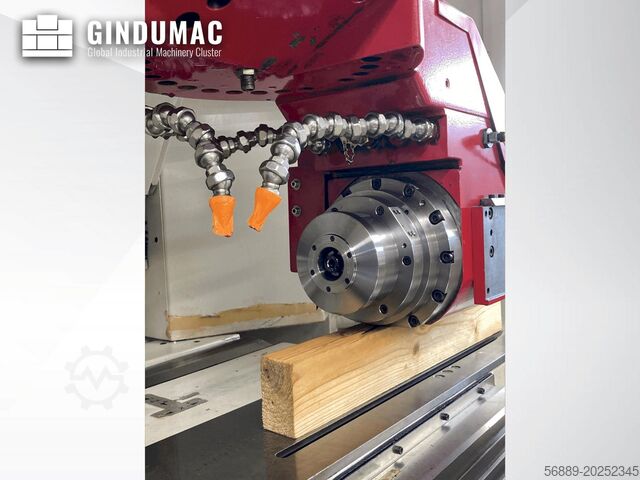

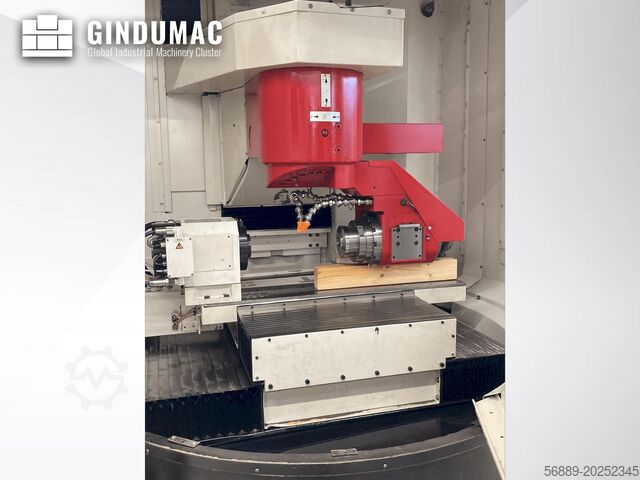

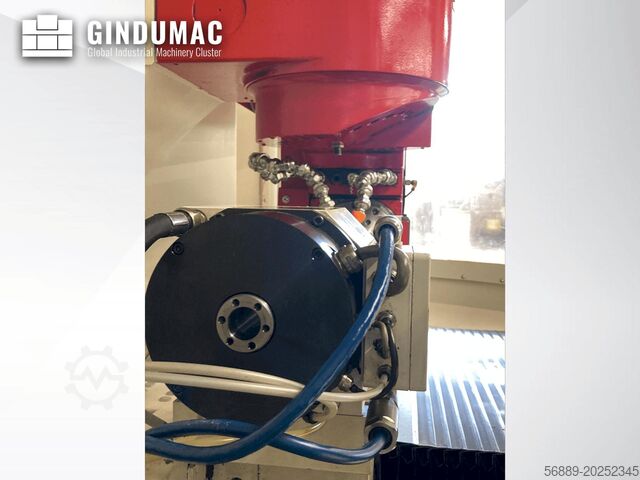

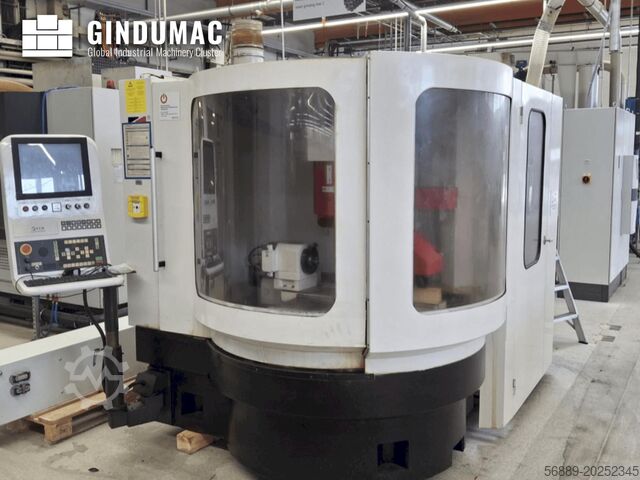

Year of construction: 1997, condition: ready for operation (used), Axes: 5, travel X/Y/Z: 580mm/250mm/250mm, center height: 170mm, workpiece holder: ISO50, tool holder: HSK, max. workpiece diameter: 250mm, max. workpiece length: 430mm, feed rate: 15m/min, rated power: 30kW, weight: approx. 6400kg. An on-site inspection is possible. Psdpfjxl Uqfjx Agqsgw

Condition: new, Year of construction: 2025, functionality: fully functional, The 5-axis laser cutting system from the OPMT brand is a high-tech solution developed especially for the production and re-sharpening of PCD (diamond) and hard metal cutting tools. Thanks to laser processing, high surface quality is achieved without contact, while tool life and precision are significantly increased. The LTR-5AX model is suitable for both mass production and special tool processing needs with its robotic loading option and user-friendly software interface. It is especially recommended for companies processing wood, aluminum and composite materials. The machine is offered in Turkey with the CoreCut guarantee, and installation, training and service support are provided locally. The system, developed by the joint engineering of Joerg and OPMT, is actively used by many manufacturers in Europe. Delivery time: 8–12 weeks Warranty: 1 year Condition: New Price: On request For more information or to get a quote, you can contact us: Pjdpfx Aowr Tiisgqsgw Emre Özkan – CoreCut

Year of construction: 2000, condition: ready for operation (used), A Saacke CNC tool grinding machine including a Felsomat tool loader is available. Center height: 170mm, travel X: 580mm, feed X: 20m/min, table dimensions X/Y: 980mm/185mm, travel Z: 250mm, feed Z: 20m/min, travel Y: 250mm, feed Y: 10m/min. B-axis horizontal swivel: 240°, swivel speed: 120°/s, motor spindle diameter: 170mm, speed: 10000rpm, torque: 10.7Nm. Tool positions: 24, tool holder: HSK-C50, A-axis indexing accuracy: +/-15°, error at 100mm diameter: 8µm, workpiece holder: ISO 50, speed: 50rpm. Control: NUMROTOplus V.3.8.3m, resolution X/Y/Z: 0.0001mm, resolution A/B: 0.0001°. Includes Felsomat Robotal RE 01 loading unit with rotary indexing table, FB703 small extinguishing system, and Brinkmann FBS-238/50 screw spindle pump. Documentation available. An on-site inspection is possible. Pjdpfx Agexdm Ugjqogw

Condition: used, Year of construction: 2000, Suitable for manual and automatic grinding of all types of wood and metal milling cutters. Accesories: Motorized height adjustment of the grinding head Pedpfx Asxd S Hzegqjgw Optical measuring microscope with camera Stepless grinding spindle drive 1 grinding wheel protective cover Length measuring system with digital display 5 grinding wheel holders. Workpiece diameter: Max. 240 mm Manual/motorized grinding stroke: Max. 200 mm Workpiece carrier mounting hole: 32 mm Transverse adjustment of the workpiece carrier: 150 mm Cross adjustment grinding head: 80 mm Quick adjustment grinding head: 850 mm Height adjustment grinding head: 320 mm Grinding wheel diameter: 175x20mm max Grinding spindle speed stepless: from 2000 - 10,000 rpm, Connected load approx.: 3.0kW (400V/50Hz) Dimensions W x D x H =: 1300 x 1400 x 1870 mm Weight approx.: 800 kg colour: light grey RAL 7035

Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, spindle speed (min.): 12,000 rpm, power: 12 kW (16.32 HP), warranty duration: 6 months, Our machine is completely Liner-moving, machine maintenance has been done, we give 6 months warranty for the machine. Installation and training will be done by our company. Features X/Y/X linear motor A/C torque motor Glass rulers Haidenhein 5-piece stone change Eco robot (active) 400 mm helix opening feature Pgsdpfx Agow Rpfveqjw All sizes of GunDrill can be connected and sharpened. 3D cutting tool simulation is available.

Condition: excellent (used), Year of construction: 2007, 5 controlled axes: X, Y, Z, A, and B Fully automatic grinding wheel changer NUM Axium Power 1050 control system with PC TOOL DATA Max. diameter: Ø 250 mm Max. diameter for complete machining: Ø 250 mm Max. length for complete machining (from front edge of workpiece support): 430 mm Max. tool length between centers: 480 mm Center height: 195 mm X-axis grinding travel: 625 mm Z-axis cross slide travel: 305 mm Y-axis vertical slide travel: 305 mm Pgodpfx Agsxt N Izjqjw All linear axes are driven by high-precision ball screw spindles with 2 preloaded nuts. The axes are guided on extremely robust recirculating roller shoes on hardened rails. GRINDING HEAD, B AXIS Swiveling range in the horizontal plane: 240° Rotational speed: 120°/s Liquid-cooled motor spindle: 150 x 150 mm Grinding wheel mount with automatic quick-clamping system HSK - C/E 50 Spindle speed infinitely variable: 2,000 - 10,000 rpm Max. grinding wheel diameter: 150 mm Grinding wheel changer with 4 magazine slots Second probe arranged on the workpiece holder for automatic grinding wheel measurement, including software CHAIN LOADING MAGAZINE with PICK-UP arm Capacity: 160 tools Maximum workpiece diameter: 32 mm Maximum workpiece length: 200 mm Maximum tool weight: 2.5 kg CNC-controlled steady rest TURBO separator (filter system)

Condition: new, Year of construction: 2025, functionality: fully functional, Technical description: see attached images Pgodpfxoxwyb Hj Agqew

Year of construction: 2008, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 810190, Walter Helicheck Pro Measuring & Inspection Machine (CNC controlled) Made by Walter, model Helicheck Pro, s/n810190, year 2008 Description: A fully automated CNC measuring machine designed for high-precision, contactless measurement of complex tool geometries & grinding wheels. Specifications: • Tool Diameter Max 150 mm. • Tool Length Max 330mm. • Voltage: 220 volts 50/60 Hz • Dimensions w x d x h = 1446 x 1490 x 2050 mm, weight approx. 2,500 Kg. Accessories: • Calibration Arbor • Complete set of Manuals Software: • Vialogic (TIM) • Software P1 • Software P2 • Software P3 • Vialogic (Viascan) • Vialogic (Viafit) • Quickcheck Turbo Podpfx Ajxxm Icegqegw • DXF Generator • Quick Check Grinding Wheels • Quick Check Modular • QCM Open Interface • QCM Network • LCE100 Light Control Device Condition: • Excellent working condition • Currently in use being replaced with a new machine. Can be viewed under power. • We have all of the shipping bracket, so the machine will be safely secured for shipping & can be crated. • We can load at our facility for free.
