4 die - 4 blow transfer header

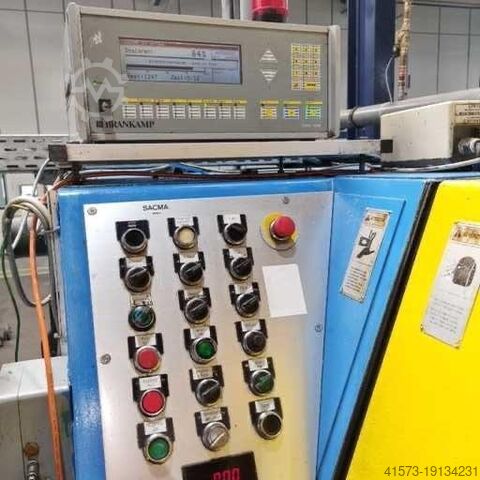

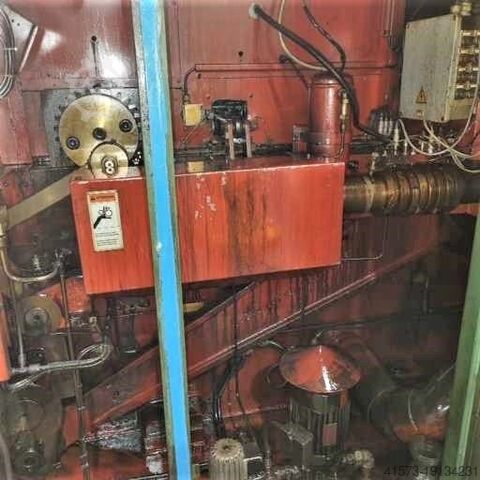

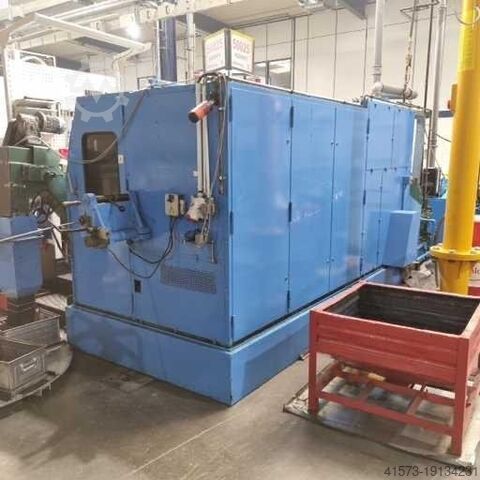

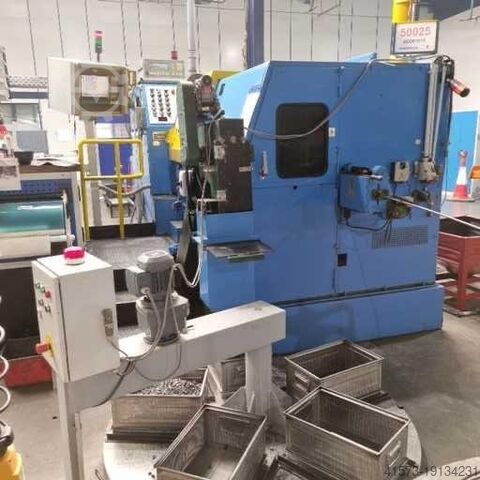

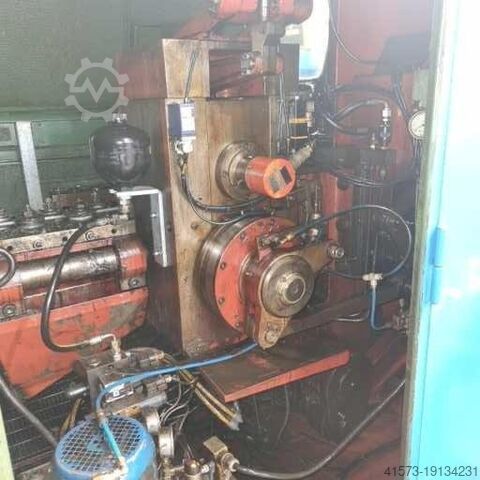

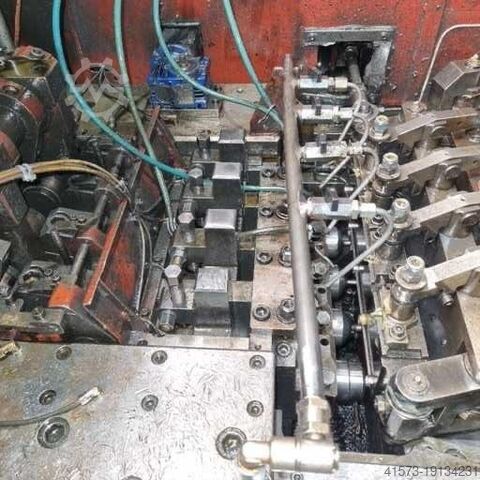

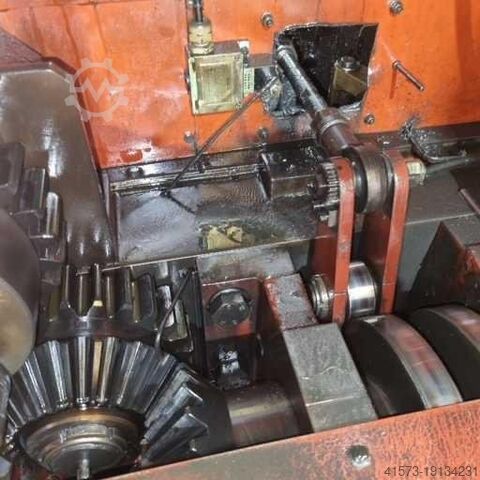

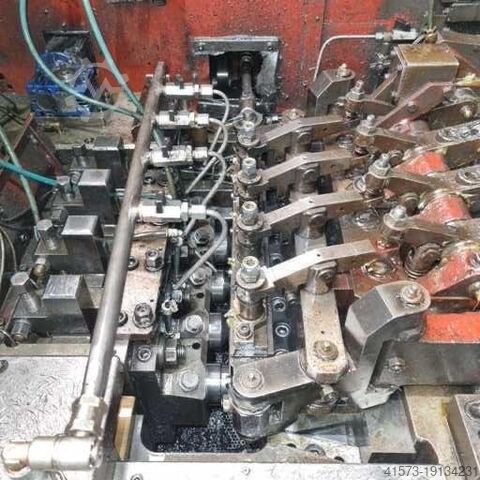

SACMA SP350M

Year of construction: 1988, condition: good (used), Carlo Salvi 1 die 2 blow Model 780/SV Maximum Cutoff dia.mm: 6,35 Kjdpfxehrdmxe Akwodt Max. Cutoff length mm: 97 Max. K.O. length (die side) mm: 80 Max. Speed, pcs, per minute: 360

Condition: ready for operation (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 817, Complete Cold Heading Line (includes 3 machines) Kdodpfx Akjtqu U Towet One Die Two Blow Header Max. Wire Cut-Off Diameter: 25 mm Cut-off length: 300 mm Shaft Length Under head: 260 mm Extrusion machine Trimming machine

Condition: used, Year of construction: 1981, National 2-3 Hot Former Kjdpfjwl Iw Usx Akwodt induction heater, feeder, straightener

Year of construction: 1984, condition: ready for operation (used), A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible. Kedpfx Aewkih Ejkwodt

Condition: refurbished (used), Year of construction: 2023, TRANSFER HEADERS SACMA SP22 2 DIE 2 BLOW Completely overhauled - Like new semi-tubular group installed Diam. 10x100 mm. Kdedpfxjpgw Ugs Akwet Machinetype: 2 die – 2 blow transfer header Diameter range: 10 mm. Number of dies: 2 Number of stations (incl. cut off): 3 Cutting length: 110 mm. Shaft length under head: 100 mm. Output – pieces/min: 170

Condition: good (used), Year of construction: 1997, machine/vehicle number: 24625, COLD HEADER CARLO SALVI 246/TR 2 Die 4 Blow Max. Cutoff Diameter: 8 mm Max. Cutoff Lenght: 75mm Max. K.O. Lenght First Die: 85 mm Kodpfxohn R E Is Akwedt Max. K.O. Lenght Second Die: 60 mm Max. K.O. Lenght (Punch Side): 10 mm

Condition: refurbished (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 28727, DOUBLE-STROKE HEADER NATIONAL 61MS operational Machinery operational, fully functional. Revised in 2024 (mechanical and electrical parts) Available for any test c/o HBR srl Number of die: 1 Number of punches: 2 Pieces per min.: 400 Cutoff diameter: 6 mm. Cutoff length (min./max.): 10/52 mm. Kickout stroke-die (min./max.): 4.8/30 mm. Kickout stroke-punch (max.): 9.5 mm. Upset diameter: 14 mm. Quill diameter: 19 mm. Kodpot Rp A Hofx Akwsdt Cutter insert diameter: 12 mm. Die diameter: 41 mm. Cone punch diameter: 32 mm. Finish punch diameter: 35 mm. Power of main motor: 15 KW Floor space (width): 1.340 mm. Floor space (length): 2.680 mm. Height: 1970 mm. Net weight: 4.700 kg. Gross weight: 5.400 kg.

Year of construction: 1995, condition: good (used), CHUN ZU CH-10LL DOUBLE STROKE HEADERS Max cut-off diam.: 10 mm. Max cut-off length of shank: 193 mm. Max shank length of blank: 153 mm. Speed: 70 ppm Complete with lots of tooling Kjdpfx Aolnll Ajkwsdt

Condition: used, Year of construction: 1996, core drilling diameter max. 25 mm bore depth 1000 mm swing diameter mm total power requirement 25 kW weight of the machine ca. 12,5 t dimensions of the machine ca. m T B T (Germany) CNC-Controlled Horizontal Deep Hole Drilling " Centre " Model BWP 250 Year 1996, but reconditioned mechanically and electrically in 2006 _____ Working range: X Axis, machine column cross 2,000 mm Z Axis, drilling slide horizontal 1,200 mm Drilling depth 1.000 mm Y Axis, drilling slide vertical 1,100 mm Table clamping area 1,200 x 2,000 mm Drilling capacity in solid material, approx. 4 - 25 mm Tool holder taper HSK 50 Spindle speeds 1.260 - 15,000 rpm Feed rates / quickfeed, XYZ, infinitely variable 100 - 10,000/15.000 mm/min. Force rate of feed motors 27 Nm / 1.000 daN Spindle drive steplessly adjustable 7 kW Total electrical load, approx. 30 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features: " Ideal machine for the complete processing of large workpieces like tool a. dies (cooling holes) mould- and dieplates, hydraulicparts etc. by means of deep hole drilling up to 25 x 1.000 mm, face milling up to Ø 60 mm, spiral twist drilling, counterboring and threading up to M 24 x 3 mm. Kdjdpet Hw Ayofx Akwjt " SIEMENS Continuous Path Control in 4 axes Model 840 D, with process monitoring for coolant pressure, operation data control function, toollife, feed force,Error diagnostics and easy dialogueprogramming directly on the panel, etc. " High Frequency Spindle Make GAMFIOR with stepless speeds " Hydraulically movable drill bush carrier, swivels 90° for holding gun drills (ELB) or picking up regular tools from the tool changer like twist drills, milling tools, taps, etc. " With automatic tool changer made by MIKSCH, Model CTM 40, using a 12-position tool changer, which is mounted on the r.h.side of machine housing, in fixed position, only moving forward and backward for tool changing operation. " Built-on indexing table as B-Axis made by FIBRO Model RTN 400 = 420 x 420 mm, " Extra Rotary Table made by FIBRO with Ø 1.000mm, for indexing 3-144 positions " Built-in coolant device with chip conveyor and various filters. " 2 steady rests. " Completely covered working area with access at the front and at the side. Condition : Very good condition. This is a rare and valuable machine. Under Power Delivery : immediately ex our Stock Payment : Net, after conclusion of contract.

Condition: good (used), Max Diameter: M6 Kdjdpfohtal Rex Akwst Max thread length: 42mm Max length of rods: 75mm Year: 80's
