Cross cut saw

SALVAMAC Legend 500

Condition: new, cutting width max. 310 mm Cutting height max. 125 mm Saw blade diameter 500 mm Motor output 5,5 kW Speed 2.800 U/min. Required air-pressure 6-8 bar Working height 900 +/- 20 mm Dimensions (L/W/H) 10645x1000x1300 mm SALVAMAC COMBO 500 – The semi-automatic miter saw with SALVASTOP 100 - electronic length stop/slider ----- - Pos. 1: Legend 500 under table miter saw Chsdevu Hd Topfx Abwsc ----- - Maximum cutting area: 220x125/ 260x100/285x80/310x50 mm. When cutting boards that are on top of each other, h max. 100 mm. The structure is made entirely of thick-walled and reinforced full-surface painted steel. Solid floor mounting system with flanged steel feet for the mounting hole. Bimanual safety cut control in ergonomic position. Motor power of the saw motor 5.5 kW. Adjustable cutting speed via a pneumatic controller. Maximum system for weight balancing and longevity. Shock absorbing system. Independent pneumatic adjustment options to adapt to different types of processing. Durable and easily replaceable saw blade adjustment bar. HM circular saw blade, diameter 500 mm, Z=108. Pneumatic upper workpiece clamping press with electro-pneumatic control. Presser movement system using new ball bearings with double dust protection and automatic lubrication system. CE compliant electrical system. The CE models must come standard with at least 1 meter long support plates at the inlet and outlet. Technical specifications: ----- Saw cross-section max. mm. 220x125, 260x100, 285x80, 310x50 Saw blade motor power: 5.5 kW Saw blade diameter: 500 mm Saw blade type: HM Z=108 Saw blade rotation speed: 2800 rpm Air consumption per cycle: 7 Nl Intake manifold: 1 - 120 mm / 1 - 100 mm Air pressure: 6 - 8 bar Voltage: V 400/50Hz 3-phase Worktop height: 900 mm +- 20 mm Colour: Ral 7035 - Ral 1007 Pos. 2: Salvastop 100 electronic length stop ----- - - Working method: 2 modes 1 x stop (length stop moves to the specified length) and 1 x slide (several lengths are processed one after the other at the push of a button) - with servo drive - Ram speed: up to 60 m/min - slider length 600 mm - with a 7'' touch display - maximum weight of logs that can be pushed - up to 100 kg - USB connection COMBO_500 - 6400/7000 - Roller conveyor with guide to the right of the saw. Painted steel frame with galvanized castors. Load capacity 230 kg, diameter 60 mm, spacing 250 mm, width 320 mm. 3 m. - 6400/7000 SalvaStop 100 to the left of the saw. Working length 6.4 m. Total length 7.0 m. With table top 7 m. Width 320 mm. Demonstration machine additionally equipped with: UP & DOWN FRONT PROTECTION Movable instead of rigid front protection. The guard rises during cutting to ensure safe working conditions. Loading and unloading wood is simplified with the downward-facing guard. The system has another special, secured pneumatic system with linear guidance, which impresses with top quality and cutting-edge technology. SOFTWARE LINK FILES Preparation for data import via a Salvamac file template in CSV format. ----- Total price demonstration machine from stock 73447 Oberkochen: on request! ----- More options like longer/shorter inlet/outlet, Stop systems on re...

Condition: used, Year of construction: 2025, Neue Ausstellungsmaschine! Partnership Edition, inkl.: - 1 Meter Rollenbahn rechts von der Säge, mit verzinkten Rollen. - 1 Meter Rollenbahn links von der Säge, mit verzinkten Rollen. - 1 Stück pneumatisch wegschwenkbarer Anschlag mit 200 mm Länge und Bedienschalter am Sägegestell SICHER - SOLIDE - SCHNELL Die kompakte, einfache, robuste und innovative Maschine garantiert maximale Sicherheit, Flexibilität und Zuverlässigkeit. Codow Tfzlepfx Abwohc Standardzubehör: - Automatische Schutz- und Andruckvorrichtung - Ergonomisch positionierte 2 Hand Steuerung - Schutzschild, starr Tragfähigkeit 230 kg, Durchmesser 60 mm, Abstand 250 mm, Breite 350 mm. Einschließlich hinteres 100 mm hohes Anschlaglineal. Tragfähigkeit 230 kg, Durchmesser 60 mm, Abstand 250 mm, Breite 350 mm. Einschließlich hinteres 100 mm hohes Anschlaglineal mit Skala. - 1 Stück HM Sägeblatt 500 mm, Z = 108 Technische Daten: Maximaler Schnittbereich: 220 x 125 / 260 x 100 / 285 x 80 / 310 x 50 mm Sägemotor: 5,5 kW Sägeblattdurchmesser: 500 mm Drehgeschwindigkeit: 2.800 U/min. Druckluft: max. 8 bar Luftverbrauch pro Zyklus: 5 Nl Absaugstutzen: 1 x 120 mm / 1 x 100 mm Spannung: 400 V / 50 Hz / 3 Ph. Arbeitshöhe: 900 mm +/- 20 mm Mindestabstand zwischen Anschlag und Sägeblatt: 70 mm Mindestabstand zwischen 2 Anschlägen: 60 mm

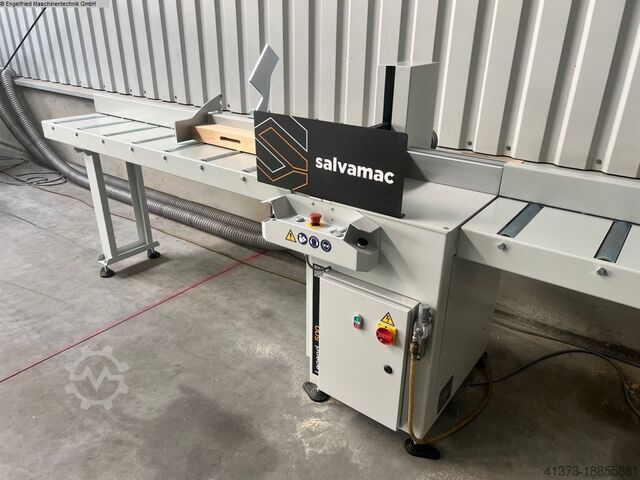

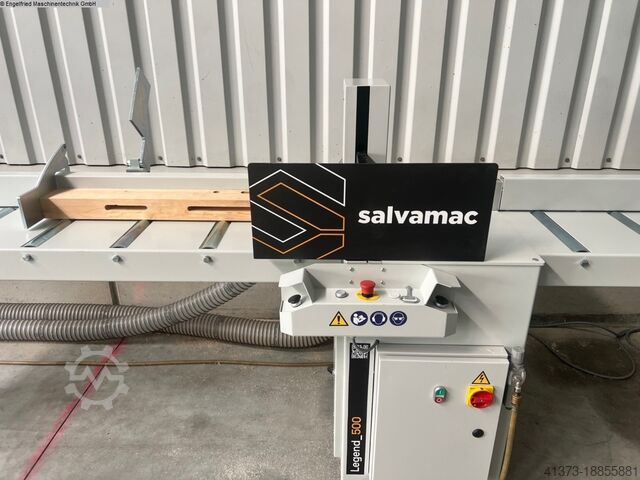

Condition: as good as new (ex-display), Year of construction: 2025, Semi-automatic under-table crosscut saw, including: - 2 meter roller conveyor to the left of the saw with 1 manual folding stop and 1 pneumatic folding stop - 2 meter roller conveyor to the right of the saw General Technical Data: Maximum cutting area: 220 x 125 / 260 x 100 / 285 x 80 / 310 x 50 mm Chedpfx Aew Rcibsbwec Saw motor: 5.5 kW Saw blade diameter: 500 mm (Z = 108) Rotational speed: 2,800 rpm Compressed air: max. 8 bar Extraction connectors: 1 x 120 mm / 1 x 100 mm Voltage: 400 V / 50 Hz / 3 Ph. Working height: 900 mm +/- 20 mm Standard equipment: Automatic protection and pressure device Two-hand operation and safety shield Carbide-tipped saw blade SAFE The ergonomically positioned two-hand control and safety guard around the saw blade ensure absolutely safe operation. Safe, protected, and reliable! ROBUST Legend saws are designed and built to work with challenging materials and hard wood even under tough conditions. The frame is made of thick-walled, fully reinforced and coated steel. Robust, compact, and durable. FAST Compared to a pull or radial arm saw, the LEGEND pneumatically guides the saw blade through the workpiece at extremely high speed. This significantly reduces the physical burden on the operator.

Condition: new, Semi-automatic miter saw SALVAMAC LEGEND 500 Cutting height max. 125mm Introductory special price Includes: - Semi-automatic miter saw SALVAMAC LEGEND 500 Cutting height max. 125mm SAFE - SOLID - FAST The compact, simple, robust and innovative machine guarantees maximum safety, flexibility and reliability. Standard accessories: - Automatic protection and pressure device - Ergonomically positioned 2-hand control - Protective shield, rigid - incl. HM saw blade 500 mm Z = 108 Technical data: Maximum cutting area: 220 x 125 / 260 x 100 / 285 x 80 / 310 x 50 mm Saw motor: 5.5 kW Saw blade diameter: 500 mm Rotation speed: 2,800 rpm. Compressed air: max. 8 bar Air consumption per cycle: 5 Nl Extraction nozzle: 1 x 120 mm / 1 x 100 mm Voltage: 400 V / 50 Hz / 3 Ph. Working height: 900 mm +/- 20 mm Minimum distance between stop (left side) and saw blade: 70 mm Minimum distance between stop (right side) and saw blade: 520 mm Minimum distance between 2 stops (optional): 60 mm Note: Basic price without roller conveyors. When setting up the saw, a support table or roller conveyor must be installed at least 1 m to the left and 1 m to the right of the saw. Included: - Roller conveyor without scale on the right, per meter Roller conveyor 320mm wide, with 100mm stop ruler and galvanized rollers, load capacity 230 kg, diameter 60 mm, distance 250 mm, right of the saw, price per meter Note: 1 m and 2 m long roller conveyors can be retrofitted. Include: - Roller conveyor with stop ruler and scale on the left, per meter Roller conveyor 320mm wide, with 100mm stop ruler and galvanized rollers, Cjdpfx Abevtrkijwshc load capacity 230 kg, diameter 60 mm, distance 250 mm, right of the saw, price per meter Note: The stop must be ordered separately. 1 m and 2 m long roller conveyors can be retrofitted. Include: - Pneumatically pivoting stop with 200 mm length - new exhibition machine -

Condition: new, Year of construction: 2025, The most appreciated solution. The Legend_500 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 500 mm, the power of 5.5 kW and the rotation speed of 2800 rpm make it the ideal machine for those who work with wood up to a maximum of 125 mm thick and 310 mm wide (optional up to 375 mm). Cedpfx Aeuii Rgobwjhc

Condition: used, cutting width max. 375 mm Cutting height max. 125 mm Saw blade diameter 500 mm Motor output 5,5 kW turning speeds 2800 U/min Required air-pressure 6-8 bar Dimensions (L/W/H) 530x869x1217 mm SALVAMAC Legend 500 fast semi-automatic chop saw ----- - Maximum cutting area Option A: 220x125/310x50mm Option B: 350x80/375x50mm (When sawing stacked boards, note: rear stop height 100 mm) The structure is made entirely of sturdy, thick-walled steel, which is painted throughout and reinforced. A solid one Floor mounting system is equipped with flanged steel feet, to ensure secure attachment. The two-hand control is ergonomically positioned for comfort and efficient operation. Engine power of the saw motor 5.5 kW. The cutting speed is adjustable via a pneumatic controller, to enable precise adjustment. The system also has a Shock-absorbing system to minimize vibrations and ensure worker safety to improve. HM circular saw blade, diameter 500 mm, Z=108. The upper pressure hood has an electro-pneumatic control for Csdpevnv U Ijfx Abwjhc precise operation. The pressure hood movement system is innovative Ball bearings operated with double dust protection and automatic lubrication system, which ensures smooth functionality. In addition, the electrical system is compliant with CE standards. CE models are standard with at least 1 meter long inlets and outlets (undriven rollers or flat table) to facilitate operation optimize and meet security standards. Technical data: ----- Saw cross section: Option A: 220x125/310x50mm Option B: 350x80/375x50mm Saw blade motor power: 5.5 kW Saw blade diameter: 500 mm Saw blade type: HM Z=108 Saw blade rotation speed: 2800 rpm Air consumption per cycle: 5 Nl Intake port: 1 x 120 mm / 1 x 100 mm Air pressure: 6 - 8 bar Voltage: V 400/50 Hz 3 phase Worktop height: 900 mm +- 20 mm Color: Ral 7035 ----- Total price ex works: on request! ----- Options like: - Inlet/outlet with undriven rollers/flat table - Mechanical or pneumatic stops - Electronic length stop / slider Salvastop (Combo series) - Movable front protection and more on request! ----- (technical data according to the manufacturer without guarantee!)
