Eccentric press

SANGIACOMO T130RCE

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, TECHNICAL CHARACTERISTICS: Press Model: T130R CE Serial number: 11911 Year of construction: 2004 Nominal force: 1300 kN Nominal stroke: 7.5 mm Adjustable stroke: 16÷200 mm Stop position: TDC Ram adjustment: 100 mm Stop time: 190 ms Strokes per minute min./max.: 10/55 Maximum mould surface: 600 x 1100 mm Maximum closed mould height: 452 mm Min. closed mould height: 260 mm Upper mould mass: 140 kg Flywheel revolutions per 1°: 411 Max. insertions at 1°: 28 Installed power: KW 11 Voltage: V400 Auxiliary voltage: V24 Operating air pressure: BAR 5.5÷6 Mass: Kg. 10,000 Motorized hammer adjustment Hydraulic overload safety Inverter Complete with user manual and CE conformity and 6 months warranty. • Work surface revived on CNC machine; Iedpfx Aov Iktlod Djii NEW COMPONENTS INSTALLED: • Safety guards complete with safety keys; • Clutch plates; • Motor; • Motor pulley; • Motor belts; • Clutch pins and brite; • Swivel joint bearings; • Motorized hammer adjustment worm screw bearings; • Flywheel bearings; • Electric panel with touch screen; • Pedal board; • Air pressure gauges; • Hammer overtravel sensor; • Balancer cylinder gaskets.

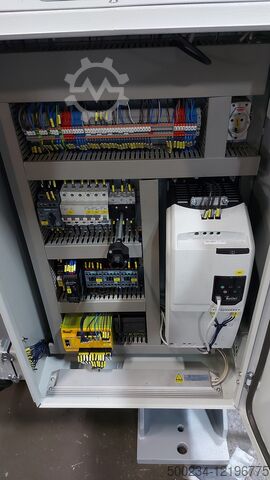

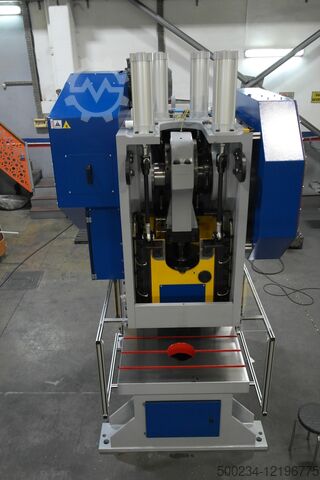

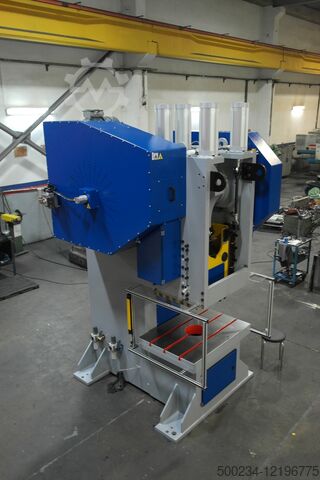

Condition: new, Year of construction: 2025, functionality: fully functional, machine/vehicle number: 25.11.17, Fresan FP 130P - C Frame Eccentric Press - 130 Tons (1300kN) TECHNICAL DATA: * Power: 130 tons (1300kN) * Strokes Per minute: 55 (variable) * Ram-Table Distance: 500 mm * Stroke Adjustment: 0 - 132 mm * Ram Adjustment: 95 mm (motorized) * Table Dimensions: 700 x 1000 mm STANDARD SPECIFICATIONS: * Conformity to CE safety regulations * Welded steel frame * Crankshaft made of AISI 4140 (42CrMo4) alloy steel. Highly durable and ductile. CNC ground for minimum surface friction. * SnBz-12 quality bronze bearings * Pneumatic clutch-brake combination * Fully closed gearbox with helical gears working in oil * Double body press safety valve * Safety PLC & light curtains & safety switches (Pilz) * Ram with 6 slides & waste oil collector Iijdjnyh Sijpfx Ad Dji * 7-inch HMI touchscreen operator panel * Speed control with AC inverter * Motorized ram adjustment * Mechanical fuse for overload protection (Hydraulic fuse can be installed on standard a machine after purchase) * Pneumatic counterbalance cylinders (ISO, 4 pcs) * Automatic central lubrication & used oil collectors (Thin oil / slideways oil) OPTIONAL EQUIPMENT: * Additional work table * Part ejector mechanisms(upper and/or lower ejectors) * Material feeding, loading & unloading systems (Decoilers, straighteners, pneumatic & servo feeders...) * Special design / customized machine

Year of construction: 2002, condition: used, pressure 130 t throat 350 mm stroke 16-200 mm Iedjlp U Dljpfx Ad Djii no. of strokes 55 Hub/min ram - range of adjustment 100 mm table surface area 1200x700 mm ram surface 730x530 mm hole in the table 300x210 mm table height 900 mm tool hole in ram Ø 50 mm weight of the machine ca. 8,0 t dimensions of the machine ca. BxTxH 1500x2200x3500 mm

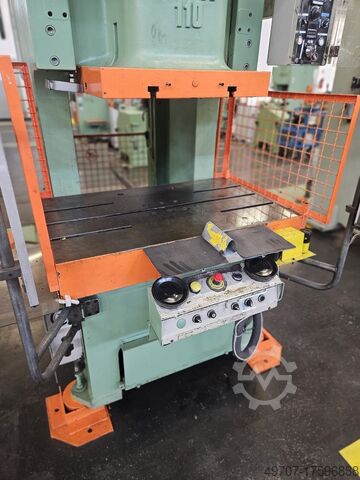

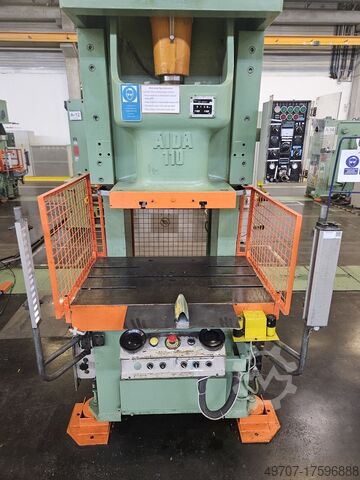

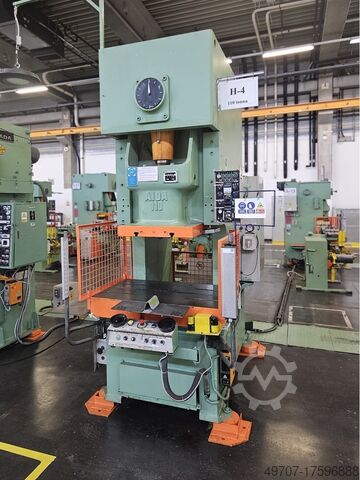

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, table width: 680 mm, table length: 1,070 mm, stroke adjustment: 90 mm, overall weight: 9,600 kg, pressing force: 110 t, stroke length: 180 mm, type of input current: three-phase, power: 7.5 kW (10.20 HP), punching force: 110 t, warranty duration: 6 months, year of last overhaul: 2020, Equipment: documentation/manual, AIDA NC1-11 110 ton eccentric press with air clutch for sale in mint condition Manufacturer: AIDA Engineering type: NC1-11 (2)-b Year of manufacture: 1988 pressing force 110t two-handed operation central fattening required air pressure: 5 bar stroke length: 180mm Iisdpfx Aju Har Esd Doi number of strokes: 35-65/min table-bear distance: 450mm stroke adjustability: 70mm table size: 1060x680mm bear size: 630x520mm total response time: 170ms voltage: 200v 50Hz 7.5kw machine weight: 10884 kg

Condition: refurbished (used), Year of construction: 2010, Technical main data of the PE 200 / 1400 C MA - new UVV (Accident Prevention Regulation) Nominal pressing force: 2,000 kN Stroke of ram, adjustable in steps: 21...220 mm Ram adjustment: 110 mm Throat depth: 420 mm Stroke rate in idle: 45 /min Continuously variable stroke rate: 25...80 /min Shut height (max. stroke bottom, adjustment top): 520 mm Table clamping surface (W x D): 1,400 x 800 mm Ram clamping surface (W x D): 1,000 x 600 mm Plunger bore in ram: 65 H7 Main motor power: 15 kW Machine height approx.: 3,800 mm Machine weight: 15,900 kg - Press safety control by PILZ with plain text display PX 20 - Continuously variable stroke rate by ABB - Motorized ram adjustment - Main motor with reversing circuit - Hydraulic overload protection - Semi-automatic stroke adjustment - Foot switch, two-hand operation Iiodpexb A Nzjfx Ad Dei - Tie rods (removable if disturbing) - Additional clamping plate - Centering groove - Vibration damping feet
