Radial Drill
SASS TRM 2200

Condition
Used
Location
Concordia Sagittaria Italy

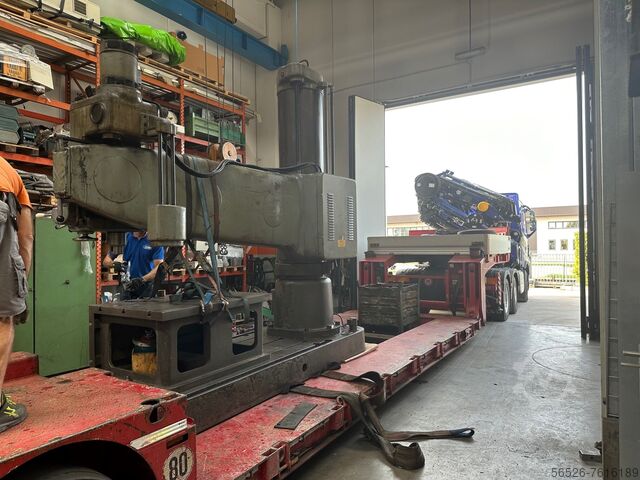

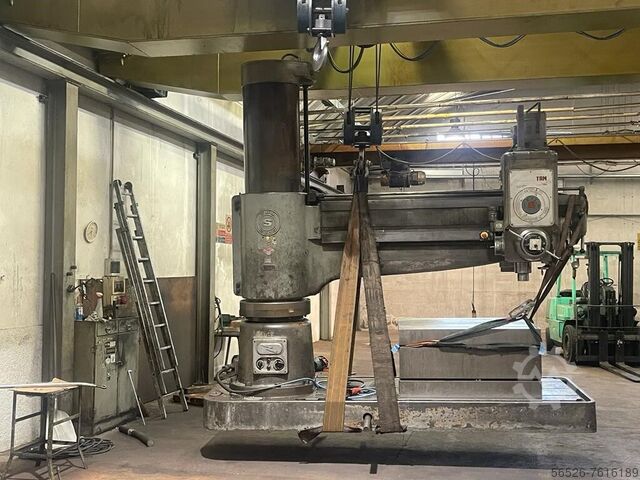

Radial Drill SASS TRM 2200
Radial Drill SASS TRM 2200
Radial Drill SASS TRM 2200
Radial Drill SASS TRM 2200
Radial Drill SASS TRM 2200
Radial Drill SASS TRM 2200
more Images
SASS TRM 2200
SASS TRM 2200
SASS TRM 2200
SASS TRM 2200
SASS TRM 2200
SASS TRM 2200

Machine data

Machine type:
Radial Drill
Manufacturer:
SASS
Model:
TRM 2200
Condition:
good (used)

Price & Location

Location:
Via Levada, 72, 30023 Concordia Sagittaria VE, Italia Italy
Call

Details about the offer

Listing ID:
A761-6189
Update:
27.01.2025

Description

Used radial drill press, SASS Mod. TRM 2200.
Ledpfxeikqz Ss Ammeac
In excellent condition, fully functional.
Includes a chuck.
Maximum drilling diameter in solid cast iron: 20-22, 100 mm
Maximum drilling diameter in solid steel (R=60): 80 mm
Sliding quill spindle diameter: 102 mm
Spindle taper: Morse 6
Vertical spindle travel: 500 mm
Rotation speeds: 32
Spindle speed values with 50 Hz motor: 18 ÷ 1600 rpm
Automatic feeds
Maximum overhang from column centerline to spindle axis: 2230 mm
Minimum and maximum drilling radius: 660 ÷ 2505 mm
Head travel on the arm: 1845 mm
Vertical travel of the arm: 1040 mm
Column diameter: 550 mm
Column height with motor: 3720 mm
Baseplate height: 260 mm
Base dimensions: 2490 x 1230 mm
Spindle motor: 11 HP
Weight: 9000 kg
