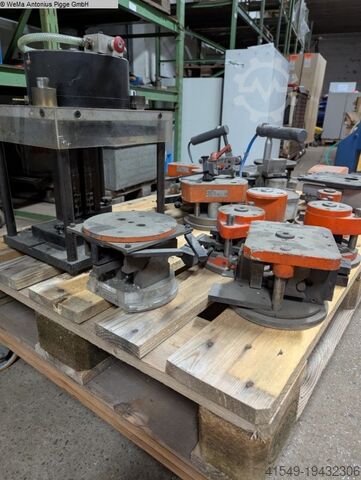

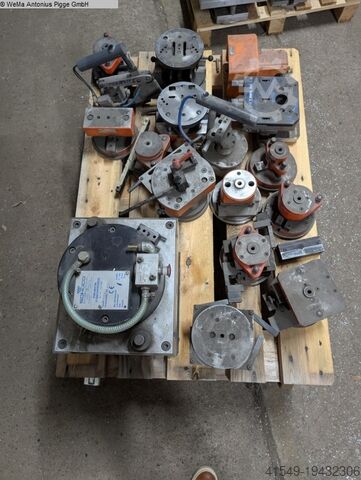

Punch for Window-production

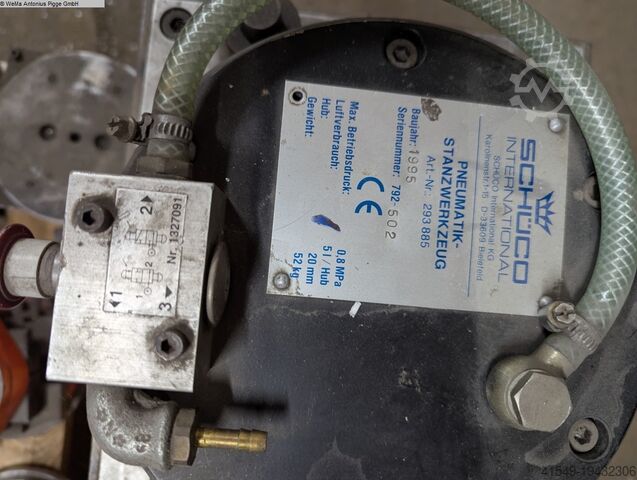

SCHÜCO Pneumatik Stanzwerkzeug

Condition: new, Year of construction: 2024, Single head sawing machine for aluminium FOM INDUSTIRE PANDA 300 ECHO with measuring system DIGISTOP 4m, measuring caliber DIGIBAR 3,3m and inlet conveyor PORTER 4,2m Machine in stock Ndsdpfx Ahjwh Rlgezod Configuration: Single head saw with up-feed blade Ø 300 mm and manual positioning of vertical axis FOM INDUSTRIE PANDA 300 ECHO: - Tungsten carbide saw blade Ø 300 mm - Hydro-pneumatic feed of saw blade - Spray mist blade lubrication system - Cutting area guard kit - Two vertical vices - Two horizontal vices - Set up for the extraction of chips and fumes Electronic measuring system DIGISTOP 4m: - Min. cutting length 0 mm, maximum 4000 mm - Friendly software using icons and function keys - Accuracy 0.1 mm - Manual piece execution - Measurement list editor - Editor of measurement received by radio or net - Removal of piece after every cut - Visualization of reference for each measurement - Roller width 200 mm Wireless electronic measuring bar DIGIBAR 3,3m - Minimum measure 140 mm - Maximum measure (without extension) 1600 mm - Maximum measure (with extension) 3300 mm - In set includes two extensions: 1400 mm and 1700 mm - Accuracy 0.1 mm - Weight 2190 gr - Power supply 4 recharg. batt. AAA - Absolute measuring system (no recalibration required) - 2 LCD lines 16 characters - Industrial keyboard 6 keys protected - 2 LED signal for immediate display of the state of instrument - Ergonomic Handle with a simple use button for measurement capture Inlet roller conveyor PORTER 4,2 m: - Loading capacity Kg. 10 per meter - Plastic rollers, width 200 mm - Vertical plastic rollers

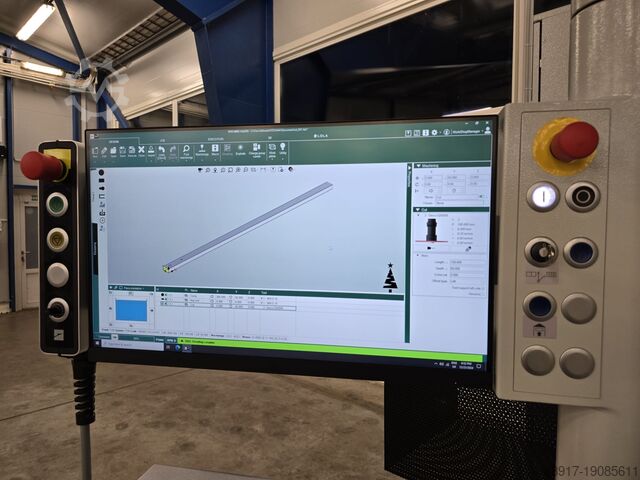

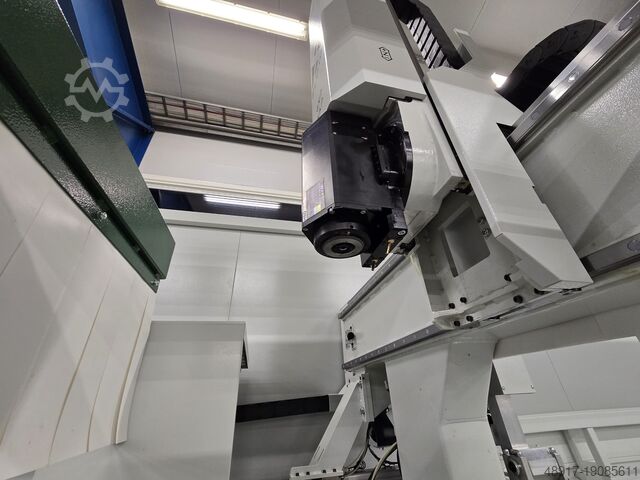

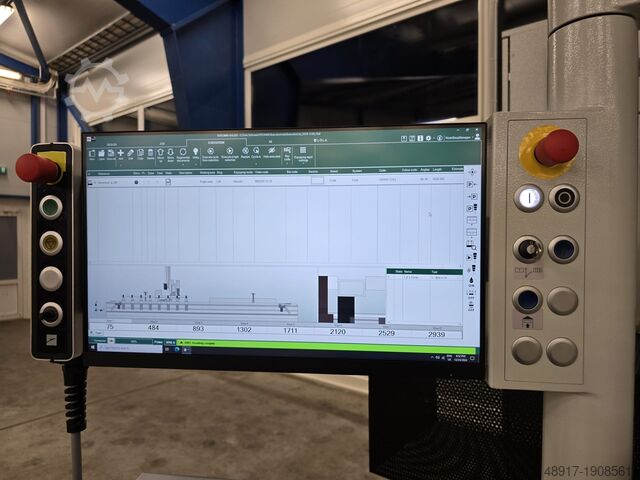

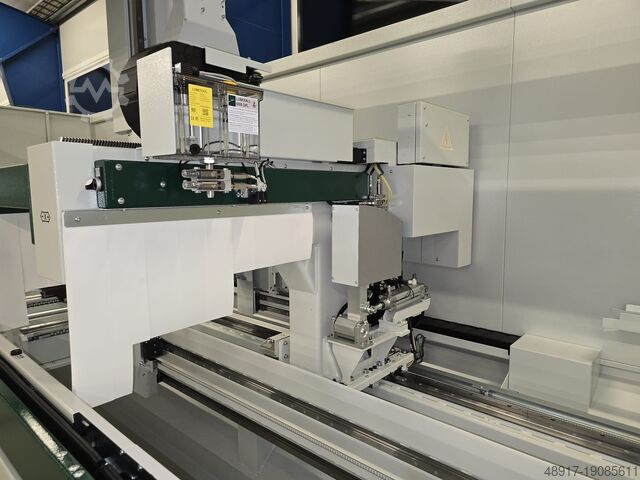

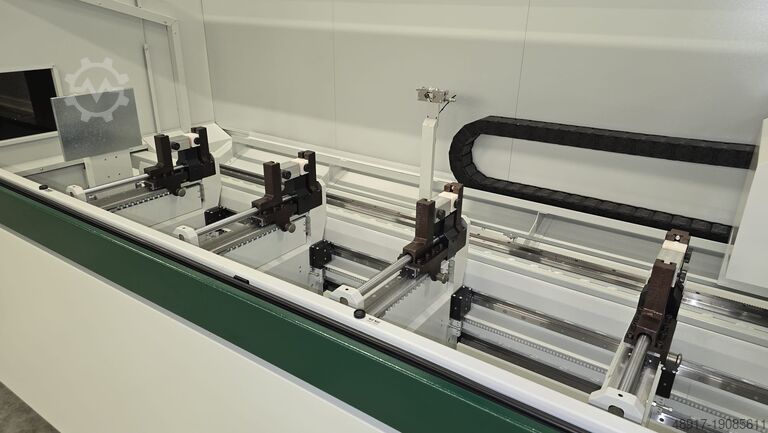

Condition: new, Year of construction: 2025, XX100405 CNC Machining centre with 4 controlled axes FOM INDUSTRIE FMC 370 Machine in stock Standard configuration: - Liquid-cooled electrospindle 7 kW, 20,000 rpm (HSK-F63) - 9 location tool magazine on head (HSK-F63) - No. 2 pairs of pneumatic vices with positioning through the travelling column - No. 2 pairs of low profile jaws for clamping wide profiles - Left pneumatic reference stop - Minimum quantity lubrication (MQL) with pure oil - Chip and waste collection tank in base - Perimeter guard system with automatically opening, front retractable doors - X FLOW (automatic orientation of lubricant nozzles) - Control: POWER-D Nodpfx Aewhrlnohzsdd - Movable control console - 24” display - FST CAM 4 program Optional equipment installed on the machine: - PR205249 One pairs of additional vices with independent positioning and vises modification: • Transformation of four standard vices to vices with independent positioning • Transformation of standard vices into extra clamping vices - PR205258 Pendular (2 working areas, 2 pieces) and oversides profiles machining: • Second X-FLOW • Right pneumatic fixed stop • Software to manage pendular machining • Safety devices for pendular machining • Tunnel for oversized profile machining • SW to manage oversized machining operations - PR205253 Device to measure profile length - PR205227 Device for integrity and measure of the tool - PR202971 Data import software in accordance to FOM protocol and wireless optical bar code and QR code reader - ZP715059 3D custom milling Module for FST CAM 4 - ZP715010 Module for rigid tapping and chase tapping - PR205268 Rear chip collection tanks for FMC 370 - PR205271 Centralised automatic lubrication system - PR203389 Rear chip collection tank - PR202975 Tool set A3/HSK F63 (8 holders HSKF63, 8 collets and 8 HM milling cutters) - PR204497 Holder HSKF63 with cutter Ø 200 x 6mm - PR203785 Holder HSKF63 with blade Ø 200 mm

Condition: refurbished (used), Year of construction: 2024, Manufacturer: Elumatec Type SA/ SAS 142 Overhaul year: 2024 Saw blade max. carbide: 500 mm Drive power saw motor: 4 KW Saw motor speed: 2800 min-1 Cutting speed saw blade 500 mm: 4400 m/min Saw height control: infinitely variable, fully electronic Working range square 90° max.: 130 x 130 mm Working range flat: 90° max.: 190 x 130 mm Working range round: 90° max.:150 mm Pneumatic feed length: 5-560, 10-1120 mm Compressed air connection, on site 6 bar Weight(saw)approx.: 800 kg Dimensions LxWxH (saw)approx.:2900mm x 1400mm x 1500mm Ndjdpjuiy Nyjfx Ahzjd Installation area LxW: 2900mm x 1400mm Additional description Elumatec SA/ SAS 142 4KW Retrofit Elumatec SA 142 4KW Retrofit Fully automatic sawing machine for non-ferrous metal and plastic After completion of the retrofit, the machine is in mint condition, both technically and visually. The machine will be overhauled in our company at the customer's request. Among other things, the following points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - New electrical components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Maintenance of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Extension of the sawing area to flat 90° max.: 300 x 120 mm - Splitting extension (for a high-quality cut surface without return marks) - Servo-controlled material feed - Saw blade feed Servo-controlled - Mass clamping device Feed vice - Delivery and installation on your premises - Training of your employees

Condition: excellent (used), Year of construction: 2001, operating hours: 32,000 h, functionality: fully functional, machine/vehicle number: 01-123-01, HF Stretch Ceiling welder A linear welder with a power of 10kW, designed for the production of medium and large-sized PVC products (PVC Stretch ceilings). Machine specifications: - TD-Ceiling travelling HF-welding machine Air-cooled electrode holder 1000 mm - Welding table 12m, level 2 precision track system for straight machine transportation Phosphor bronze band 125 mm wide, stretched across welding table, for eliminating table joints and/or welding surface of glossy material - Double joystick for variable positioning of machine - 1 cutting edge welding electrodes 1000mm x 3 mm, cutting edge 0,2 mm, with 1 loose tool holder Ndsdpjrwyf Aefx Ahzod Machine characteris

Year of construction: 2024, condition: new, Trolley for carriage and storage of profiles in vertical position COMALL CARR 300 Q, new Nedpfef Nk H Hjx Ahzjdd Technical specifications: - 10 compartments with working size 128 mm - Contact surfaces coated with non-scratch and shock-proof plastic material - 4 wheels Ø 125 mm, 2 of them with locking device - Arms adjustable in 5 different positions - Rubber-coated supporting table - Loading: 650 Kg

Condition: refurbished (used), Year of construction: 2024, Overhaul year: 2024 Saw blade VHM / HSS: 315 - 360 mm Drive power saw motor: 15 KW Infinitely variable speed: 15 - 130 min-1 Saw blade cutting speed (350 mm): 16.4 - 142.8 m/min Saw height control infinitely variable: electronic Working range square 90° max.: 100 x 100 mm Working range round 90° max.: 110 mm Feed length 5-970 mm (9999 mm multiple stroke) Feed speed AC servo max.: 300 mm/s Compressed air connection on site: 6 bar Saw weight approx.: 1800 kg Dimensions LxWxH: 1900mm x 1250mm x 2100mm Footprint LxW: 1900mm x 1250mm Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The HMI interface for controlling the machine ensures simple and problem-free operation of the system. Following a completed retrofit, the machine is in mint condition, both technically and visually. A viewing of this sawing system is possible at any time. The machine will be completely overhauled in our company at the customer's request. Among other things, the following points will be renewed: - Conversion to PLC control Siemens S7 - Renewal of the ball screw drive with servo control - New electrical components - Renewal of the pneumatic lines - New pneumatic components - Overhaul or renewal of the hydraulic lines - Overhaul or renewal of the hydraulic components - Overhaul of the cab - Overhaul of the motors - Replacement of all bearings - Replacement of general wear parts The machine also has - Reinforced motor 15 KW - Soundproof cabin - Splitting extension (for a high-quality cut surface without return marks) Ndedpfxsuizinj Ahzed - Frequency control motor - Minimum quantity lubrication - Automatic central lubrication system - Pneumatic chip space cleaning on the saw blade Warranty: Unless otherwise agreed, we provide a 6-month guarantee on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Mass clamping device for parallel sawing of several workpieces - Roller conveyor 4m/ 6m - Special roller conveyor 4m/ 6m for bundle clamping - Flat magazine for automatic feeding of up to 6m long primary materials - Online support connection - Delivery and installation on your premises - Training of your employees

Year of construction: 2020, operating hours: 2,900 h, condition: like new (used), functionality: fully functional, machine/vehicle number: 4720_0105, The machine has only 2900 hours working time. Really it's like a new machine. Ndsdewbttgspfx Ahzod

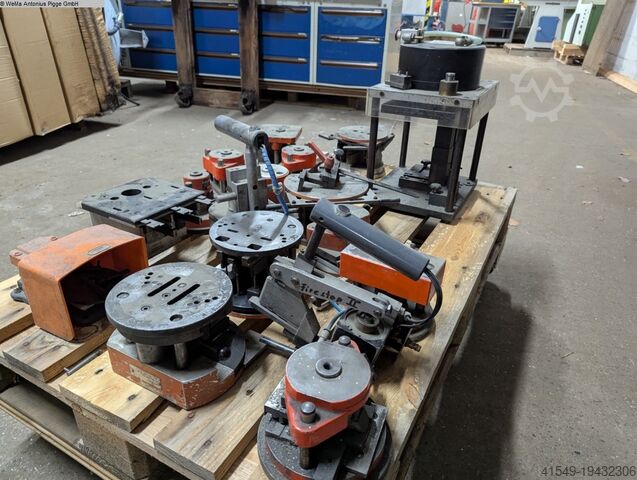

Year of construction: 1993, condition: used, machine/vehicle number: 24323, For corner joints transom and mullion for optional glue or nail holes Water drainage slots in frame and transom profiles recesses for SCHUeCO window handles Ndsdpfxobnnwqj Ahzod Punching out of the locking bar groove on window sash profiles opening inwards and for opening window profiles punching force depending on air pressure (6 - 8 bar): 0,6 - 0,8 MPa Air consumption: 9 l/stroke Space requirement: 620 x 380 x 1250 mm Weight: approx. 106 kg

Year of construction: 2024, condition: new, Trolley for handling and storing oversize sashes/frames COMALL CARR 900-93/15 Q, new Technical features: - Contact surfaces coated with non-scratch and shock-proof plastic material - Max. height sashes/frames 2500 mm - N° 16 couples of posts - 15 compartments with working size 93 mm - 4 wheels Ø 125 mm, 2 of them with locking device - Load capacity: 850 Kg Ndodpfxjm H Twge Ahzod

Year of construction: 2024, condition: new, Trolley for carriage of sashes and frame COMALL CARR 600 - 85/9 Q, new Technical specifications: - 9 compartments with working size 84 mm - Contact surfaces coated with non-scratch and shock-proof plastic material Ndodslfargjpfx Ahzjd - Rollers for sash carriage - 4 wheels Ø 125 mm, 2 of them with locking device - Support: 560 Kg - Carton packing
