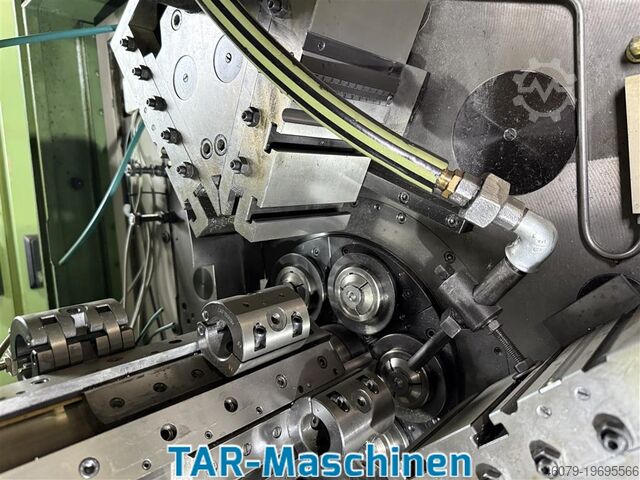

Chucking Automatic Lathe - Multi Spindle

SCHÜTTE SG18

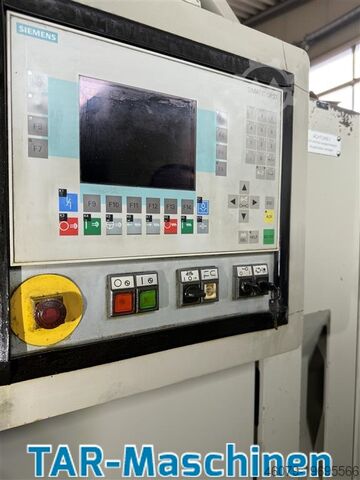

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, spindle speed (max.): 8,000 rpm, turning diameter: 18 mm, controller manufacturer: Siemens, Equipment: bar feeder, chip conveyor, TECHNICAL DETAILS Turning diameter: 18 mm (16 mm) Spindle speed: 800 - 8,000 rpm Spindle circle diameter: 180 mm Main spindle drive power: 11 kW Torque: 18 Nm Bar feeder capacity: max. 80 mm Longitudinal slide travel: 50 mm (63 mm) Cross slide travel: 20 mm (32 mm) MACHINE DETAILS Control: Siemens Dimensions & Weight Space requirement approx.: 6.0 x 1.5 x 2.2 m Machine weight approx.: 5.5 t EQUIPMENT CO2 fire extinguishing system by Kraft&Bauer Ruez scraper belt conveyor IEMCA bar feeder PRA 52 42 F Tool package Cam package Various clamping devices Hedpfxeyxmrqs Ahbjnk Documentation Chip conveyor Coolant unit Parts discharge chute Signal lamp Interface for bar feeder Hydraulic unit

Condition: good (used), max. wheel diameter 1600 mm gear width 250 mm max. module 30 min. module 8 range of tooth size 58 mm tooth width 250 mm weight of the machine ca. 42,3 t dimensions of the machine ca. 4,45 x 6,00 m - Cone spacing in mm. for spiral angle 30° minimum: 150 maximum: 800 - Taper angle, in degrees minimum: 5 Hsdpfju Dbucsx Ahbenk maximum: 85 - Tooth angle minimum: 0° maximum: 45° - Number of teeth to be cut minimum: 10 maximum: 150 The machine is complete, fully functional and in good condition. Equipment / accessories: - complete set of change wheels - 4 pcs. cutter heads - various milling cutters - Operating instructions in English

Condition: used, Year of construction: 2008, Technical details: number of spindles: 6 spindle passage: 18 mm Hedpfxjluhcge Ahbsnk turning length: 63/50 mm weight of the machine ca.: 4,5 t spindle drive motor: 11 kW

Condition: used, Year of construction: 2002, Technical Details: SCHÜTTE SG 18 Max. bar diameter round / square: 18 / 13 mm Spindle pitch circle diameter: 180 mm Bar feed: 80 mm Longitudinal slide travel (total / working): 63 / 50 mm Cross slide travel (total / working): 32 / 20 mm Spindle speeds (infinitely variable): 800 – 10,000 rpm Main cycle times (infinitely variable): min./max. 0.24 – 45 s Secondary times: 0.30 s Main drive: 11 kW Feed motor torque: 18 Nm Dimensions (including bar guide): approx. L x W approx. 5.5 x 1.3 m Weight: approx. 5 t Voltage: 400 V / 50 Hz Hodpfxsymdd So Ahbonk Operating hours: 14,304 h Scope of delivery: - Bar feeder Pra 52 P IEMCA - RUEZ KF0WW2/312 DAS, year 2002

Condition: like new (used), Year of construction: 2022, operating hours: 3,800 h, functionality: fully functional, Year 2022 - 3800 hours MultiSwiss 8x26, 6 Y-axes 8 motor spindles, 11 kW – 8000 rpm max Hjdpfxoxrfune Ahbsnk Spindle capacity 26 mm, Z stroke 75 mm (max. workpiece 65 mm) 2 X-slide units in positions 1-8, stroke 80 mm 6 X-Y slide units in positions 2-3-4-5-6-7, X stroke 55 mm, Y +/-16.5 mm Counter spindle 11 kW – 8000 rpm max Z stroke 150 mm, X 170 mm HP ejector adaptation for counter spindle (requires 3010 or 3020) Fanuc 30iB CNC control Integrated PC with Windows 10 operating system 21.5" color touchscreen Independent C axis on each spindle in main and counter operations (requires 0060 or 0065 or 0070 or 0075)

Year of construction: 1996, condition: good (used), Mehrspindel Schütte SG18 Hnodpfx Asg S Tx Iohbok

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 23-07, TECHNICAL DETAILS Number of spindles: 6 Spindle bore: 18 mm Turning length: 63/50 mm Spindle drive motor: 11 kW Max. bar diameter (solid clamping system) round: 18 mm Max. bar diameter (solid clamping system) hexagon: 16 mm Hnjdpfx Ahjwmckxebok Spindle diameter: 180 mm Bar feed: up to 80 mm Standard longitudinal slide travel (total travel/working travel): up to 63/50 mm Special longitudinal slide travel (total travel/working travel): up to 90/72 mm Cross slide travel (total travel/working travel): 32/20 mm Spindle speeds, continuously adjustable: 800 - 10,000 rpm Cutting times, min./max., continuously adjustable Selectable: 0.24 - 45 s Non-productive time: 0.4 s Rated power of the drive motor: 11 kW Rated torque of the feed motor: 18 Nm MACHINE DETAILS Machine weight: approx. 4.5 t Dimensions: 2,950 / 5,420 x 1,230 x 2,050 mm

Condition: good (used), Year of construction: 1988, 6-spindle-automatic lathe Hnjdpfx Ahovwmb Dsbsk brand: TORNOS type: SAS16 new in: 1988 equipped with: sub spindel threading attachement flushing system chip conveyor automatic baroader IEMCA PRA 40/31/P

Condition: used, Year of construction: 2014, 2014 Citizen M32-Vlll 15 Axis CNC Sliding Headstock Automatic Lathe With Iemca Boss 338-HD/R 37LL Barfeeder - With Cool Blaster CB510 high Pressure Coolant System, Tooling In Machine, Parts Catcher, Absolent A.mist10S Mist Extraction Unit, Nobel Fire Suppression Unit, Signal Tower & Manuals. Iemca Boss 338-HD 37LL Bar Feeder Length 4,600mm, S/No. 021522NA06 (2015). Max Machining Ø32mm. Max Machining Length 320mm(1/Chucking) . Max Front Drilling Ø12mm. Max Front Tapping M10. Through Spindle Ø36mm. Max Main Spindle Speed ​​8,000rpm (Motor 3.7/7.5kW). Max. Drilling Diameter For The Gang Rotary Tool Ø8mm. Max. Tapping Diameter For The Gang Rotary Tool M6. Spindle Speed Of The Gang Rotary Tool 6,000rpm (1kW Motor). Max. Drilling Diameter For The Turret Rotary Tool Ø10mm. Max. Tapping Diameter For The Turret Rotary Tool M8. Spindle Speed Of The Turret Rotary Tool 6,000rpm (0.75/1.5kW Motor). Max. Drilling Diameter For The Back Spindle Ø10mm. Max. Tapping Diameter For The Back Spindle M10. Back Spindle Speed 8,000rpm (2.2/3.7kW Motor). Max. Drilling Diameter For The Back Tool Post Rotary Tool Ø8mm. Max. Tapping Diameter For The Back Tool Post Rotary Tool M6. Spindle Speed Of The Back Tool Post Rotary Tool (1kW Motor). Max. Chuck Diameter Of The Back Spindle Ø32mm. Max. Protrusion Length Of The Back Spindle Workpiece 65mm. Max. Protrusion Length 145mm. Number Of Tools To Be Mounted 31+ α. Gang Tool Post 5. Gang Rotary Tool 4. Gang B Axis Rotary Tool 3. Number Of Turret Station 10. Back Tool Post 9. Tool Dimension Tool (Gang Tool Post) 16 x 16mm. Sleeve φ25.4mm. Chuck And Bushing Main Spindle Collet Chuck FC081-M, Back Spindle Collet Chuck FC081-M-K, Guide Bushing FG531-M. Rapid Feed Rate All Axes (Except ‘X2 & Y2’) 32m/min, ‘X2’ Axis 18m/min, ‘Y2’ Axis 8m/min, ‘Y3’ Axis 32m/min. Centre Height 1,150mm. Input Power Capacity 20kVA. Weight 3,650kg. S/No.P30498 (2014). Hnsdsyx H A Nopfx Ahbok

Condition: used, Year of construction: 2006, Brake force 300 tons Working length 6100 mm Distance between uprights 4550 mm Throat depth 400 mm Punch stroke 320 mm Table width 220 mm Fast speed (0 – 100) mm/sec Woriking speed (0 - 7) mm/sec Upstroke speed (0 – 90) mm/sec Hydraulic pressure (max) 255 bar Main electric motor 18,5 KW Length 7500 mm Width 2900 mm Height 3700 mm Weight (aproxim.) 32000 Κgr Hnsdpfswhcycex Ahbjk
