Bar Automatic Lathe - Multi Spindle

SCHÜTTE SG 18

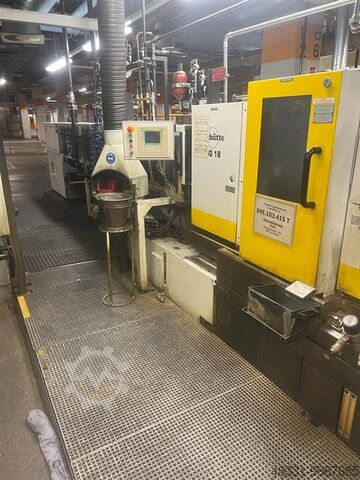

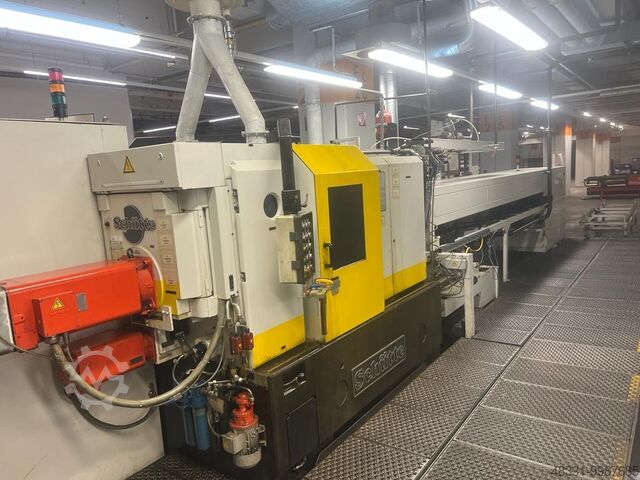

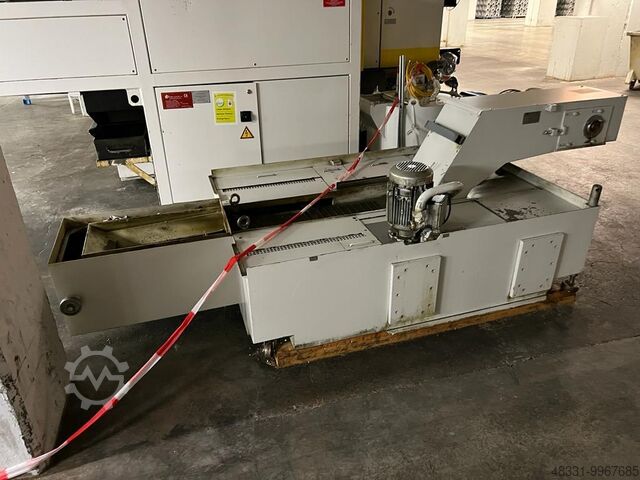

Condition: used, Year of construction: 2007, functionality: fully functional, SCHÜTTE - SG 18 Offer Details Stock No.: 1039-9273 Machine Type: Multi-Spindle Automatic Lathe (Bar Automatic) Manufacturer: SCHÜTTE Model: SG 18 Year of Manufacture: 2007 Control: Siemens Location: D-59302 Oelde Country of Origin: Germany Delivery Time: By arrangement Freight Terms: Ex-works Additional Information: CNC Bar Turning Automatic Lathe SCHÜTTE - SG 18 Kdodext Emaspfx Ag Aew - Co2 fire suppression system Kraft&Bauer - Ruez drag link conveyor - IEMCA bar loader PRA 52 42 F - Tooling package - Cam set - Various clamping devices WE OFFER: - Workshop-inspected machines - Free-on-truck loading - NO auction fees - Possible delivery (at extra cost) - Unloading and commissioning (at extra cost) Technical Data Turning diameter: 18 (16) mm Turning length: - mm Control: Siemens Spindle pitch circle diameter: 180 mm Bar feeder stroke: max. 80 mm Longitudinal slide travel: 50 (63) mm Cross slide travel: 20 (32) mm Spindle speed: 800 - 8,000 rpm Main spindle drive power: 11 kW Torque: 18 Nm Space requirement approx.: 6.0 x 1.5 x 2.2 m Machine weight approx.: 5.5 t Included Accessories - Documentation - Chip conveyor - Coolant system - Parts discharge - Signal lamp - Interface for bar loader - Bar loading magazine IEMCA PRA 52 42 F - Hydraulic unit

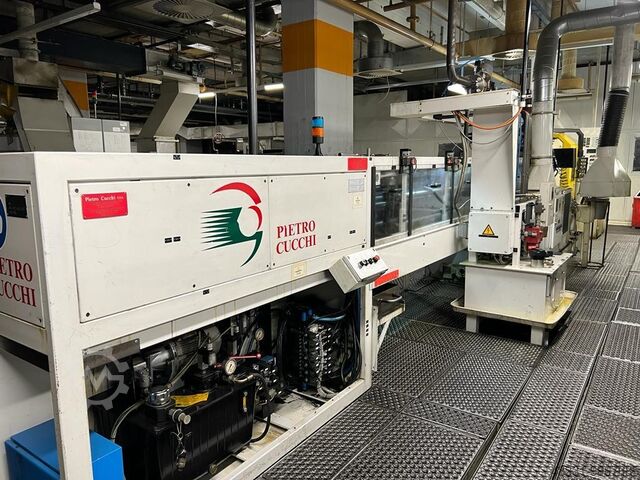

Year of construction: 1996, condition: used, Schütte SF 26S DNT YOM 1996 Number of spindles: 6 Max bar diameter [mm]: 26 Auto bar loader: Cucchi BLT Multi-6 - (YOM 2015) Cross slide pos. 1, 3, 4, 6 CN slide pos 2, 5 Spindle stop attachment for main spindles Bar feeding pos. 6 Pickup spindle pos. 6 High pressure coolant system Chip conveyor, hinged belt type Oil mist filter ISI RON/A 2500A, ID 26295 Kdjdpfx Agoi Hb Szs Aow

Condition: used, Year of construction: 2007, turning diameter 18 (16) mm control Siemens spindle circle diameter 180 mm bar feed max. 80 mm longitudinal slide -travel 50 (63) mm cross slide - travel 20 (32) mm Spindlespeed 800 - 8.000 min/-1 power capacity - main spindel 11 kW Torque 18 Nm dimensions of the machine ca. 6,0 x 1,5 x 2,2 m weight of the machine ca. 5,5 t CNC-Bar-Automatic-Turning Machine SCHÜTTE - SG 18 Ksdsvanqropfx Ag Aodw - Co2 fire extinguishing system Kraft&Bauer - Ruez scraper belt conveyor - IEMCA bar feeder PRA 52 42 F - Tool package - Curve package - various clamping devices

Condition: used, Year of construction: 1999, Technical details: number of spindles: 6 Article: cam-controlled multi-spindle automatic lathe Ksdow Hb Trspfx Ag Ajdw Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at) or *

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Kdjdpfx Agehrihye Asw

Year of construction: 1996, condition: good (used), Mehrspindel Schütte SG18 Kdedpfx Agjg S Tx Is Aow

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 23-07, TECHNICAL DETAILS Number of spindles: 6 Spindle bore: 18 mm Turning length: 63/50 mm Spindle drive motor: 11 kW Max. bar diameter (solid clamping system) round: 18 mm Max. bar diameter (solid clamping system) hexagon: 16 mm Spindle diameter: 180 mm Bar feed: up to 80 mm Standard longitudinal slide travel (total travel/working travel): up to 63/50 mm Special longitudinal slide travel (total travel/working travel): up to 90/72 mm Cross slide travel (total travel/working travel): 32/20 mm Spindle speeds, continuously adjustable: 800 - 10,000 rpm Cutting times, min./max., continuously adjustable Selectable: 0.24 - 45 s Non-productive time: 0.4 s Rated power of the drive motor: 11 kW Rated torque of the feed motor: 18 Nm MACHINE DETAILS Machine weight: approx. 4.5 t Kdsdpfxjwmckxs Ag Aow Dimensions: 2,950 / 5,420 x 1,230 x 2,050 mm

Condition: good (used), Year of construction: 2015, operating hours: 35,000 h, functionality: fully functional, spindle speed (max.): 6,000 rpm, chuck outer diameter: 250 mm, feed length X-axis: 680 mm, feed length Z-axis: 200 mm, power: 39 kW (53.03 HP), rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, type of input current: three-phase, controller manufacturer: Siemens, controller model: 840 DS, input voltage: 400 V, coolant supply: 6 bar, nominal power (apparent): 45 kVA, Equipment: rotational speed infinitely variable, type plate available, EMAG VERTICAL SINGLE-SPINDLE TURNING AND GRINDING CENTER EMAG - REINECKER VSC 250 DS Used, year of manufacture 2015 Control: Siemens 840 DS Condition: Used machine in good condition Operating hours (approx.): 35,000 Program run time (approx.): 22,000 hours Operating voltage: 400V Air connection: 6 bar Total power requirement: approx. 45 kVA Cooling unit: water/water Kdsdpfx Aslfduijg Ajw Machine dimensions without peripherals (L x W x H): approx. 3200 x 1900 x 2650 mm CYLINDRICAL GRINDING Integrated motor grinding spindle with max. speed 45,000 rpm and max. output 18 kW Touch dressing for ceramic CBN grinding wheels Vertical CNC turning and grinding center Automation / Gantry: EKF basket stacker cell as raw/finished parts buffer for baskets 400 x 600 mm on floor rollers 3 basket stacks enable uninterrupted operation even during basket changes, loading/unloading via loading gantry The machine is well-maintained and EMAG serviced. The production process includes pre- and finish machining of the bore and end faces by hard turning the face surfaces, as well as turning the diameter/bore followed by bore grinding. No driven tools Viewing under power is possible by appointment. Dismantling and loading of the equipment are to be carried out by the buyer. Price and further details on request / special price All technical details subject to error/typos. Sale only within EU countries.

Condition: excellent (used), Year of construction: 2004, operating hours: 1,000 h, functionality: fully functional, turning diameter over cross slide: 380 mm, turning length: 350 mm, turning diameter: 200 mm, travel distance X-axis: 240 mm, rapid traverse X-axis: 12 m/min, Hembrug Mill-Turn Machine Model: Slantbed Mikroturn 100 CNC Siemens 840D Control Approximate Actual Run Time Hours: 1,000 Hydeostatic Spindle Hydrostatic Ways Scale Feedback Suspended Granite Bed Garnite Spindle Housing Coolant Pump Coolant Circulation Pump Pneumatic Bearing Purge Hydraulic Temperature Control Coolant Temperature Control Kedpswcfgbefx Ag Asdw Return Oil Pump and Reservoir for Remote Location of Hydraulic / Cooling Unit. Options & Additional Purchased Features: Tailstock Vacuum Pump for Vacuum Chucking Programable Controlled Spray Mist C-Axis Milling / Drilling Renishaw Tool Touch Probe Non-Contact Tool Incoming Air Dryer / Filter Thousands of Dollars of Brand New Tooling: Live Center Tailstock Taper Adapter 8” Micro-Centric Pneumatic Chuck 3 Sauter Straight Live tooling heads 2 Sauter 90 degree Live tooling heads 1 Special VDI offset Tooling holder 16 VDI Tool Holders for Turning, boring, and on center drilling. Tool Pick-up Video System Additional Backup Hard Drive with Software Fully Loaded and Tested. Extra Siemens Control Pannel Complete Set of Manuals Machine Upgrades I added at additional cost. New Digital Hard Drive New Backup Hard Drive with software already loaded, plug and play ready, no downtime. New Z-Axis Heidenhain Scale Rewound Hydraulic Pump Motor, factory motor was running too hot for my liking. Replaced Operator Panel, back light on monitor went out, have the original, back light needs replacing. 50 Foot Extended Wiring Harness For Remote Location of Hydraulic / Cooling Unit.

Condition: used, Year of construction: 1992, Technical details: grinding diameter: 50 mm grinding length: 100 mm centre height: 100 mm centre distance: 200 mm Kodpfx Ager R Ek So Aodw
