Frame press

Schafberger & Sprödhuber

Condition: used, Number of drilling agregates 1 Stk. Automatic Fitting-press in nein ja/nein Pot volume drill ja ja/nein Gedpewvptfjfx Ad Hsua Electric pneumatic cup hinge drilling machine or fitting drilling machine Schafberger+Sprödhuber type BS for drilling cup hinges or fittings with mechanical centering.

Condition: good (used), Frame press, gluing press -operated: hydraulically -Working area up to: 3500 x 2400 mm -Wood clamping: pneumatic Gedpfx Adjb A H Dhj Houa -Display dimensions: 4200/1100/H3700 mm -Transport dimensions: 4200/1200/H2300 mm -Weight: approx. 3500 kg

Condition: excellent (used), Year of construction: 1992, 4.5 kW motor Working height 245 cm Godstq S H Aopfx Ad Houa Working width max. 365 cm

Condition: used, Year of construction: 1994, Frame press Schafberger & Sprödhuber Gsdpfx Adjilurne Heua Type Super 4 Kw 3 m x 6 m

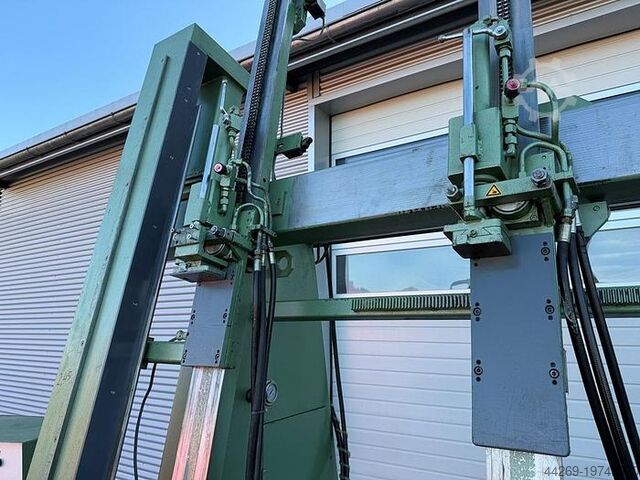

Condition: used, Working width 3600 mm Working height 2600 mm Number of cylinders 5 St. loading dimensions L x W x H 4400 x 1150 x 2970 mm weight 3000 kg Schafberger + Sproedhuber Bavaria Frame Press ----- Machine is overhauled by us before delivery. With automatic pressing cycle + manual control for tenon + slot corner joints. CE-certified version Basic machine in the strongest welded frame construction, with thick-walled special hollow profiles. Guideways for the pressure beams for the press corners in a low-wear machined design. Fast, smooth, manual width adjustment via ball-bearing carriages, fixed in a hole pattern. Height adjustment and pressing via long-stroke cylinders in a single work cycle. Right-side press corners with integrated horizontal cylinders, therefore no Gedjw T Un Ujpfx Ad Hsua vertical positioning of the horizontal pressure cylinders necessary, thus avoiding cylinder collisions. Lower abutment adjustable in several positions for the most favorable insertion height. 3 vertical press cylinders, double-acting, stroke adjusted to working height 2 horizontal press cylinders, double-acting Abutment and pressure plate depth 80 mm Working size: Length x Height = approx. 3,600 mm x 2,600 mm Space requirement/loading dimensions: approx. 4,400 mm x 1,150 mm x 2,970 mm (Length x Width x Height) Option: ALWA pressing supports for sloped windows (Technical specifications according to the manufacturer – no guarantee! Images may differ from the original. Prices are net, plus VAT (domestic))

Condition: used, Year of construction: 1992, Used machine Year of manufacture: 1992 Features and technical specifications: Electro-hydraulic frame press control Pressing force up to 1,200 kg Two movable longitudinal pressure beams mounted with double ball bearings and guide rails These rails allow for continuous height adjustment of the cylinders The press cylinders can be adjusted via quick-release pressure lever with automatic locking Two electro-hydraulic control valves (with 3 switching stages) operated by hand levers This allows for precise pressing and assembly of even the most complex frame constructions Working height x working length: 2,000 x 3,000 mm Equipped with 3 vertical pressure cylinders Equipped with 2 horizontal pressure cylinders Stroke of pressure cylinders: 120 mm Three-phase motor: 1.3 kW Pressure control unit / pressing force adjustable: 0 - 60 bar Space requirement: 3,950 x 900 x 2,550 mm Weight: approx. 620 kg Availability: short-term Location: Flörsheim Guedpfowwxywjx Ad Hsa

Condition: used, Year of construction: 1998, Used machine Year of construction 1998 this machine can be used to drill corner bearings, fanlights and olives on loose or pressed frame wood Guodpfx Ajw Naabsd Hoa The scanning is carried out at the rebate, the 8 stops for the corner bearing and skylight, as well as for the set timber and transom are automatically used after the timber has been positioned. The machine has an automatic program sequence with electrical control for the drilling motors, triggered by a safety foot pedal Pneumatic connection R 1/4" 5-6 bar Suction speed 25 m/sec. Suction nozzle diameter 120 mm Electrical connection 0.75 kW Space requirement 2950 x 650 x 1100 mm Availability: short term Storage location: Flörsheim
