Precision lathe

Schaublin 102 vm

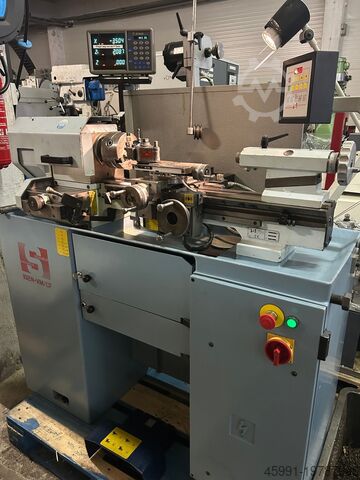

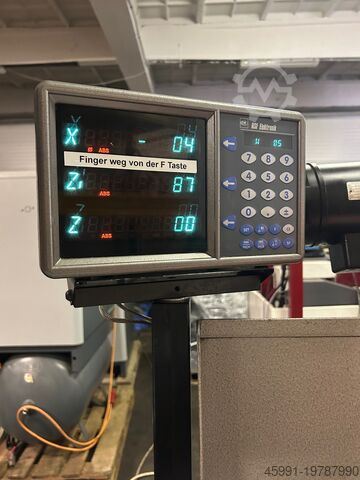

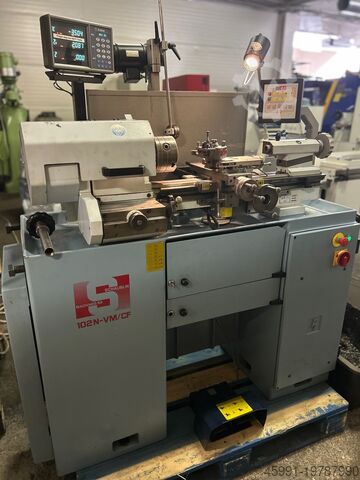

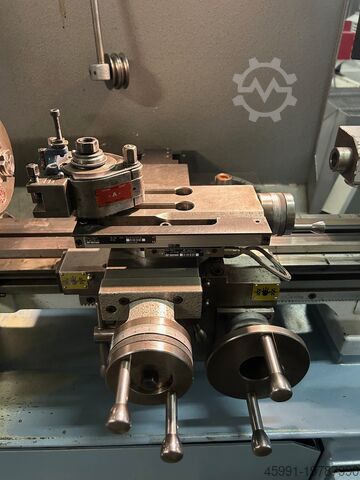

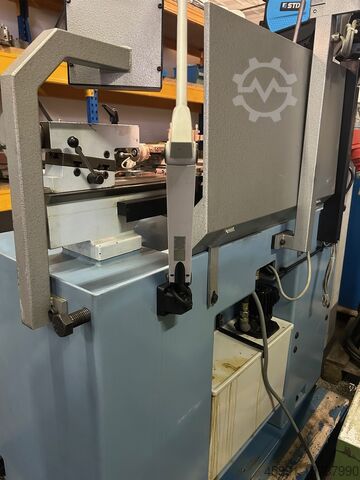

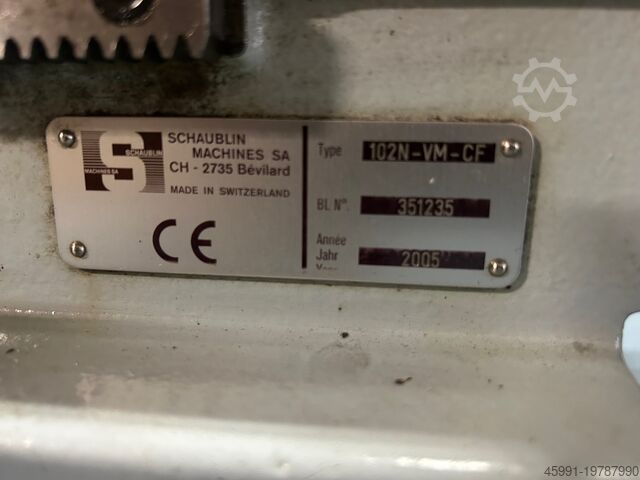

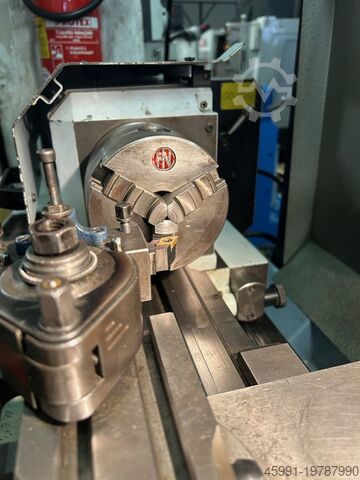

Condition: excellent (used), Year of construction: 2005, Schaublin 102N-VM-CF high precision Swiss lathe Year: 2005 max. admitted diameter over the bed 200 mm max. admitted diameter over the slides 120 mm Height of centers 102 mm Distance between centers 450 mm Bed length 1000 mm Bed height 168 mm Power 4.2 KW Spindle speed 100 - 3000 RPM Spindle W25 Transverse stroke, X axis 100 mm Resolution, X axis (radius) 0,01 mm Longitudinal stroke, Z axis 90 mm Resolution, X axis (radius) 0,01 mm Lead screw - 8 longitudinal feeds - Larger feeds possible when using the thread control for turning Max. cross section of tool shank (Multifix system) 10x10 mm Bar holder (MULTIFIX system) diameter 20 mm Height and side-adjustable tailstock: Internal taper of the sleeve Mk2 Spindle OD 30 mm Spindle stroke 80 mm Coolant tank capacity 23 L Electrical power supply voltage 400 V Overall dimensions: length x depth x height: 1500 x 510 x 1550 mm Accessories / options: - ACU-RITE digital readout unit, 3 axis X-Z-Z1 X resolution 0.001[mm] Z resolution 0.005[mm] Z1 resolution 0.005[mm] - Coolant system - Rear sheetmetal guard - Double Start/Stop pedal and spindle rotation direction inversion - Schaublin W25 collet set - Cast iron chuck W25 Ø110[mm] with jaws - Quick-change toolholder turret MULTIFIX-A with holders - Driving system for auxiliary equipment with BELT adjustable and swivelling belt-tensioning attachment drive device complete with motor Nsdpsw N Rh Aefx Ab Iscl belt Ø6x2’500[mm] - Tailstock - etc... Under power in our warehouse.

Condition: used, Year of construction: 1959, turning diameter over bed 460 mm turning diameter over slide rest 280 mm turning length 1000 mm centre height 230 mm 720 mm spindle bore 53 mm spindle turning speed range 28 - 1250 U/min total power requirement 4,0 kW weight of the machine ca. 1,8 t dimensions of the machine ca. 2,4 x 1,4 x 1,75 mm Lathes with: - Digital display - Quick-release tool post Ncedpfx Abjxpi A Dj Isl - 3-jaw chucks (200 mm and 160 mm) - Chip tray - Centering center

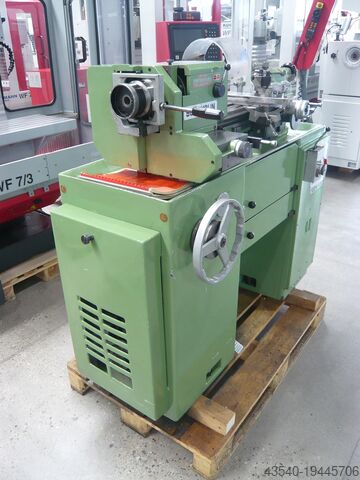

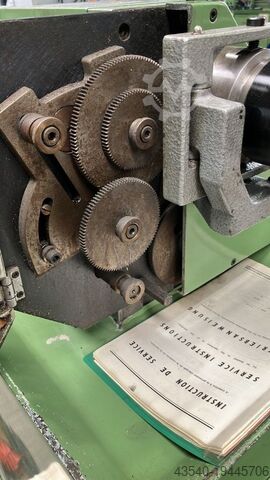

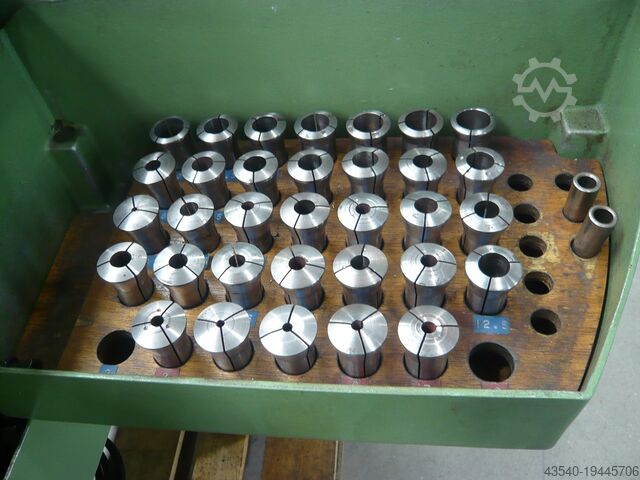

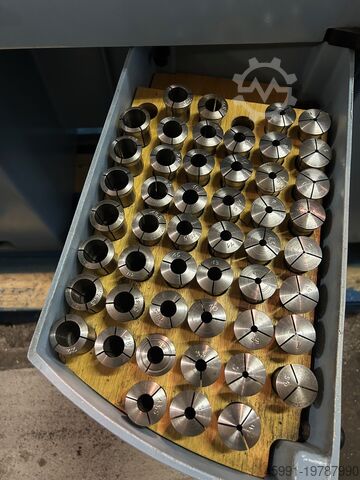

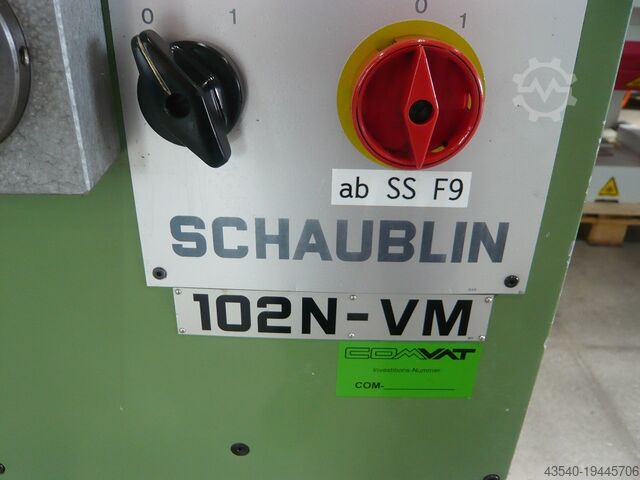

Condition: excellent (used), functionality: fully functional, High-Precision Leadscrew Lathe Schaublin 102N-VM Technical Data: >> Machine No. 283152 >> Centre height: 102 mm >> Centre distance: 450 mm >> Spindle bore: 25 mm >> Longitudinal feeds: 8 steps from 0.02 to 0.3 mm/rev >> Metric threads: 20 pitches from 0.25 to 4 mm >> Imperial threads: 25 pitches from 80 to 6 TPI >> Tailstock: Morse taper 2 >> Infinitely variable speeds from 270–3000 rpm >> Weight: approx. 700 kg Accessories: >> 3-jaw chuck, 2 sets of jaws >> Tool post with 6 tool holders >> Quick-clamping device, draw tube and 34 collets >> Coolant system >> Cutting tools, drill chuck (see images) >> Operating manual with spare parts list About the machine: Ncsdpfowvq Tmex Ab Iel For sale is a Schaublin 102VM leadscrew lathe in very good condition. The machine is, of course, fully functional. All slides operate smoothly and evenly. The 102VM runs quietly even at high speeds. The gear set for thread cutting is present, but is probably not complete. Take the opportunity to view and test the machine under power on site and see its good condition for yourself.

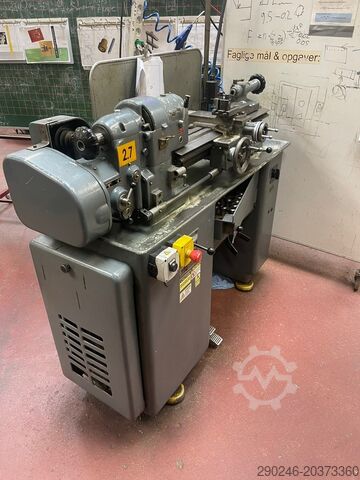

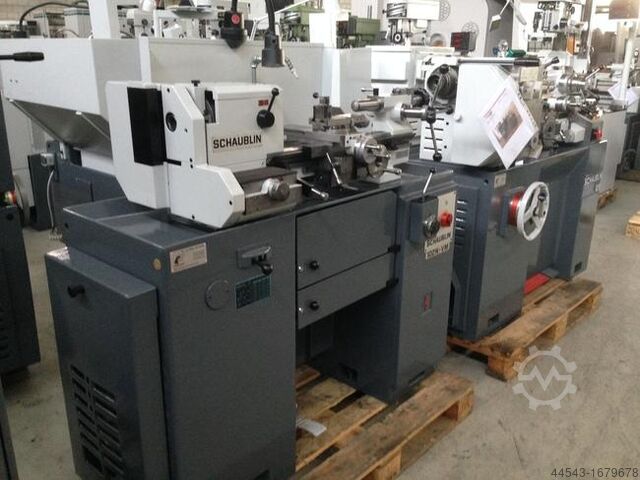

Condition: good (used), Center height 102 mm Distance between centers 450 mm Leit.- / feed shaft Collets W20 available Speed: about 210 - 3000 U / min reducer gear Left.- Rightrunning 2-Multistage drive L x B x H: approx 1760 x 595 x 1230 mm Weight: 650 Kg Different "Schaublin 102" models in stock! Nsdscug H Sepfx Ab Iecl

Condition: excellent (used), Henri Hauser M5 DR jig boring machine spindle diameter 90 mm x-travel 700 mm y-travel 500 mm Drilling capacity in steel 40 mm spindle mounting MK 4 drilling spindle stroke 170 mm number of spindle revolutions 2 infinitely variable 10-2000 rpm Boring diameter max. 230 mm Table dimension - longitudinal 900 mm Table dimension - crosswise 770 mm Vertical travel of cross beam 630 mm Nedog Ibuxopfx Ab Iscl Drilling spindle 6 pieces from/to 0.02-0..20 rpm Clearance between uprights 900 mm Passage between spindle and table 815 Spindle motor 4.0 HP Total power requirement 380 V Machine weight approx. 3.9 t Complete factory closure, large selection of storage platforms, pallet racks, shelf racks, paternosters. High-quality industrial machines, lathes, grinding machines, hand machines Further articles - new and used - you will find in our shop! International shipping costs on request!

Condition: used, Workspace Tip height 102 mm Centre width - with normal headstock 450 mm - with reduction gear headstock 375 mm - over the cheek 200 mm - over the slide 120 mm Headstocks spindle nose for collets type Schaublin W25 Nedpfxebxkl Ts Ab Iecl spindle bore 25 mm Collet bore 20 mm Reduction ratio of the gearbox 1:5 Cheek Height x width x length 168 x 130 x 1000 mm cast iron cheek, trapezoidal profile like lathe 102 N and dovetail guide hardened and ground. Slide Largest travel on the cheek 400 mm Tool slide width - length 80 - 194 mm Path manual adjustment 90 mm Center height above tool slide 20 mm Shaft of the lathe tools 12 x 12 mm cross slide width - length 94 - 300 mm Path manual adjustment 100 mm Bed slide length of the guide on the cheek 250 mm Lead screw Guiding spindle for longitudinal turning and threading, Ø 40 mm Lead screw hardened, thread ground, pitch 4 mm Speed range Speed 270 - 3000 rpm Longitudinal turning 0.02 - 0.3 mm/rev. Thread cutting Largest pitch with standard change gear set 4 mm Machine plate for 20 metric pitches 0.25 - 4 mm Machine plate for 25 english pitches 80 - 6 G/" Tailstock Diameter of the quill 30 mm Inner taper of the quill 2 MORSE Distance of the quill 80 mm Cooling device Coolant tank - capacity 23 litres Net weights Lathe on workbench, approx. 225 kg Lathe on box base, approx. 550 kg

Condition: used, operating hours: 338 h, power: 38 kW (51.67 HP), gearing type: mechanical, fuel type: diesel, first registration: 12/2021, overall weight: 3,000 kg, mileage: 336 km, empty load weight: 1,925 kg, axle configuration: 2 axles, tire size: 250/80R18, tire condition: 85 %, number of seats: 2, wheelbase: 1,460 mm, Equipment: additional headlights, air conditioning, cabin, cruise control, fog lights, front power take-off, SRX 5800 TORA with REDCAB cabin | Note: with adjustable rims | Comfortable RED-CAB cabin with wide-opening doors | RevGuide reversible seat system | ACTIO chassis – for optimal ground adaptation | 4-cylinder 16V YANMAR turbo diesel engine with common rail direct injection | Synchronized 32-speed shuttle transmission with 16 forward and 16 reverse gears | PTO 540 and 540e | Radio | Air conditioning | Subject to error, input mistakes and prior sale Nsdpfx Aoxnbfneb Iocl

Condition: used, Year of construction: 1966, turning diameter over bed 330 mm turning dia. in gap 400 mm turning length 600 mm centre distance 750 mm Nodpfx Abjxrg Atj Ijcl spindle turning speed range 20 - 1000 U/min spindle bore 25 mm 3-jaw chuck Röhm, Ø 200 mm dimensions of the machine ca. 2000 x 800 x 1500 mm weight of the machine ca. 1200 kg Fixed bezel Turning bezel Turning center point Three-jaw chuck Röhm, Ø 200 mm, incl. inner and outer jaws Quick-change tool holder Original Multifix size B with 2 change holders Spindle brake Tailstock quill MK3 Machine feet Lathe chuck guard Chip guard Work light

Condition: used, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 120 rpm, table length: 550 mm, table width: 320 mm, spindle mount: MK 2, total height: 1,500 mm, total length: 1,400 mm, total width: 2,100 mm, rotational speed (min.): 120 rpm, rotational speed (max.): 3,000 rpm, drilling capacity: 75 mm, distance between stands: 600 mm, spindle motor power: 551 W, For sale is a Hauser brand coordinate drilling machine of type OP3 The machine is ready for use and fully functional Technical data: HAUSER OP3 coordinate drilling machine Table: 550 x 320 mm Longitudinal travel: X-axis 400 mm Cross travel: Y-axis 250 mm Vertical travel: Z-axis 400 mm Cone in the spindle: MK 2 Drilling capacity in steel: 20 mm Nsdpfjvzrx Nex Ab Iocl Stroke of the drilling spindle Z-axis: 130 mm Bore diameter: max. 75 mm Distance from table to spindle: 600 mm Spindle speeds: infinitely variable: 120- 3000 rpm Feed rates: Drill spindle slide: Number (steps) 2, 0.03 mm/rev 0.06 mm/rev Spindle motor: 0.75 HP Machine weight: approx. 1500 kg Dimensions: 1400x1500x2100 Transport and loading can be organized throughout Europe on request for an additional charge. Prices plus VAT Viewings possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit us on our website
