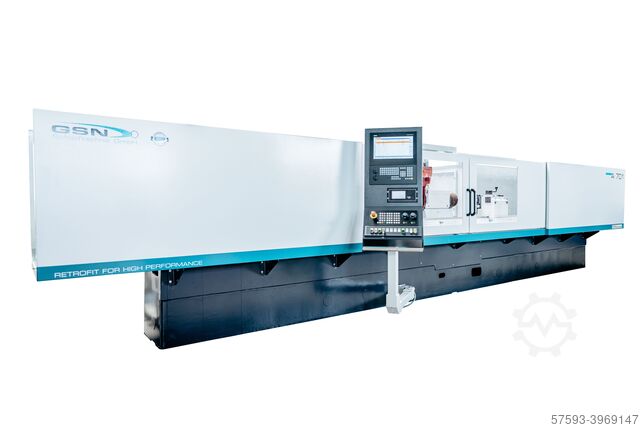

Cylindrical grinding machine

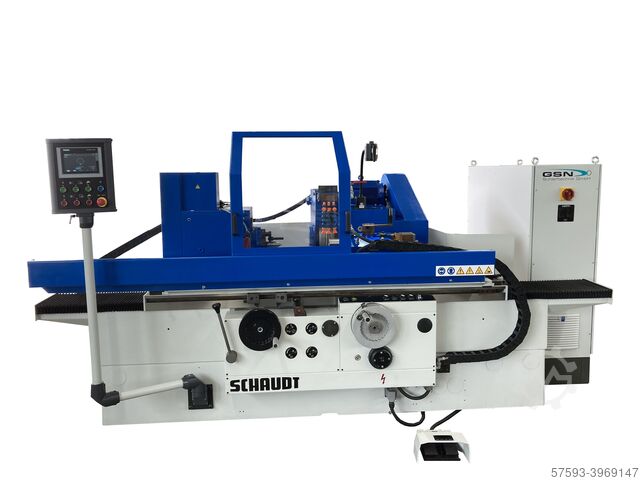

Schaudt A500 500-2500

Condition: new, functionality: fully functional, IG 482 SD Specifications Motors Grinding Spindle Motor 50HP, 200 - 1180RPM Rotary Table Motor 3HP, 5 - 70RPM Servo Column Motor 5KW Coolant Pump 3/4HP, 45GPM Table Diameter 48" Table Features Thru-spindle vacuum/pressure feed Variable strength 3/4" fine pole electromagnetic chuck Contact a DCM Technical Specialist for custom table & fixturing options Lredpfxeubbqie Akyek Capacity Max Swing Diameter 52" Max Part Height 12" with grinding segments retracted 10-1/2" with a 2A2T wheel Grinding Wheel Options 2A2T Suberabrasive or Conventional Segments 26" diameter Cortland Style Hub & Segment 26" diameter Ask a DCM Technical Specialist about our wide variety of available abrasives Feed System Servo driven Z-axis with precision ballscrew and encoder Feedrate variable from 0.0006 IPM to 0.1000 IPM Servo drive X-axis for precision positioning Electrical Requirements 460V, 50/60Hz, 3 phase Consult DCM Technical Specialist regarding operation on other voltages Dimensions 137" wide, 82" deep, 88" high Weight Machine & Swarf System: 14,500lbs. (estimated) Electrical Box: 1,500lbs. (estimated) IG 482 SD FEATURES • 48” variable speed electromagnetic chuck with auto demag cycle • 50HP grinding spindle motor • Integral coolant filtration & mist collection systems • Easy to operate touchscreen controls • Mitsubishi FX5U PLC • 3 Grinding Modes - Conventional, Incremental and Grind to Height • Regrind feature allows re-running previous grind sequence without reprogramming • Continuous grind – the machine can automatically cycle through grind 1, 2 & 3 • Servo-driven precision control of both Z and X-axis with absolute home positioning • The cross slide X-axis moves with manual pulse generator • Backlash compensation on both axes • Password protection & operator lockout features • SECS/GEM Interfaced to work with 3rd party Scada type software • Password protection and operator lock-out features • Automatic routine maintenance reminders • 120" x 82" Footprint

Condition: ready for operation (used), Year of construction: 2014, operating hours: 3,971 h, spindle speed (max.): 6,300 rpm, travel distance X-axis: 100 mm, travel distance Z-axis: 300 mm, spindle motor power: 5,500 W, total width: 1,700 mm, overall weight: 1,400 kg, controller manufacturer: SIEMENS, controller model: Sinumerik 828D, number of axes: 2, Horizontal turning machine manufactured in 2014. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available. • Availability: 2 units • Working range: • Swing over bed: 250 mm • Max. turning diameter: 85 mm • Max. turning length: 225 mm • Max. bar capacity: 25.5 mm • Distance between centers: 405 mm Ljdpfoymqmmox Akysrk • Main spindle & drive: • Spindle connection: Ø 70 h5 • Max. chuck size: Ø 100 mm • Max. torque: 35 Nm • C-axis resolution: 0.001° • Tooling system: • Turret type: VDI 16 disk turret with directional logic • Number of tool stations: 12 • Tool shank cross-section: 12 x 12 mm • Feeds & axis performance: • Feed force (X / Z): 3000 N / 3500 N • Rapid traverse (X / Z): 15 m/min / 24 m/min • Positioning spread (Ps): 3 µm • Physical dimensions Utilities: • Supply voltage: 400 V (3/PE) • Total connected load: 6 kVA • Coolant tank capacity: 140 liters • Sound pressure level: 78 dB(A) Additional equipment • Chip conveyor Dimensions Machine Depth 1270 mm

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, Technical details turning diameter 356 mm turning length 510 mm control M 730 BM travel -x axis 260 mm travel -y axis -50 / +50 mm travel -z axis 590 mm Travel subspindle (B) 624 mm bar material dia. 65 mm main spindle speeds: 5000 Ljdpfxeyzzi Ns Akyerk transmission ratio 2 power capacity 15 / 11 kW Subspindle spindle speeds 6000 power capacity 11 / 7,5 kW rapid traverse (X,Y,Z,B) 30/10/30/30 m/min weight of the machine ca. 6,6 t Additional information * CNC control Mitsubishi M 730 BM * Mainspindle with 3-jaw power chuck KITAGAWA N-08, diameter 210 mm * Subspindle with 3-jaw power chuck HAINBUCH B-TOP 165-43 * 12-station turret, tool spindle speed 10000 rpm, power 5.5/3.7 kW * Y-axis travel * C-axis * High/low pressure chuck system for main and subspindle * MABEO high-pressure pump with 1.5 MPa filter unit * Coolant sprayer on the chuck for main and subspindle * Coolant sprayer for the machine bed cladding * Oil mist separator * Chip conveyor * Renishaw workpiece measuring system with optical signal transmission, subspindle * Cooling of the ball screw in the X-axis * Gantry loader, left-hand installation, 14-station storage, 20-pallet workpiece storage, Double gripper conveyor

Condition: used, Year of construction: 2005, functionality: fully functional, For sale: CNC Turning Center EMCO Turn 325-II (Year 2005) Lrjdpjxp Iyhsfx Akyek Condition: Good, technically sound. Manufacturer: EMCO Maier GmbH (Austria) Model: Turn 325-II Year of manufacture: 2005 A compact and reliable CNC turning center suitable for metal part machining, threading, and milling in small to medium-sized production runs. Main technical specifications: (based on EMCO Turn 325-II model specification) Control: Siemens Max. turning diameter: 250 mm Max. turning length: 500 mm Spindle speed: up to 5000 rpm Tool turret: 12 positions (automatic tool changer) Max. tool length: 100 mm Motor power: approx. 15 kW Cooling: integrated cooling system Power supply: 400 V / 50 Hz Machine weight: approx. 3500 kg If you have additional questions, we are happy to assist.
