Cylindrical grinding machine

Schaudt

Condition: used, Year of construction: 1980, Technical details: grinding diameter: 380 mm grinding length: 1000 mm centre height: 180 mm grinding wheel diameter: 400 mm max. workpiece weight between centres: 250 kg total power requirement: 10 kW weight of the machine ca.: 4,1 t dimensions of the machine ca.: 3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank Djdpfxjwy Ri No Advjun *

Condition: used, Technical details: grinding diameter: 600 mm grinding length: 2600 mm centre height: 180 mm workpiece diameter - max.: 360 mm swing diameter: 600 mm grinding wheel diameter: 600 x 305 x 160 mm total power requirement: 17,6 kW coolant device: 90 l/min work piece spindle speed: 12,5-250 U/min feed continuous: 0,05 - 6,0 mm weight of the machine ca.: 8,2 t dimension machine xH: 6,4 x 2,2 x 1,9 mm Dujdpfxsw Rktbs Advon Final balance balancing device Tailstock with cylinder error correction Digital display X=0.001 - Z=0.01 Radius device 2-10 mm *

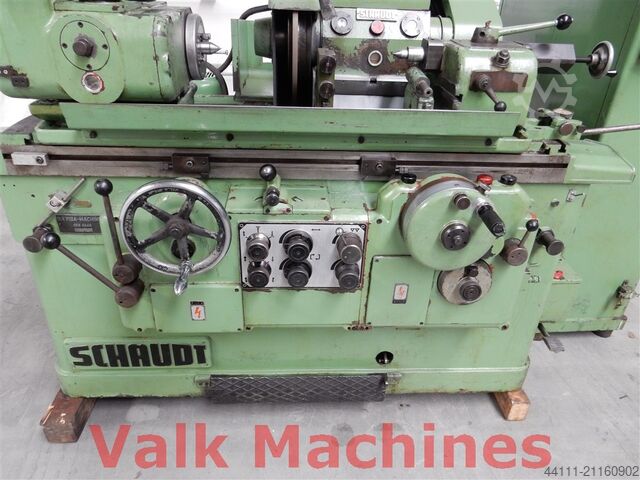

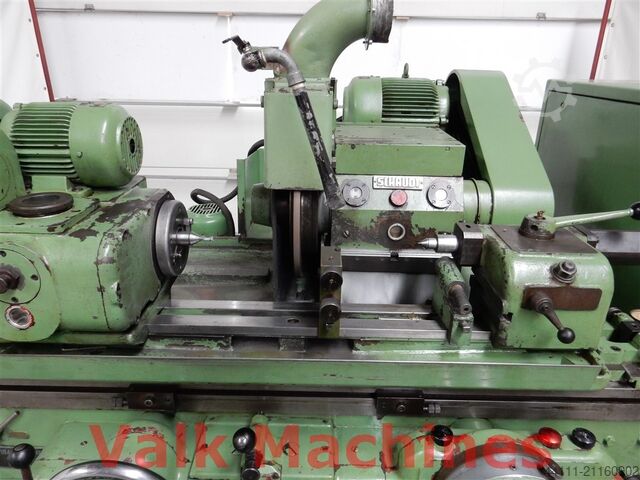

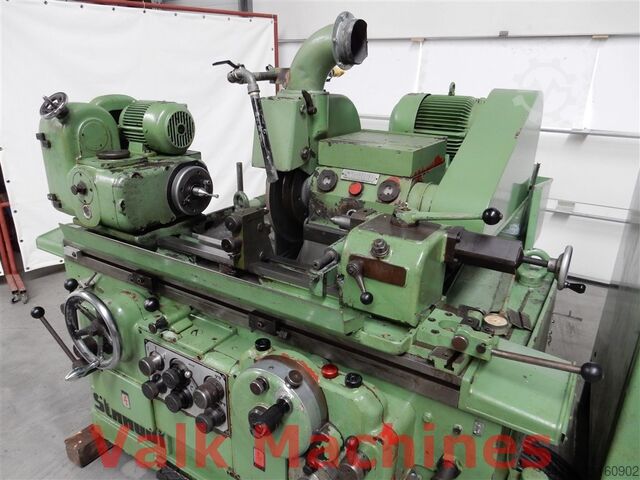

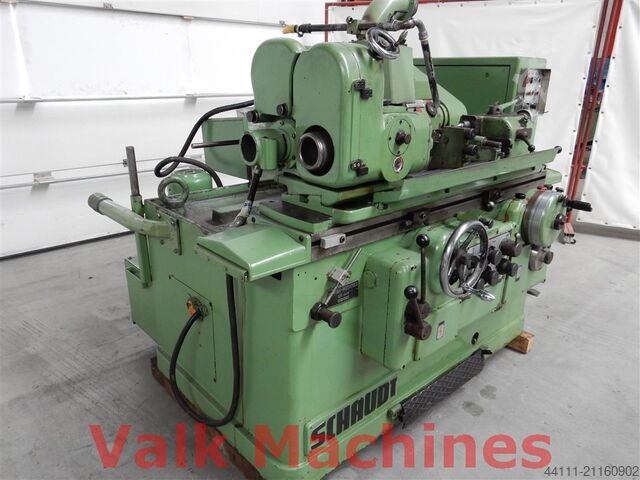

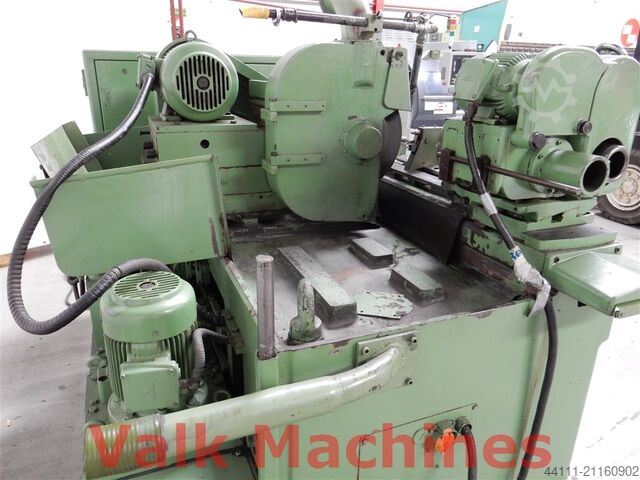

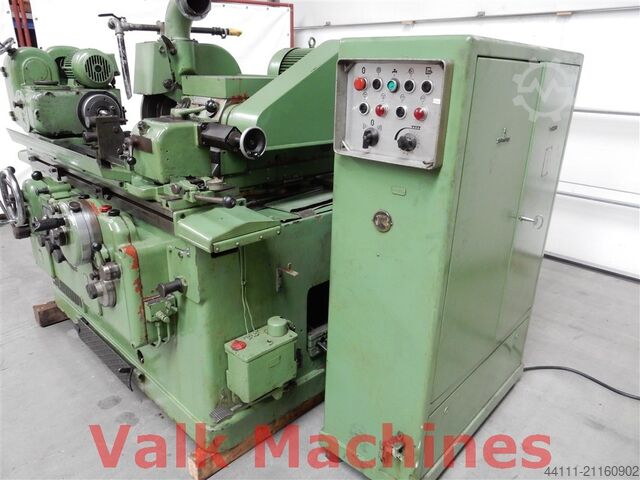

Condition: good (used), functionality: fully functional, grinding length: 500 mm, grinding wheel diameter: 400 mm, total width: 1,700 mm, total length: 2,300 mm, total height: 1,700 mm, grinding diameter: 300 mm, distance between centers: 500 mm, Grinding length: 500 mm Grinding diameter: 300 mm Grinding wheel diameter: 400 mm Featured with: - Steady - Grinding wheels Dusdpfx Aoyg E Thsdvsn Country of origin: Germany Machine LxWxH: 2300 x 1700 x 1700 mm Machine weight: 3500 kg

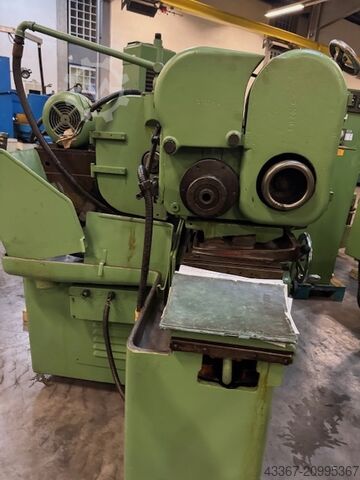

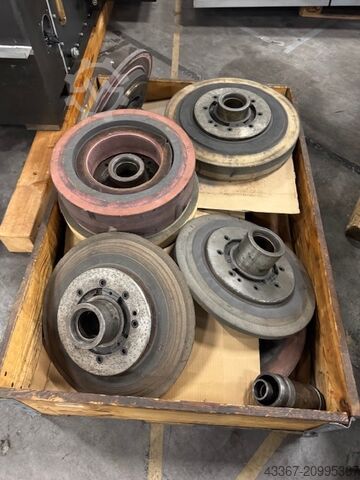

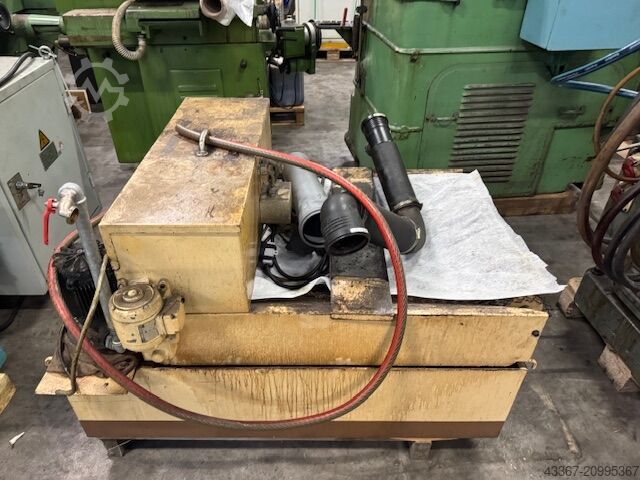

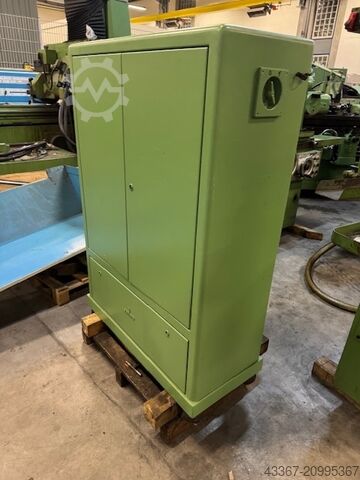

Condition: good (used), Used external cylindrical grinding machine Fab. SCHAUDT AR 750 with coolant tank Dujdpfx Adsya Dlisvon

Condition: excellent (used), Year of construction: 1980, functionality: fully functional, grinding length: 2,000 mm, grinding diameter: 630 mm, grinding diameter 630 mm grinding length 2000 mm centre height 315 mm grinding wheel diameter x bore x width 750 x 100 x 305 mm grinding wheel dia. according abrasion 610 mm swing in open rest 250 mm swing in closed rest 350 mm taper bore of workpiece spindle Dujdpfxoydd H Uo Advsn 6 Morse taper of tailstock quill 6 Morse Diameter of chuck ca. 315 mm 100 mm

Condition: used, Year of construction: 1997, grinding diameter 600-750 mm grinding length 600 mm weight of the machine ca. 10 t dimensions of the machine ca. 5600x4600x3000 mm Retrofit 2019 Workpiece length: max. 600 m Djdpfeyat Hpjx Advsun Workpiece diameter: max. 350 mm Workpiece weight: max. 200 kg Power supply: 400 V Frequency: 50 Hz Power consumption: max. 35 kVA Grinding wheel diameter: 600-750 mm Grinding wheel thickness: 100-280 mm Weight with flange: approx. 300 kg Peripheral speed: 45 m/s max.

Condition: used, Year of construction: 1960, grinding diameter ca. 360 mm grinding length 1500 mm serial number 12013 Dusdpjw Sya Tofx Advon

Condition: excellent (used), Year of construction: 1961, Cylindrical Grinding Machine 3A164A Maximum workpiece diameter for mounting, mm: 400 Dedpfx Aeya U Uzedvsun Maximum workpiece length for mounting, mm: 2800 (2920)

Condition: used, Spare or accessory parts for SCHAUDT. Parts stored for a longer period; the flanges are definitely from a SCHAUDT cylindrical grinding machine. All other parts may belong to a SCHAUDT, but no guarantee is provided for this! Duedex S Hz Espfx Adven

Condition: used, Year of construction: 2002, operating hours: 65,434 h, General Specifications Machine Type: Universal Cylindrical Grinding Machine Year of Manufacture: 2002 Control System: SIEMENS 840D Grinding Length: 600 mm (between centers) Max. Swing Over Bed: ~300 mm (approximate, depending on configuration) Max. Workpiece Weight: ~150 kg (depending on setup) Grinding Wheel Grinding Wheel Diameter: ~400-500 mm (standard) Grinding Wheel Width: ~50-100 mm (depending on application) Grinding Wheel Speed: ~30-60 m/s (adjustable) Dsdsvzriuepfx Advoun Workhead Workhead Spindle Speed: ~10-500 rpm (variable, depending on workpiece material and grinding requirements) Workhead Spindle Taper: Typically Morse taper or custom taper for specific applications Tailstock Tailstock Quill Travel: ~50-100 mm (adjustable) Tailstock Taper: Morse taper (e.g., MT4 or MT5, depending on configuration) CNC System Control Type: Siemens, Fanuc, or other CNC systems (depending on configuration) Axes: Typically 2-4 axes (X, Z, U, and optionally B-axis for angular grinding) Positioning Accuracy: ~0.001 mm (1 micron) or better Coolant System Coolant Tank Capacity: ~200 L Coolant Pump Power: ~1-2 kW Power Requirements Main Motor Power: ~10-15 kW (grinding spindle) Total Power Consumption: ~20-30 kW Dimensions and Weight Machine Dimensions (L x W x H): ~3000 x 2000 x 2000 mm (approximate) Machine Weight: 5000 KG Applications Precision grinding of cylindrical and non-cylindrical workpieces Suitable for small to medium-sized components in industries like automotive, aerospace, and tool manufacturing

Year of construction: 2024, condition: refurbished (used), functionality: fully functional, Grinder for shafts and bores after complete overhaul and reconstruction. Dusdpfjfhk Iusx Advjn

Condition: used, Year of construction: 1994, Technical details: grinding diameter: 300 mm grinding length: 600 mm Dedpfevgbzdsx Adveun centre height: 190 mm z-axis: 865 mm x-axis: 250 mm clamping length: 1000 mm peripheral speed: 45 m/sec grinding slide swivable +/-: 8 ° grinding wheel width x diameter: 80 x 508 mm work piece spindle speed: 1 - 800 U/min weight of the machine ca.: 5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device *

Condition: good (used), Year of construction: 2002, operating hours: 9,999 h, functionality: fully functional, machine/vehicle number: 120231, Cylindrical Grinding Machine SCHAUDT / Mikrosa PS 51 N 600 Technical Data – Schaudt / Mikrosa PS 51 N 600 Machine type: Universal / External Cylindrical Grinding Machine Year of manufacture: 2002 Control: Siemens 840D Grinding length (between centers): 600 mm Center height / Height over bed: 180 mm Maximum grinding diameter over bed: approx. 300–360 mm Max. workpiece weight (between centers): approx. 150–200 kg, depending on configuration Grinding spindle power: approx. 22 kW Dodexdb R Nspfx Advoun Grinding wheel width: e.g., 220 mm on premium versions; diameter depending on equipment approx. 400–500 mm Grinding wheel speed / surface speed: On some versions approx. 45 m/s; variable depending on equipment Total weight: approx. 10 t
