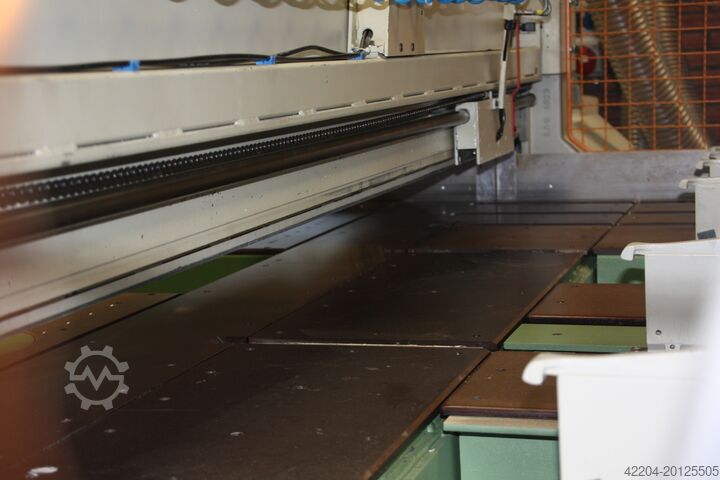

Panel saw

SCHEER PA 4115

Panel Dividing System PA 4115 – 3100 x 3100 DNC-AT

Condition: Completely overhauled
Warranty: 1-year warranty

Technical Specifications:

Left-angle stop according to AGA 4383

Longitudinal Saw FM 16-3100:

- Hardened guides
- Automatic forward and return travel of the saw unit
- Return travel with automatic lowering
- Feed speed: 2–50 m/min (stepless adjustment via potentiometer)
- Return speed: 70 m/min (rapid traverse)
- Integrated extraction channels in the machine base and pressure beam
- Scoring saw adjustable from outside (without opening the safety hood)
- Saw unit with controlled DC drive:
- Precise positioning (e.g. for cutouts)
- Slowed extraction from the cut
- Includes safety hood locking, SZ 5008 lamella curtain
- Offcut device SP 5004 – Offcuts down to at least 5 mm
- Main saw motor: 7.0 kW
- Scoring saw motor: 1.1 kW (can be switched off separately)
- Cutting length: 3100 mm
- Cutting height: 70 mm
- Dust tested: Threshold of 2 mg/m³ is significantly undercut
- CE compliant

Angle Pressure Device WP 5003:

- With pressure claw for cross cuts
- Adjustment range up to 2400 mm
- Semi-automatic function

Material Feed Table HP 5021 (mounted at rear of FM 16):

- Parallel fence with 6 spring-loaded clamping fingers
- Direct drive of material pusher via servo motor
- Table surface with closed Pertinax panels (suitable for narrow strips)
- Feed speed: 25 m/min (safety limited)
- Return speed: 40 m/min
- Table length: 3100 mm
- Stop depth: 3100 mm

Multi-microprocessor control
Integrated PC with hard disk
Operating system: LINUX
Interfaces: serial + parallel, USB
Network connectivity (also wireless LAN)
Optimize cutting plans in the office and send directly to the machine
Multitasking capable
Printing function via USB
Remote maintenance via Internet (Remote Desktop, TeamViewer)
Multilingual dialog programming
15” flat screen + multifunctional keyboard
Swiveling control panel
Graphical representation of cutting plans and work processes

Additional Equipment:

Angle Stop Table HP 5043 (front mounted):
- Machined steel angle, Pertinax table top
- Table size: 1800 × 800 mm

Workpiece Support Table HP 5025 (front mounted):
- Pertinax surface
Chjdpfx Aboxhg Ibowoc
- Table size: 1800 × 800 mm

Air Cushion Device LK 5030
- Integrated into HP 5043 and HP 5025

Accessories:

- 1 Circular saw blade KSB 4005 – Ø 305 mm, Z=60 (for main saw)
- 1 Circular saw blade KSB 4006 – Ø 200 mm, Z=60 conical (for scoring saw)
