Machine Overview: Schlatter MG900 MG12 Mesh Welding Machine - "Offical Expose upon request"

The Schlatter MG900 is a powerful and refurbished resistance welding machine, specifically designed for the production of wire mesh panels. With a width capacity of up to 1250 mm and a length of 3000 mm, it handles wire diameters of up to 12 mm. This machine has undergone extensive modernization to deliver maximum efficiency and flexibility in production.

Main Components
Dedpevtg Sbsfx Aghoku

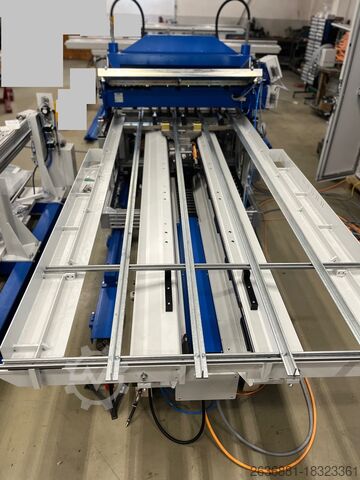

• LV - Longitudinal Wire Feeder
o Upgraded with a high-precision servo axis
o Hopper magazines for longitudinal wires up to 3000 mm
• MG12.4 - Mesh Welding Unit

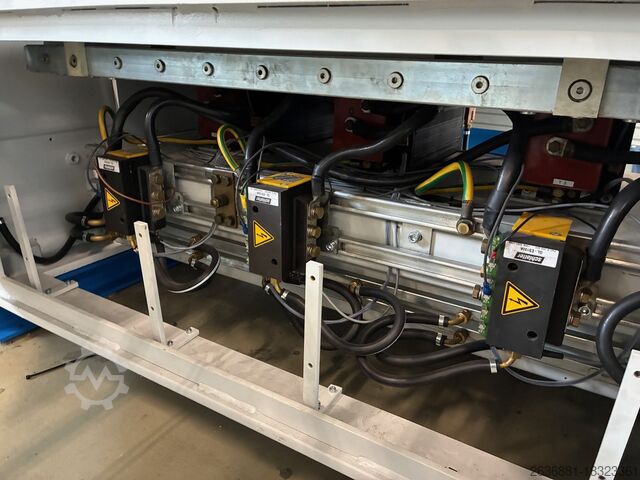

o Equipped with 3 to 6 transformers.
o Up to 12 Schlatter welding presses with a capacity of 5 kN
•QFD34 - Cross Wire Feeder
o Allows for double cross wire insertion for two different cross wire diameters / length, *Note: The second level is not yet installed in the photos
• MVL - Mesh Extraction Unit
o Controlled by a new MS2N Servo Motor from Bosch Rexroth CrtlX
o Equipped with four Schlatter mesh grippers (expandable upon request)

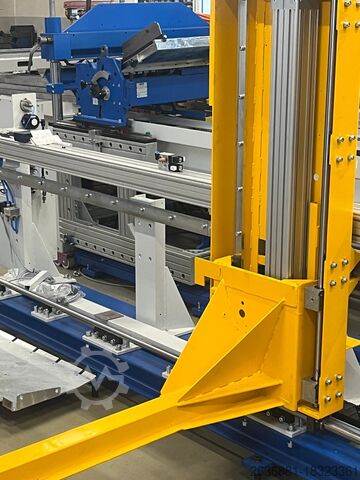

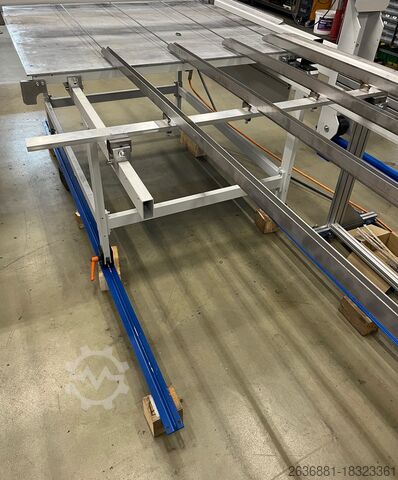

• MS - Mesh Stacker
o Automatically stacks mesh panels with a travel path of up to 3100 mm
• Control and Power Cabinet
o Siemens S7 TIA Control System
o Rexroth CrtlX Components for high-dynamic motion control

Specs:
• Mesh Width (Transverse Wire Length) max. 1250mm / min. 200mm
• Mesh Length (Manual Loading) max. 3200mm / min. 300mm
• Distance Between Outer Longitudinal Wires max.1200mm
• Longitudinal Wire Spacing 20 - 150mm
• Cross Wire Spacing min. 12.5mm
• Longitudinal Wire Diameter 2.0 - 10.0mm
• Transverse Wire Diameter 2.0 - 8.0mm
• Maximum Number of Longitudinal Wires max.24
