Gantry crane systemSCHMALZ - RYKO
Vacu-Master-Window mit Portalanlage
Machine data
- Machine type:
- Gantry crane system
- Manufacturer:
- SCHMALZ - RYKO
- Year of construction:
- 2015
- Condition:
- used
- Functionality:
- fully functional
Price & Location
- Location:
- Wilhelmstr. 5-7, 75203 Königsbach-Stein 2, DE
Technical details
- Overall weight:
- 2,500 kg
- Total height:
- 3,900 mm
- Total length:
- 8,500 mm
- Total width:
- 4,000 mm
- Load capacity:
- 500 kg
- Main lifting speed:
- 2,000 mm/min
- Throat depth:
- 2,800 mm
- Working height:
- 1,200 mm
Details about the offer
- Listing ID:
- A202-66435
- Update:
- 11.10.2025
Description

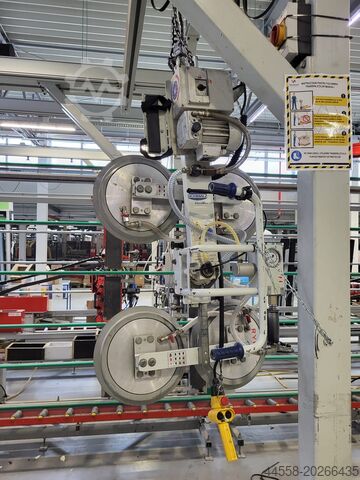

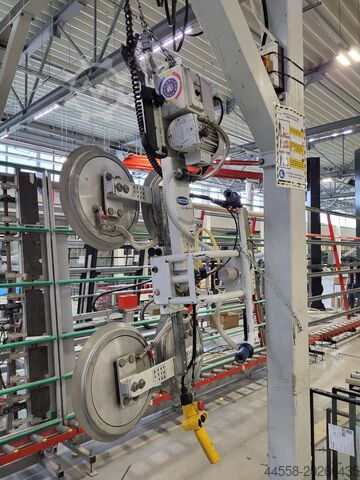

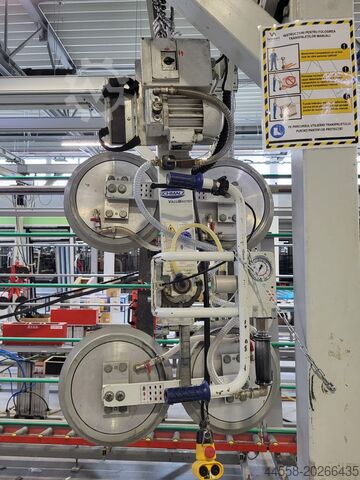

Load capacity: 350 kg. Design: rotates 90° left/right, height 1150 mm, handle length 400 mm, eyelet diameter 45 mm, number of suction pads: 4, diameter 300 mm, with electric vacuum pump, suction capacity 4 m³/h. Voltage: 230/400V AC3 (50Hz).
Smallest external suction pad dimensions: 610x630 mm + Largest external suction pad dimensions: 905x630 mm
ELECTRIC CHAIN HOIST:
AC3/50Hz, load capacity 500 kg, lift 3000 mm. Lifting speed max. 8 m/min, min. 2 m/min. Max. power input 0.72 kW, voltage U1 = 400V-AC3 - 50Hz, with pendant control. Control cable length 4.5 m. FEM/ISO classification 1Bm/M3.
CRANE SYSTEM
Runway profile: SRA180 - Beam profile: SRA140. Exceptionally low dead weight and exceptionally smooth operation
Vacuum lifter electric load capacity: 350 kg
Crane system load capacity per girder: 400 kg
Crane runway length L: 8,500 mm
Suspension distance L1: 4,000 mm
Crane runway suspension for I-beam width: 50–150 mm
Crane runway overhang L2: 200 mm / L3: 300 mm
Crane girder length B: 3,000 mm
Track gauge B1: 2,500 mm
Number of crane girders: 1
Travel path: 7.7 m x 2.6 m
3 PORTAL FRAMES
Height: max. 3,900 mm
Width: approx. 3,300 mm (external dimension of base plate)
Center-to-center spacing of supports: approx. 3,300 mm
4 x braces
Length: approx. 3,800 mm
Complete with all accessories
Site requirements:
Minimum concrete thickness: 200 mm
Fgodpfsxmtrdex Afpeh
Concrete type: C20/25
Paint finish RAL7035 light grey
Currently located in Oradea, Romania
The listing was translated automatically. Translation errors are possible.
