Milling machining centers - horizontal

SCHMID SE368 + SE371

A total of 3x Schmid 5-axis horizontal machining centers, complete with robots

Schmid SE368
Specifications
Year of manufacture: 2019 (approx. 4,400 operating hours)
Weight: approx. 21,000 kg
Control: Siemens Sinumerik 840 D SL
Spindles: 2 (HSK A63)
Spindle speed: 50–24,000 rpm
Axis travel (XYZ): 400 × 450 × 550 mm
Rapid traverse (XYZ): 75 / 40 / 90 m/min
Max. tool diameter: 75 mm (125 mm with free position)
Tool pockets: 2 x 30 positions

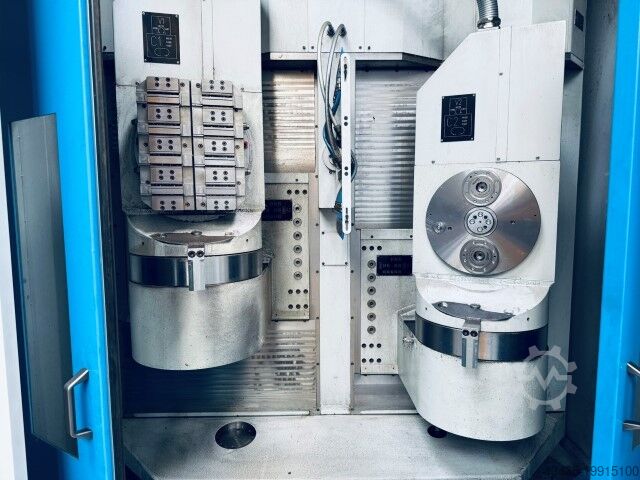

Table/attachments: Pallet changer + 2 x NC rotary-swivel units
Rotary table: 330–400 mm, ±150° swiveling
Additional systems: Chip conveyor, cooling, filter
Spindle power (kW/Nm): approx. 29–40 kW 27 Nm
Positioning accuracy: 0.008 mm
_____
Schmid SE371
Features
Year & condition: 2019, used (approx. 5,936 operating hours)
Weight: ±10,000 kg
Control: Siemens Sinumerik 840 D SL
Number of axes: 5
Spindle speed: 50–10,000 rpm
Tool interface: HSK A63
Tool changer: 30 positions (80 mm / 125 mm / 245 mm)
XYZ travel: 715 x 400 x 500 mm
XYZ rapid traverse: up to 50,000 mm/min
Table & rotary units: Pallet changer, 2 x NC rotary-swivel units, 360°, Ø 284 mm
Crodpfx Absw U Em Rewoh
Additional systems: Chip conveyor, filter, cooling, hydraulics, control cabinet
Main motor power: 20 kW (S1) / 26 kW (S6)
Spindle torque: 100/135 Nm • 24/31 Nm
XYZ acceleration: 4 / 6 / 9 m/s²
Tool change time: approx. 2.5 s
Rotary table swivel range: -22° / +95°
Machine footprint: approx. 3.5 x 5 m²
