Laboratory press – laboratory pressing machine

Schmidt Laborpresse MB 10 300

Schmidt Laboratory Press MB 10 300

Item description:
For sale is a high-quality Schmidt MB 10 300 laboratory press. The machine is in ready-to-operate condition and has been well maintained at all times. Ideal for laboratory applications, research, and precise pressing operations.

Technical highlights:
- Press force: max. 100 kN
- Retraction force: approx. 43 kN
- Operating pressure: approx. 200 bar
- Piston diameter: 80 mm, piston rod diameter: 60 mm
- Stroke: 300 mm

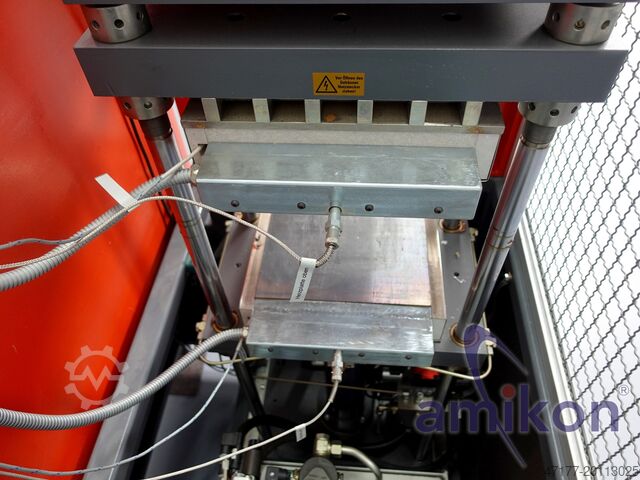

- Heating platens: 300 x 300 mm, electrically heated up to 200°C
- Heating power per platen: 3 kW
- Closing speed: 23 mm/s, opening speed: 0–25 mm/s manual / 60 mm/s automatic
- Hydraulics: Internal gear pump with 63 l/min, drive power 3 kW
- Electrical connection: 3 x 400 V, 50 Hz
- Control voltage: 24 V

Special features:
- 4-column vacuum design for stable guidance
- High-quality, precision-ground parallel heating platens
Crodexg Hybspfx Abwsh
- Separately controllable electronic temperature regulation with ±2 K accuracy (PT100)
- SIEMENS PLC control system with two-hand safety operation
- Automatic operation with programmable pressing and heating cycle
- Adjustable press stroke with upper and lower limits
- Clearly arranged control panel for easy operation
- Robust, durable construction with integrated thermal insulation

Dimensions and weight:
- Width: 1140 mm
- Height with safety door open: 1935 mm
- Depth: 1350 mm
- Operating height: 1110 mm
- Weight: 920 kg

Color scheme:
- Machine frame: slate grey RAL 7015
- Control cabinet & safety enclosure: red RAL 2002
- Functional components: galvanized

Condition: used
Scope of delivery: (see image)
- Schmidt MB 10 300 laboratory press
- Integrated PLC control with operator device
- Hydraulic unit and all function-related connections
(Changes and errors in technical data reserved!)

We will be glad to answer further questions by phone.
