Tool and cutter grinder CNC
SCHNEEBERGER GEMINI DMR

Name: SCHNEEBERGER GEMINI DMR
Brand: SCHNEEBERGER
Availability: InStock

Condition

Used

Location

Brügg

Tool and cutter grinder CNC SCHNEEBERGER GEMINI DMR

Show map

Machine data

Machine type:: Tool and cutter grinder CNC

Manufacturer:: SCHNEEBERGER

Model:: GEMINI DMR

Condition:: like new (used)

Price & Location

Seller location:: Industriestrasse 22, 2555 Brügg, Switzerland

Call

Details about the offer

Listing ID:: A205-78310

Reference number:: 021442

Update:: 20.11.2025

Description

SCHNEEBERGER GEMINI DMR is a Tool and cutter grinder CNC designed for precision, high accuracy and reliability. Capacities: centre height 210 mm; table 500×145 mm; travels X380 Y300 Z280 mm; grinding Ø 240 mm; wheel Ø50–250 mm; A 360°; C 210°. Specs: spindle nose HSK 50; spindle 50–10,000 t/min (stepless); feeds 20/5/20 m/min (long./cross/vert.); spindle power 9 kW; supply 3×400 V 50 Hz; total 27 kVA; weight ≈8000 kg; dims L2270×W1700×H2260 mm. Accessories: 3D probe, collets/flanges/wheel arbors, tailstock, coolant system, grinding-oil centrifuge, wheel set, CNC redressing cycle, slewable double grinding spindle, ELBARON oil-mist extractor, loading/unloading robot, fire extinguishing system. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, precision tooling, watchmaking.
Iodpfexyaahsx Ad Dotp

Documents

20578310-01.pdf
20578310-02.pdf
20578310-03.pdf
20578310-04.pdf

Seller

Last online: A week ago

Registered since: 2015

50 listings online

Call

Send inquiry

Telephone & Fax

+41 32 37... show

Fax:

These listings may also fit your interest.

Listing

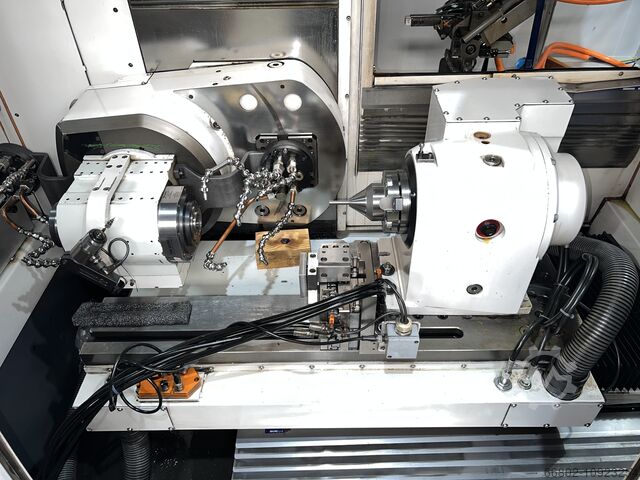

CNC tool grinding machine Schneeberger DMR Gemini

Zuchwil

7,953 km

CNC tool grinding machine
SchneebergerDMR Gemini

Call

Year of construction: 2003, condition: excellent (used), Schneeberger DMR Gemini CNC tool grinding machine TECHNICAL DATA Control: GE Fanuc 160, 5 axes simultaneous Software: Schneeberger Quinto Measuring system X,Y and Z axis: 0.1 μm A-axis: 0.0001° C axis: 0.0001° Grinding head Power: 15 kW speed: 50 - 10`000 rpm spindle nose: HSK 50 Max. wheel diameter: 250 mm Max. Number of grinding wheels: 6 Linear axes X-axis, travel: 380 mm feed speed: 20`000 mm/min resolution: 0,0001 mm gear ratio: 1 : 1 Power: 1,0 kW / 3 Nm Y-axis, travel: 300 mm feed speed: 5`000 mm/min resolution: 0,0001 mm Gear ratio: 24 :4 Power: 1,6 kW / 8 Nm Z-axis, travel: 280 mm feed speed: 20`000 mm/min resolution: 0,0001 mm gear ratio: 1 : 1 Power: 1,0 kW / 3 Nm Rotary axes C-axis: 210 ° Speed: 72 ° / s Resolution: 0,0001 ° Power: 1.6 kW / 8 Nm Itodpemqni Aefx Ad Dep C` axis: +- 180 ° Speed: 90 ° / s Resolution: 0,0001 ° Infeed: Hydraulic A axis: +- 360 ° Speed: 225 ° / s resolution: 0,0001° Power: 1,0 kW Nose: ISO 50 Center height: 210 mm Dimensions and weight Length: 1700 mm Depth: 2270 mm Height: 2260 mm Weight: 8`000 kg We do not guarantee the accuracy, completeness and timeliness of the information.

See details

Listing

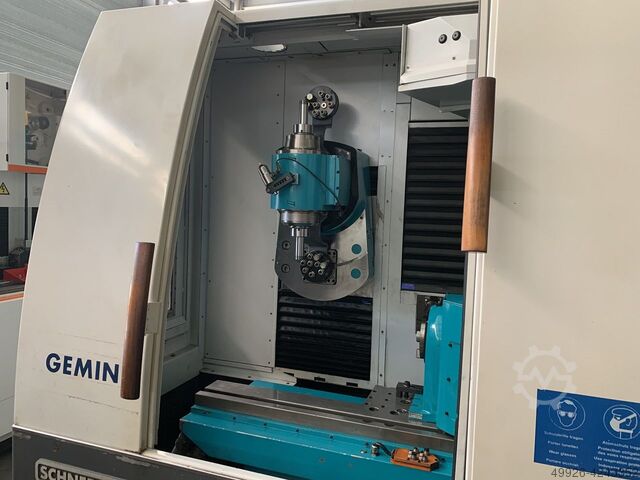

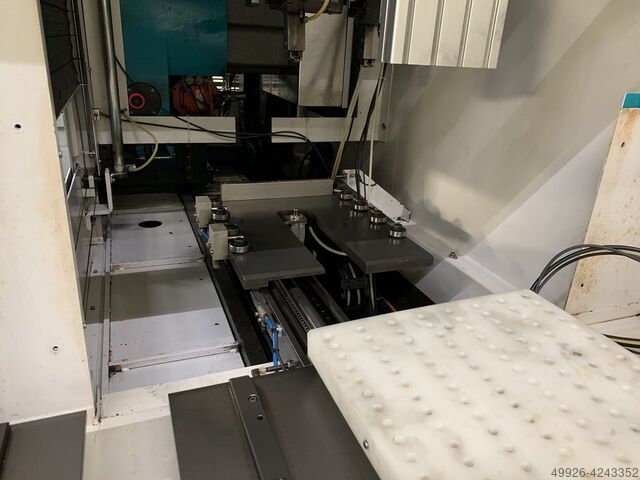

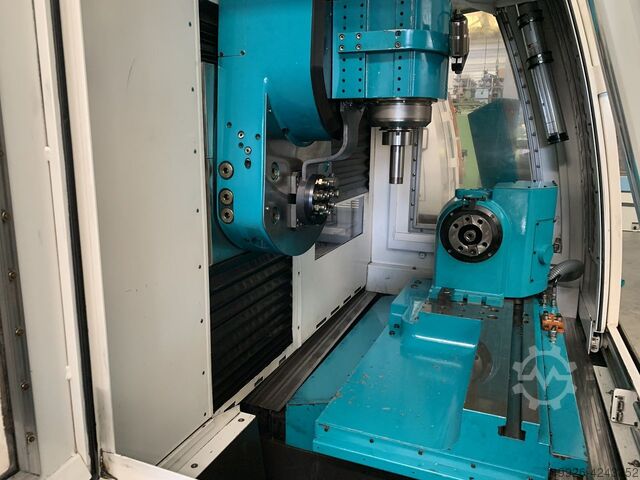

CNC SHARPENING MACHINE Schneeberger GEMINI DMR
