Sheet Metal Shear

Schneider

Condition: used, total height: 2,650 mm, total length: 4,700 mm, total width: 2,100 mm, Empty weight: 5.500 kg Price: On request - Documentation available: No - CE certificate present: No - Drive system: Conventional - X-axis travel [mm]: 1500 - Y-axis travel [mm]: 800 - Z-axis travel [mm]: 700 - Table width [mm]: 1200 Iedpfx Agjx Dkggedetd - Table depth [mm]: 400 - Magnet width [mm]: 1200 - Magnet depth [mm]: 300 - Options: Digital readout - └ Type of digital readout: Heidenhain - Control: Conventional - Transport dimensions: 4700mm x 2100mm x 2650mm (l x w x h) - Transport weight [kg]: 5500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1991, Used machine Year of manufacture: 1991 Equipment and technical data: - Designed for all window tooling systems up to 400 mm tool diameter - The machine can be stopped in just a few seconds thanks to the standard braking systems (foot brake for slot spindle, automatic electronic safety brake for saw) - The protective covers for the slot spindle and crosscut saw are designed to allow easy and straightforward tool changes without having to remove the covers themselves - The crosscut saw can be conveniently adjusted from the operator's position using a quick adjustment feature. A six-position turret head allows for rapid changeover to different dimensions - The 40 mm slot spindle can be precisely adjusted in height using an ergonomically positioned handwheel with 0.1 mm graduations - The robust roller table, combined with hardened and ground guides, can be easily moved with minimal effort - Slot spindle motor: 5.5 kW - Slot spindle speeds: 3000/4500 rpm - Spindle diameter: 40 mm - Clamping length: 140 mm - Slot spindle height adjustment: 100 mm - Extraction port: 120 mm Isdpoxymfdefx Agdjtd - Crosscut saw motor: 2.2 kW - Crosscut saw speed: 2950 rpm - Saw blade mount: 30 mm - Max. saw blade diameter: 400 mm - Max. cutting height: 125 mm - Pneumatic tool clamping - With Festo-LAS fence Weight: approx. 600 kg Availability: short term Location: Röllbach

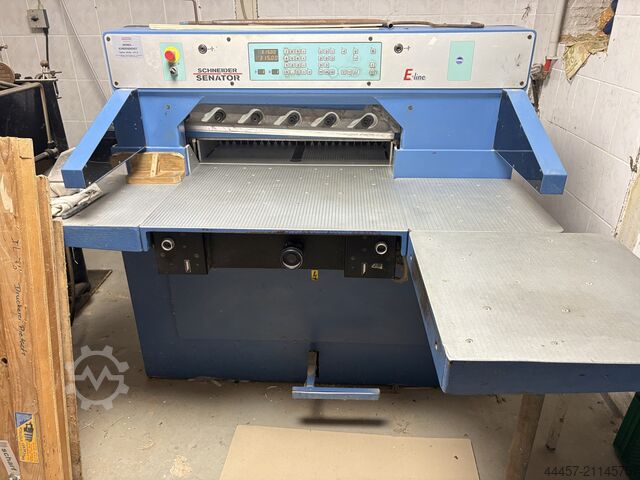

Condition: good (used), Year of construction: 1999, functionality: fully functional, cutting width (max.): 780 mm, Paper cutting machine Schneider Senator 78 E-Line, working width 78 cm, programmable control, air table, light barriers Ijdoyu Ii Ujpfx Agdetd

Year of construction: 2020, condition: excellent (used), WM1 300 CNC incl. Renishaw TP 200 Year of manufacture: 2020 Clamping tool from DK Fixiersysteme 3-axis CNC control High-resolution CCD matrix camera 1.5x magnification Incident light illumination via LED ring light, 4 sectors and 1 ring individually switchable Precision measuring table in X and Y axes Diode laser for positioning assistance Joystick and trackball for axis movement with fast/slow switching Camera-supported measurement data acquisition Precise edge detection in transmitted and incident light using intelligent image processing algorithms Compact and portable – powerful performance Easy handling with maximum measurement accuracy Special features Including Renishaw TP 200 touch probe system Switchable LED surface illumination Diode laser for positioning assistance With a measuring range of 300 mm × 200 mm × 200 mm, it excels especially in the measurement of stamped, plastic, rubber and milled parts as well as tools, profiles, and PCBs. Key features of the measuring microscope include camera-assisted data acquisition, quick operation, and its high precision. Of particular note is the precise edge detection in transmitted and reflected light, powered by smart image processing algorithms. Despite its powerful capabilities, the WM 1 300 CNC remains compact and handy with dimensions of 900 mm × 950 mm × 950 mm. Itsdpfx Aoyuut Tegdjd

Condition: good (used), functionality: fully functional, Motor 4 kW Ijdpfxeyuc Eqo Agdjtd Motor for aggregate tilt 0.37 kW Adjustment range between 90° - 30°

Condition: not inspected (used), functionality: unexamined, planing width: 500 mm, number of blades: 2, total length of planing tables: 2,800 mm, overall weight: 850 kg, Planing width 500 mm 2-knife cutterhead Total table length 2800 mm Motor rewound Weight approx. 850 kg Itsdjyuczljpfx Agdod

Year of construction: 1994, condition: ready for operation (used), A small compressor system including separator and dryer is available. 1) Compressor Atlas Copco GA 18, year of manufacture: 1994, air volume flow: 36.4l/s, max. operating pressure: 10bar, motor power: 18.5kW, speed: 1500rpm. 2) Air dryer Schneider Druckluft GmbH DK 3000 N, max. inlet temperature: 50°C, max. operating pressure: 16bar, refrigerant: R134a, refrigerant charge: 700g, operating overpressure: 17bar. 3) Oil-water separator Donaldson Ultrasep Plus 30, max. residual oil content: 10mg/l, max. compressor capacity: 30m³/min, oil adsorption capacity: 25l, machine dimensions X/Y/Z: approx. 900mm/1000mm/400mm, weight: approx. 70kg. An on-site inspection is possible. Ijdjx Ih D Tepfx Agdjtd

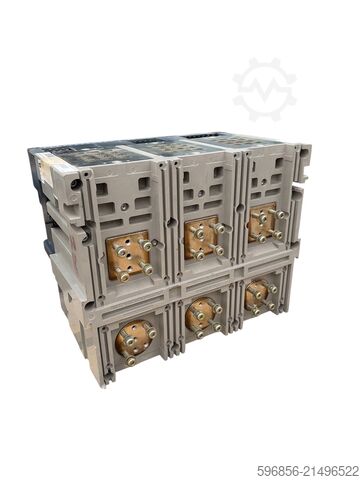

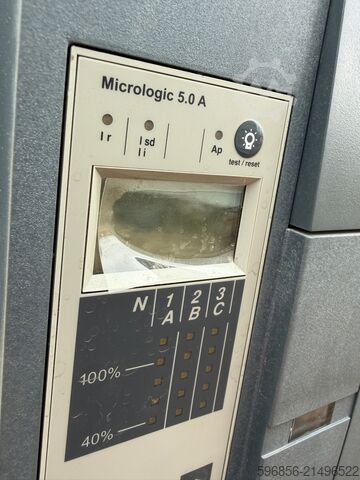

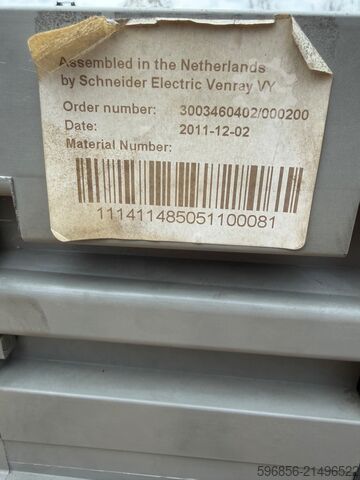

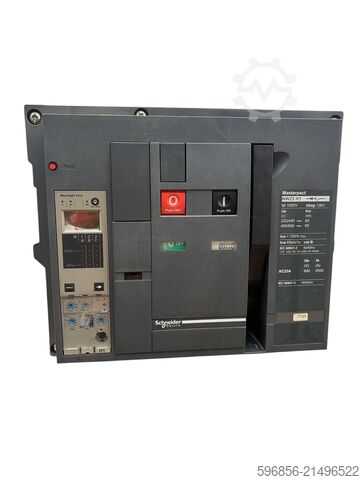

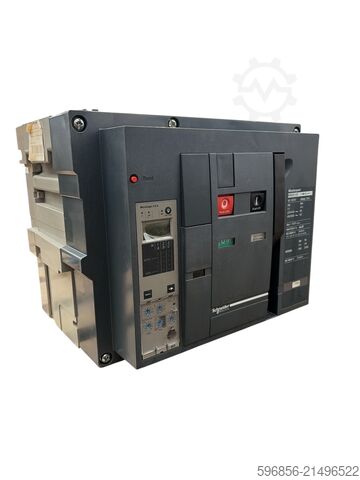

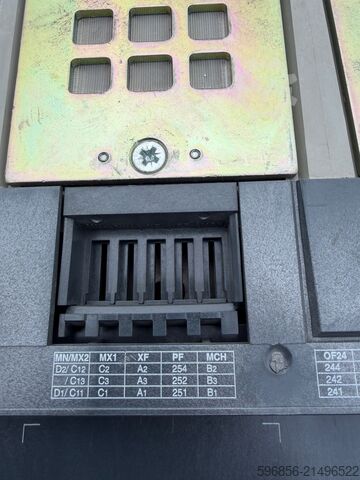

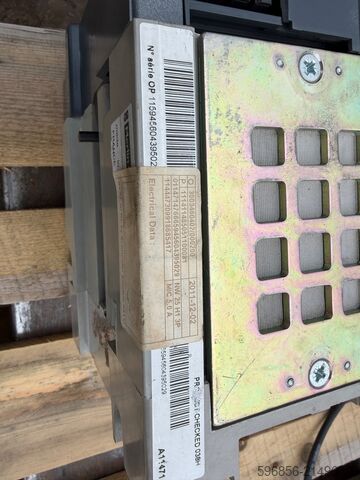

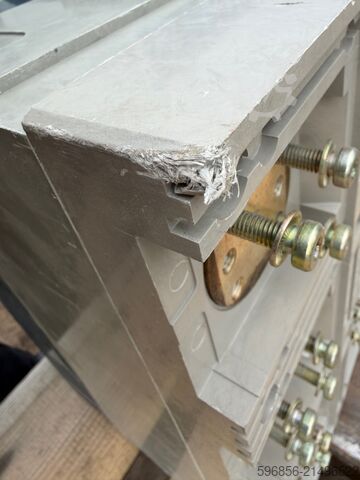

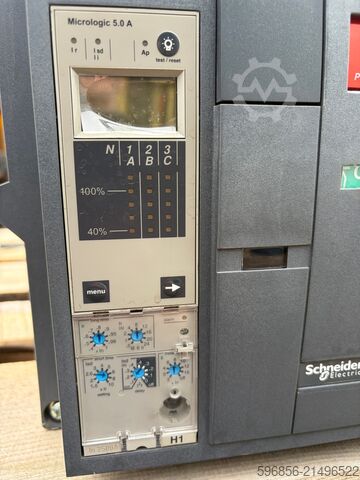

Condition: excellent (used), For sale: Professional Schneider Electric Masterpact NW25 H1 circuit breaker equipped with a Micrologic 5.0 A protection unit. This device is used in industrial power distribution systems—such as low-voltage switchboards, manufacturing plants, industrial halls, and power installations. The Masterpact NW series circuit breakers are designed for demanding industrial environments and provide reliable protection against overloads and short circuits. The unit is in very good visual and technical condition—the exact condition can be seen in the photos. Technical Specifications: Isdpfeyua Amsx Agdjtd Manufacturer: Schneider Electric Series: Masterpact NW Model: NW25 H1 Protection unit: Micrologic 5.0 A Rated current: 2500 A Insulation voltage: Ui 1000 V Impulse withstand voltage: Uimp 12 kV Operating voltage: up to 690 V AC Breaking capacity Icu: 65 kA Ics: 100% Icu Standard: IEC 60947-2 Frequency: 50 / 60 Hz Utilization category: AC23A Year of production: 2011 Assembly location: Schneider Electric Venray (Netherlands) The circuit breaker protects installations against overloads and short circuits, and allows for adjustment of protection parameters thanks to the Micrologic unit. Applications: • Low-voltage switchboards • Industrial facilities • Power installations • Energy distribution systems • Large machinery and production lines ✔ Robust industrial construction ✔ High breaking capacity ✔ Adjustable Micrologic protection settings ✔ Equipment from the renowned manufacturer Schneider Electric

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1950x690x1700 mm Isdpfx Agoyt R N Ujdetd Weight 451 kg Total power requirement 11 kw

Condition: excellent (used), Schneider 4 kw 530 ltr/min only 700 hours Itedsv A R Hnepfx Agded
