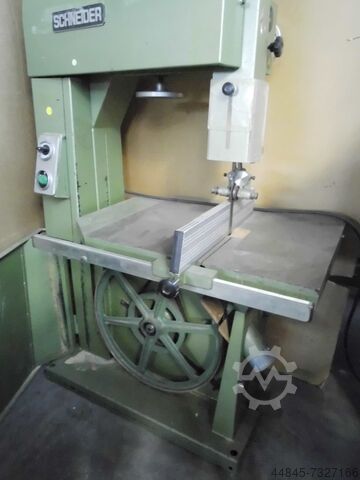

Band saw

Schneider SBS 700

Condition: ready for operation (used), Year of construction: 1991, Volume flow: 1550 m³/h Pressure difference: 1000 Pa Nwodpfxovitd As Acfeh Drive motor: 400 V, 2850 rpm, 1.5 kW Intake nozzle diameter: 150 mm Space required: 1100 x 500 x 2450 mm Weight: 133 kg

Condition: new, Year of construction: 2024, New machine Year of manufacture 2024 Equipment and technical data: · Wheel diameter: 600 mm · Belt speed: 1550 m/min · Cutting height: 400 mm · Cutting width: 580 mm · Blade length max.: 4735 mm Nwedpfx Aew Nabrecfjh · Saw blade width min. / max.: 15 mm / 30 mm · Optional with special covering saw blade width min. / max.: 8 mm / 25 mm · Table size: 810 x 590 mm · Table height: 920 mm · Extraction nozzle: 2 x Ø 100 mm · Motor power: 2.2 kW / 3 HP · Voltage: 400 V / 50 Hz · Color: RAL 7035 light gray and RAL 5000 violet blue · Net weight: approx. 275 kg TECHNICAL DESCRIPTION · Solid German mechanical engineering · Machine stand in an attractive, modern, torsion-free double-chamber welded steel construction · Upper and lower doors secured by limit switches · Upper and lower precision band saw blade guide APA 2, size. 2 · Finely planed gray cast iron table · Swiveling table top up to 45° · Dynamically balanced band saw wheels with vulcanized rubber bandages · Stop ruler can be used to the left of the saw blade, stop profile can be folded over · Blade tension indicator · 1 saw blade 4735 x 25 x 0.6 mm, tooth width 9 mm, No. 3780.250D · Mechanical height adjustment of the saw blade guard using a handwheel with locking pinion · From 2.2 kW - rotary cam switch with direct start and emergency stop button · From 3.0 kW - rotary cam switch with star-delta start and emergency stop button · Mechanical motor brake with main switch and motor protection relay · CE-compliant Incl. transport pallet Incl. pre-freight to 65239 Hochheim Availability: short term Storage location: Flörsheim
