Bar Automatic Lathe - Multi Spindle

SCHUETTE SC9-46

Technical details:

number of spindles: 9
spindle passage: 46 mm

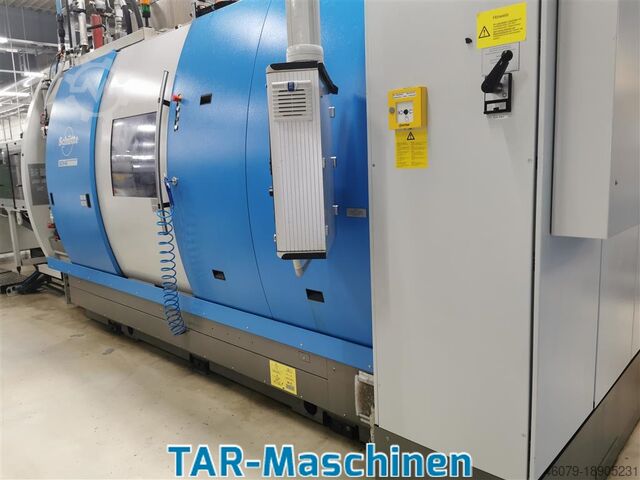

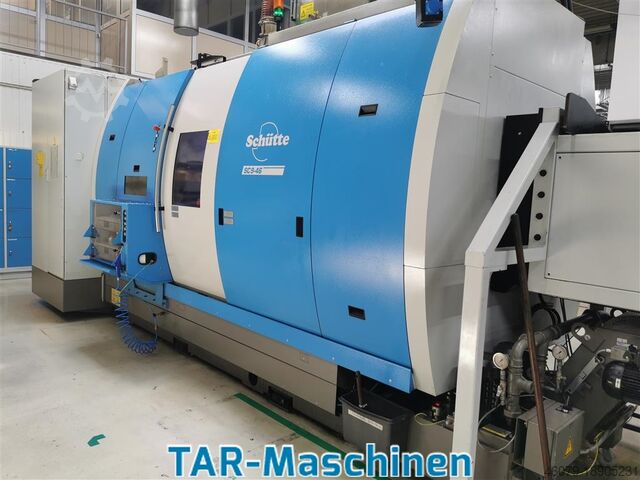

Article: CNC-controlled multi-spindle automatic lathe
Manufacturer: Schütte
Type: SC9-46
Yob: 2016

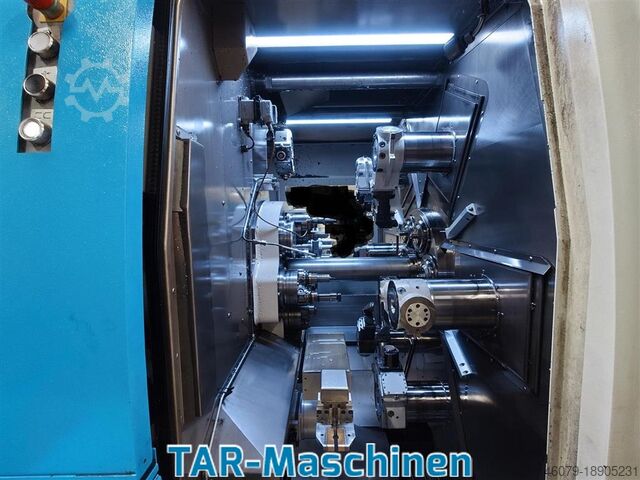

Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles

Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm
Cross slide units, transverse: 6 units, in positions I to VI,
Slide units, longitudinal: 5 units, in positions I to V,
Slide units, longitudinal: 5 units, in positions I to V,

Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm
Cross slide units, transverse: 2 units, in positions VIII and IX,

Control:

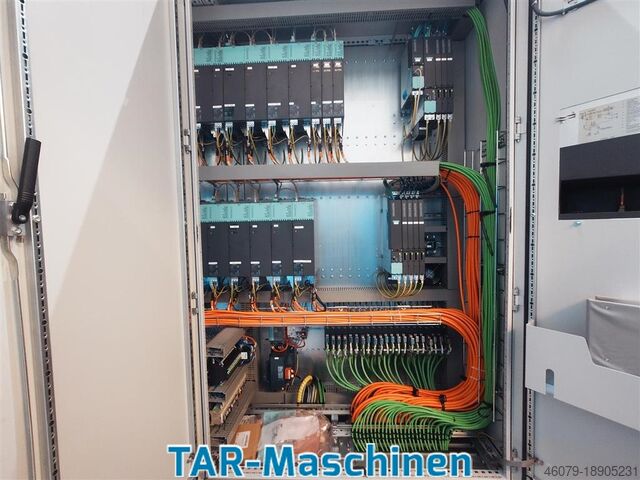

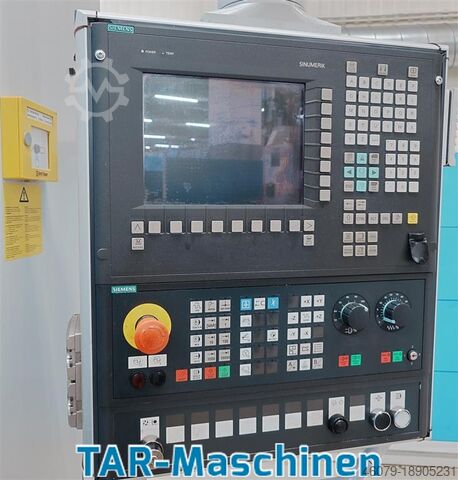

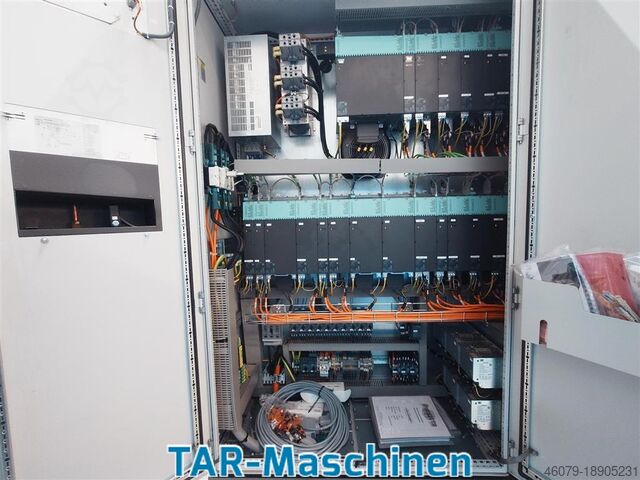

Siemens SINUMERIK 840SL with double NCU

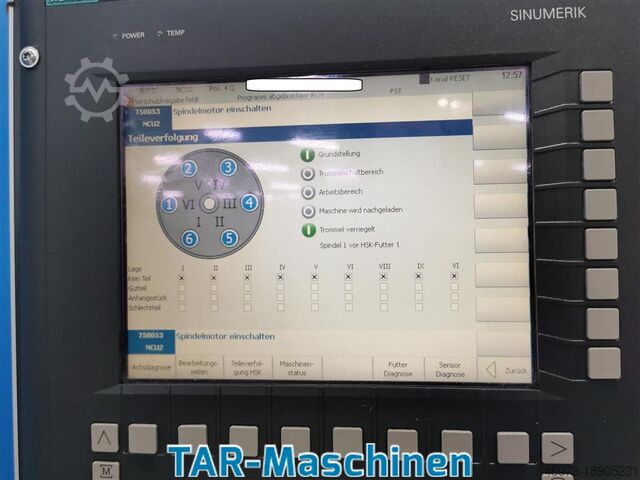

Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,
Spindle coupling package “CP-Expert”, for up to 8 spindle couplings (maximum expansion)
Synchronous action package “Level” 2, incl. cross-mode actions/ASUP (maximum expansion),
SIMATIC Step 7 configuration service tool, Teleservice
Csdpfjwa Tftsx Abwohc

Further software:
Transmit and lateral surface transformation (TRACYL),
transformation “double eccentric” (2RPT) for Z-slide longitudinal as Y-axis,
transformation “double transmit” (DTRA, 22TRA) for Z-slide transverse as Y-axis,
interface external acquisition of machine status,

Comprehensive tool train equipment

Chip disposal
Cooling lubricant treatment system Knoll with full-flow filtration + additional filter,
Chip conveyor

Loading and unloading concept
Palletizing device for finished parts,

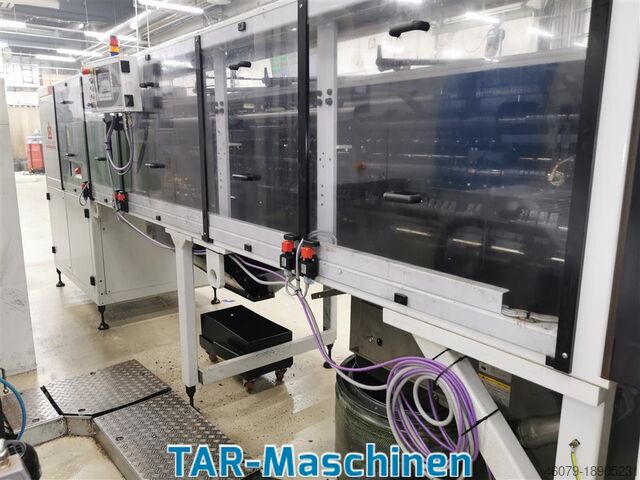

Cucchi BLT bar loading magazine
Fire extinguishing system

More:
Tool monitoring: Artis 8 channel, sensorless
Midex Tool monitoring of various positions,
various tools and devices for boring the jaws,
and much more...
