Planer

SCM Minimax

Condition: good (used), Code: 0098 Brand: MINIMAX SCM Model: LS 3000 - CE Standard Belt sanding machine with double goose neck - with 3 motors - CE Standard Table length mm 3000 Table width mm 1100 Automatic table lifting stroke mm 580 2-speeds belt motor Sanding belt lenght mm 8100 Pulleys diameter mm 250 Belt width mm 150 Manual pad mm 150 Gooseneck depth mm 820 Overall dimensions: mm 4150 x 1500 x 1600 h Weight kg 485 Hsdpoy Au Disfx Ad Hoff

Condition: used, Year of construction: 2019, used, top condition, low hours with Tersa cutterblock Make: SCM-Minimax Model: FS41C Year of manufacture: 2019 Machine No.: KK00003566 CE type-tested Motor: 5 kW Planing width approx. 410 mm Planing height approx. 220 mm Table length approx. 900/900/1800 mm Bridge guard Slotted table lips Low-noise table lips automatic brake Number of knives: 3 pcs Knife system: - Tersa reversible knives Digital display for planing height, analog Hsdpfx Adoy Apfuo Hsff Integrated extraction hood Original price approx. 5500 € Extraction connection: 2 x 120 mm diameter Space requirement approx. 2000 x 800 x 1000 mm Weight approx. 320 kg Storage location: 97447 Gerolzhofen, loaded free on truck, unpacked Delivery in as-inspected condition, without any warranty or guarantee.

Condition: new, Multipurpose combination machine with aluminum sliding table for sawing, milling, surface and thickness planing, and optional long-hole boring Torsion-resistant steel and cast iron construction Machine table made of cast iron, hardened and ground Smooth-running anodized aluminum sliding table, 10-year SCM warranty on slideway wear Large crosscut frame with extendable aluminum telescopic fence and flip stops Combination saw and mitre fence with 45° quick adjustment Max. saw blade diameter 315 mm with optional scoring unit, tiltable from 90° to 45° Helical steel feed roller for consistent timber feed during thickness planing Four spindle speeds, manually selectable Standard with forward/reverse spindle rotation Three independent motors for each working unit Sliding table with ball contact system Fitted with the proven million-fold SCM ball contact system Consistently smooth operation due to hardened and ground guides Not susceptible to dust and dirt thanks to minimal contact point between ball and trapezoidal rail The extraction ports for surface and thickness planing are located on the same (right) side, so the same extraction hose can be used for both planing operations. Helical steel infeed rollers for constant and even workpiece feed Massive anti-kickback pawls for operator safety 3-knife cutterblock ensures optimum planing results Hfsdpfoiiyppex Ad Hjf Crosscut length: 1600 mm Max. saw blade diameter with scorer: 315 mm Max. cutting height at 90° / 45°: 100/79 mm Max. crosscut width left of blade: 1660 mm Cutting width at rip fence: 800 mm Saw shaft speed: 3500 rpm Saw blade tilt: 90° - 45° Working width: 300 mm Surface table length: 1260 mm Cutterblock diameter / number of knives: 72 mm / 3 pcs Table dimension: 300 x 450 mm Min. / Max. working height: 3 mm / 220 mm Max. stock removal: 4 mm Feed speed: 7 m/min Spindle diameter: 30 mm Usable spindle length: 100 mm Max. retractable tool diameter: 180 mm Spindle speed: 3500/6000/8000 rpm Motor power: 3 x 4 kW, 400 V, 50 Hz Extraction port diameter: 4 x 120 mm Saw blade guard extraction port Ø: 60 mm Weight: 430 kg OPTIONS: - Professional fences EUR 300.-- Saw fence with quick lock and micrometric adjustment Surface planer fence 90° ÷ 45° continuously adjustable - Scoring unit incl. blade EUR 292.-- - Handwheel with digital readout for thickness table positioning EUR 129.-- - Mobility kit EUR 119.-- - 2 additional handwheels for unit adjustment EUR 45.-- - TERSA cutterblock, diameter 72 mm EUR 212.-- - Xylent spiral cutterblock with 3 rows of knives EUR 717.-- - Aluminum long-hole boring device EUR 390.-- - 2 flip stops for crosscut fence EUR 150.--

Condition: good (used), Code: 0344 Brand: SCM MINIMAX Model: FS 41/C - CE Standard 3 Works combined machine (Surface/ Thickness/Mortiser) for wood, carpentry, furniture, window frames , doors, plastics, and various - CE Standard Technical data: Planer shaft with n° 3 “Tersa” knives Working width 410 mm Total length of surface tables 2000 mm Guide inclination 90–45° Thickness table dimensions 410 x 605 mm Thickness feed speed 7 m/min Thickness min/max working height 3/230 mm Three-phase motor 6,5 Hp Cast iron mortiser: table dimensions 430 x 220 mm Spindle connection diameter 16 mm Wheels for moving the machine Suction port diameter 120 mm Overall dimensions mm 2000 x 1000 x 1100 h Hfsdpjyxfy Hsfx Ad Hof Weight kg 340

Condition: new, both working tables open at the same time! working width 410 mm cutter block DM 95 mm knife dimensions 410 x 30 x 3 Hfodpfodvn Hwjx Ad Hsf max. chip removal 5 mm working table length 2200 mm thicknesses table dim. 410 x 775 mm feed speed 6/12 m/ min min. ÷ max. work piece height 3 ÷ 240 mm Motorleistung 5,0 kW, 400V, 50 Hz incl. options: "Tersa”-cuter block Ø 95 mm, with 4 pcs knifes auxiliary fence for small work pieces electric height adjustment for thicknessing table with digital readout

Condition: new, The model ME 40TR is SCM’s ‘bestseller and in this category offering unrivaled price / performance ratio. Hsdjc S Di Repfx Ad Heff We can offer the following new machine SCM me 40tr, CE Volt 400 EU, frequency 50 Hz edge thickness coils 0,4 - 3 mm max. edge thickness strips 5 mm min. – max. work piece thickness 8 - 50 mm feed speed 9 m/ min glue pot unit 0,18 kW, capacity 0,8 kg premiling aggregate 2,2 kW, 9000 U/ min end-cutting unit with "Radius" allows you to make a radius on the corners of the edged panel trimming unit 2 x 0,35 kW, 12.000 U/ min OPTIONAL device for panel preheating edge scraping unit flat scraping unit grooving unit 1,1 kW, 12.000 U/ min, notch width 4 mm brushing unit with 2 independent motors magazine for strip edges kid for quick exchange of glue unit ...

Condition: new, Sturdy cast steel construction High-precision sizing slide made of anodized aluminium with a travel of 2250 mm Maximum saw blade diameter of 315 mm possible, saw blade can be tilted 45 Large trimming frame (960 x 600 mm) with telescopic aluminum fence that can be extended up to 2660 mm Heavily ribbed dressing work tables made of gray cast iron, re-annealed and stress-free for decades of stability and flatness Helical toothed steel feed roller for even material feed Three milling speeds, manually adjustable Milling spindle with right/left rotation Three independent industrial motors With lockable main switch, motor protection switch, emergency stop switch Dressing table width 410 mm Dressing table length 1810 mm Chip removal max. 4 mm Thicknessing table length 605 mm Thicknessing table width 410 mm Working height min. 3 mm Working height max. 230 mm Feed speed 7 m/min Chip removal max. 4 mm Suction nozzle diameter 4 x 120 mm Planer cutterblock type TERSA (3 pcs.) Planer shaft diameter 72 mm Speed 5200 min-¹ Circular saw Edging length 2250 mm Cutting width with rip fence 900 mm Max. Cutting width to the left of the saw blade 2310 mm Saw blade inclination 90 - 45 ° Max. Cutting height at 90° 90 mm Max. Cutting height at 45° 63 mm Saw blade diameter 315 mm Saw blade speed 4000 min-¹ Sliding carriage and table Length of sliding table 2600 mm Spindle diameter 30 mm Speeds 3500/7000/ 10000 min-¹ Milling tool diameter max. lowerable/ not lowerable 180/ 210 mm Power drive motor 3 x 5.0 kW, 400 V, 50 Hz Machine weight approx. 560 kg INCLUDING OPTIONS - Handwheel with gravitational-numerical display for thicknessing table positioning - Sliding carriage length 2600 mm - Professional stops Hedpfx Aoiiynnsd Hoff - "TERSA" planer cutterhead - Right-left rotation of the cutter

Condition: new, band saw according to CE and with the following features strong cast iron work table, inclinable balanced cast iron fly wheels saw blade guide, telescopic saw blade tensioning indication upper and lower saw blade guide cleaning brush for the lower fly wheel sturdy AL fences max saw blade width 16 mm Hfsdedibw Aopfx Ad Hjf suction connection under the table micro switches on machine doors work table dimensions 600 x 520 mm working table height 900 mm fly wheel DM 450 mm fly wheel speed 700 U/ min max cutting height 300 mm max cutting width 440 mm min/ max saw blade length 3690/ 3742 mm min/ max saw blade dimension 6 x 0,5 / 25 x 0,5 mm motor 3,0 kW, 3 Ph 50 Hz, 400 V suction connection 120 mm

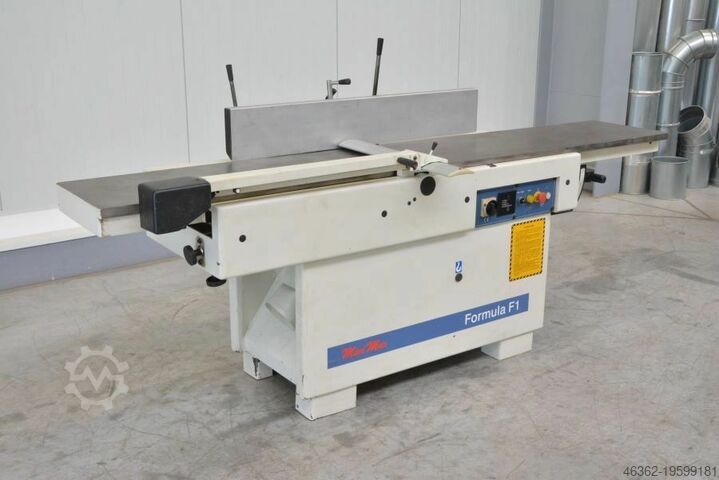

Condition: good (used), Code: 0292 Hedpfxjyhp S Re Ad Hoff Brand: SCM MINIMAX Model: FORMULA F1 - CE Standard Surface planer for planing wood materials, plastics, composite materials and various - CE Standard Technical data: Working width mm 410 Table length mm 2610 N° 4 knives Shaft diameter mm 120 Shaft rotation speed rpm 5000 Guide tilting from 90° to 45° Max stock removal mm 8 Motor power Hp 5,5 Table height from ground mm 845 Suction hood diameter mm 120 Overall dimensions mm 2610 x 900 x 1070 h Weight kg 575

Condition: new, Year of construction: 2023, power: 7 kW (9.52 HP), planing width: 520 mm, number of blades: 4, overall weight: 483 kg, height adjustment type: electric, planer shaft diameter: 120 mm, planing height: 240 mm, SCM MiniMax s 52es thicknesser Hodpfsqu U Dnsx Ad Hjff Specifications: - condition - new - manufacturer - SCM - width of the thicknesser table - 520 mm - length of the thicknesser table - 850 mm - minimum thickness of the element - 3 mm - maximum thickness of the element - 240 mm - maximum thickness of the thicknesser harvest - 5 mm - motor power - 7 kW - supply voltage - 400 V - shaft for 4 conventional knives - diameter of planer shaft - 120 mm - rotational speed of the planer shaft - 5000 rpm - maximum planing width - 520 mm - feed speed - 5 / 8 / 12 / 18 m/min - diameter of the exhaust stub - 120 mm - weight (net) - about 493 kg - overall dimensions - 144 x 108 x 110 cm ( W x L x H ) Additional information: - machine brand new - pictures show the actual state of the object of sale - possibility to turn on and check the machine on site. - the price given in the auction does not include VAT and transport costs - available from stock in Italy
