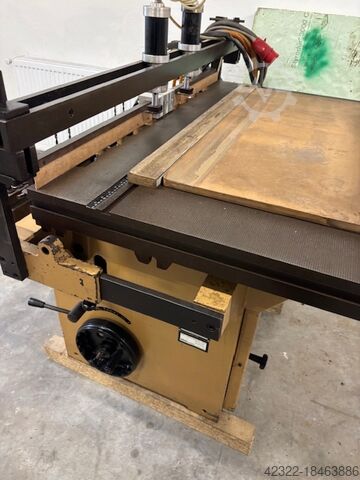

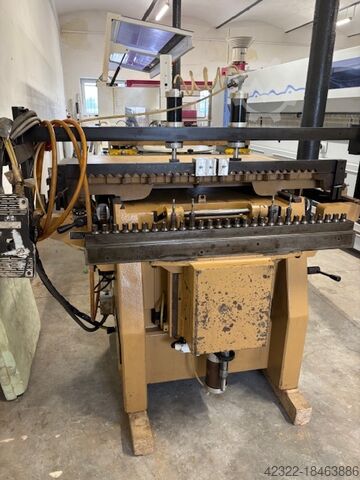

Multi-spindle drilling machine SCM FM 29S

SCM FM 29 S

Condition: excellent (used), CATALOG NO. 7911 TECHNICAL DATA - Number of spindles: 29 pcs - Distance between outermost spindles: 900 mm - Spindle pitch: 32 mm - Table surface: 700x1220 mm - Table height: 930 mm - Pneumatic clamps: 3 pcs - Drilling vertically, horizontally, and at an angle Nwjdpfxeyrr I Nj Ag Dsf - Vertical/horizontal operation – pneumatic table adjustment - Pneumatic lifting of drilling head - Dimensions (L/W/H): 1400/1050/1400 mm - Weight: 744 kg ADVANTAGES – Manufactured by Italian brand SCM – For 29 drills – Not repainted – Very good condition – Used drilling machine Net price: 5,900 PLN Net price: 1,400 EUR at an exchange rate of 4.2 EUR (Prices may change with significant exchange rate fluctuations)

Condition: good (used), Code: 0342 Brand: VITAP Model: ALFA 35 - CE Standard Semi-automatic multiple boring machine with 35 spindles for furniture, kitchens, bathroom furniture, custom-made furniture, panels - CE Standard Technical data N° 35 spindles with quick coupling Centre distance between each spindle mm 32 Centre distance between first and last spindle mm 1088 Max depth of hole mm 70 Board dimensions mm 1330 x 500 Spindle rotations per minute 2800 Motor power Hp 3 Turret with 6 different depth positions Side fence Horizontal/vertical 45 degree pneumatic tilting head Metric bar 3000 mm with stops Operating pressure 6- 8 atm Overall dimensions mm 1590 x 860 x 1250 h Weight kg 454 Nwodpfx Aeywm A Heg Dsf

Condition: new, Year of construction: 2026, functionality: fully functional, Edge banding machine – NB860EC - Machine with 6 edge band magazines and servo feed • Robust machine structure and most of the machine's mechanical parts are machined with advanced CNC machines for greater stability and longer life without deformation; • Combines multiple functions in one machine, including pre-milling, pre-heating, pre-melting, end trimming, servo fine cutting, servo scraping, surface scraping and polishing, spraying, all in one process. • Intelligent PC control, feed guide, belt pressing rollers, fine cutting and scraping are controlled by a servo motor. Corner rounding is adjusted pneumatically. Machine speed 16/20/24 m/min; • Nesting kit design • Fine refilling and corner rounding via HSK25 TECHNICAL DATA Panel length: ≥120 mm; ≥200 mm with rounded corners Panel width: ≥60 mm Min. Panel size: 120× 120mm; 120× 60mm long edge; 200*80 mm short edge Panel thickness: 9-60 mm Thickness C=edge: 0.4-3 mm Feed speed: 16/20/24 m/min Power supply: 380 V; 50 Hz Required air pressure: 0.7 MPa Distance between panels ≥50 Console 2 Dust collection outlet Φ 125 mm*5 Total power: 28 Kw Approximate weight: 3,000 kg Overall dimensions: 5,930*1,050*1,850 mm 6-sided drilling CNC and double workstation ND712DTL The ND712D is designed to have 2 independent workstations of 1200+650 mm, integrating 2 machines into one, thus doubling efficiency with less space required. The integrated, high-rigidity machine body structure gives the entire machine a longer service life and fast, stable machining. The optimized drill layout makes drilling more efficient. TECHNICAL DATA Nwjdpfex Uplxox Ag Def Total power: 52.36 kW Machine size: 7400 * 4,620 * 2,650 mm Power supply: 380V/50Hz 3 phases Air supply: 0.6-0.7MPa Total weight: 7,850 kg Control system: SYNTEC Panel size: Length: 250-2,800 mm / Width: 250-650/1200 mm / Thickness 10-60 mm Maximum travel speed: ( X) Axis /U ) - 135 m/min Y axis - 75 m/min Z axis - 30 m/min Transmission mode X axis - Rack and pinion Y axis - Rack and pinion Z axis - Ball screw Drilling blocks: Top 2+2; Bottom 1+1 Vertical drills (top): 19*4 Horizontal drills (top): X: 3 × 8 + Y: 2 × 8 Vertical drills (bottom): 9 × 2 Maximum drilling diameter: Φ35mm Distance between holes: 32 mm Rotation speed: 5000 rpm Shank diameter: Φ10mm Main shaft: 4* ER25 Power: 2*3.5kw; 2*5.5kw max. 18000rpm

Condition: used, SCM Startech 23 Multiple Spindle Boring Machine Nwsdpfx Agsyu R S Ss Dsf 23 spindles, left/right spindles, quick-change spindle chucks, spindle pitch 32 mm, drilling vertical, horizontal or at an angle, pneumatic clamps, power supply 380V, 2.2KW motor Machine weight: 500 kg The machine is fully functional and ready for operation.
