High-vacuum centrifugal fan

CORMAK FAN11

CORMAK FAN 11 High-Pressure Material Handling Fan – Premium Industrial Blower for Dust and Sawdust Extraction

The CORMAK FAN 11 is a premium industrial high-pressure material handling fan designed for demanding dust extraction and pneumatic conveying applications. Delivering an airflow of up to 15,445 m³/h and powered by an 11 kW three-phase motor, it efficiently removes sawdust, wood chips, dust, and other dry particles generated during the processing of wood, metal, plastics, and composite materials. Its robust construction and high static pressure make it an ideal solution for large-scale industrial dust collection systems.

Key Advantages
High airflow capacity up to 15,445 m³/h for efficient extraction from multiple machines
Powerful 11 kW motor for reliable continuous industrial operation
Heavy-duty steel housing resistant to mechanical damage and corrosion
Versatile application for sawdust, wood chips, dust, and other dry bulk materials
Energy-efficient and low-noise operation optimized for long production cycles
Flexible installation options for integration into customized extraction systems
Construction and Technology

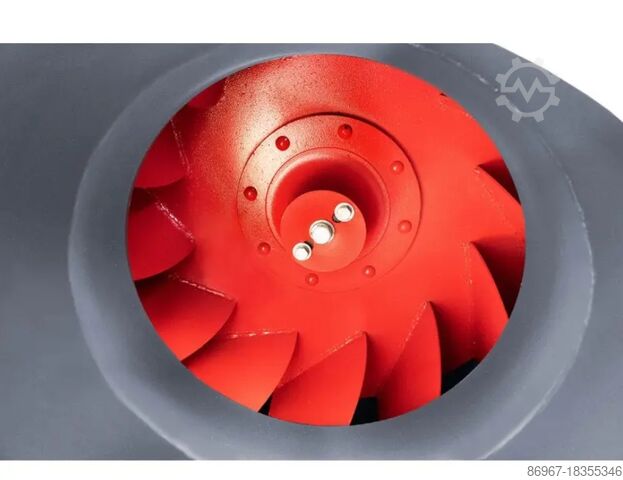

The CORMAK FAN 11 utilizes a high-efficiency centrifugal impeller engineered to generate substantial airflow while maintaining high static pressure. The dynamically balanced impeller provides smooth operation with minimal vibration, while the welded heavy-gauge steel housing ensures excellent durability in demanding industrial environments. Designed for continuous-duty operation, the fan offers long service life with minimal maintenance requirements.

Performance and Efficiency

A precision-balanced impeller, industrial-grade electric motor, and optimized cooling system enable the FAN 11 to maintain outstanding performance during prolonged operation without overheating. Its high airflow and strong suction pressure make it ideal for extracting sawdust, wood chips, and fine dust from large woodworking machines, centralized collection systems, silos, and automated production lines.

Applications

The CORMAK FAN 11 is ideal for:

Woodworking shops and furniture manufacturing plants
Metalworking, plastics, and chemical processing industries
Agricultural storage facilities and grain drying installations
Automated production lines with centralized dust extraction
Pneumatic conveying systems for dry industrial materials
Standard Equipment
Complete centrifugal fan assembly with 11 kW motor
Heavy-duty steel housing with inlet and outlet flanges
Industrial centrifugal impeller designed for continuous operation
Optional Equipment
Inlet and outlet diameter reducers
Installation and mounting kits
Cyclone separators and filtration systems
Technical Specifications
Parameter Value
Maximum Airflow 15,445 m³/h
Inlet Diameter 350 mm
Outlet Diameter 350 mm
Static Pressure 3187–2019 Pa
Lhjdpfevugfwsx Acfok
Motor Power 11 kW
Power Supply 400 V
Dimensions (L × W × H) 920 × 1050 × 1060 mm
Weight 170 kg
