CNC Horizontal Machine centers SCM Morbidelli N100 2020

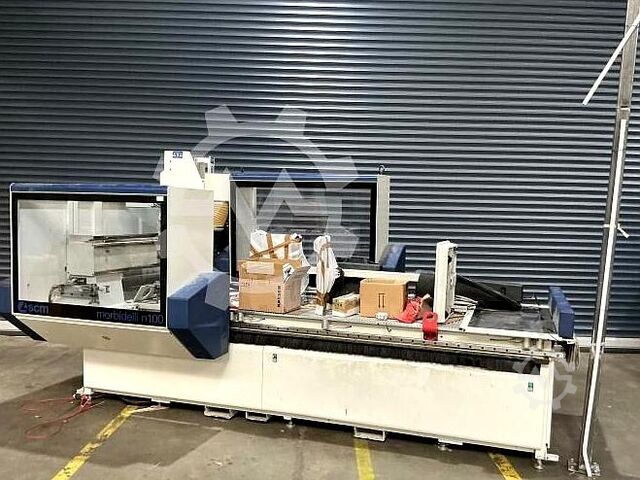

SCM Morbidelli N100

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: AH / 121500, table width: 1,290 mm, table length: 2,570 mm, overall weight: 2,522 kg, Equipment: CE marking, TECHNICAL DETAILS Table Table length: 2,570 mm Table width: 1,290 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,870 x 1,900 x 2,300 mm Weight: 2,522 kg EQUIPMENT Bledpfoxrluuox Abmop CE marking

Condition: excellent (used), Year of construction: 2019, operating hours: 9,930 h, functionality: fully functional, machine/vehicle number: AA10001591, travel distance X-axis: 3,770 mm, travel distance Y-axis: 2,585 mm, travel distance Z-axis: 250 mm, rapid traverse X-axis: 35 m/min, rapid traverse Y-axis: 35 m/min, rapid traverse Z-axis: 15 m/min, feed length X-axis: 3,086 mm, feed length Y-axis: 2,185 mm, feed length Z-axis: 150 mm, feed rate X-axis: 35 m/min, feed rate Y-axis: 35 m/min, feed rate Z-axis: 6 m/min, nominal power (apparent): 29 kVA, controller manufacturer: SCM, workpiece length (max.): 3,086 mm, workpiece width (max.): 2,185 mm, workpiece height (max.): 150 mm, total height: 2,190 mm, total length: 5,215 mm, total width: 3,472 mm, table width: 2,185 mm, table length: 3,086 mm, overall weight: 2,800 kg, spindle speed (min.): 1,500 rpm, spindle speed (max.): 24,000 rpm, operating hours of spindle: 2,000 h, spindle motor power: 10 W, number of spindles: 1, number of slots in tool magazine: 19, input voltage: 415 V, type of input current: AC, Equipment: documentation/manual, rotational speed infinitely variable, Brand and Model: SCM MORBIDELLI N100 22-31 C Serial Number: AA10001591 Year of Production: 2019 Condition: Excellent Location: Northern Ireland Almost as new condition and well maintained In full working order and still in use Includes many extras for a cost free set-up Financial information VAT: The price shown is exclusive of VAT which is not applicable for purchasers outside the UK Bodpfxjw Nyd Tj Abmslp Duty: Shipments from Northern Ireland to the EU are excempt from customs and duty Price: As seen and excludes any moving of the machine or preparation for shipping Machine Specification: High Performance aluminium worktable 8 rectractable stops NC managed Two vacuum fields half and full table Vacuum cup set Automatic centralised lubrication system 2 off Becker 250/300 m3/hr vacuum pumps 9.5KW spindle 1500-24000 rpm with left and right rotation HSK F 63 quick release toolholder With exhaust hood for spindle 4 off air blowers on the spindle 1 off lateral pickup for aggregate tool High capacity toolholder with 19 places F12L drilling head comprising 4xleft and 4xright spindles 1off X and 1off Y double drilling heads 1off integrated blade in x axis Drill head complete with exhaust hood Bit speed 4500rpm 60mm stroke Blade 5500rpm Tool length detection system "Tecpad" wired remote control with 7 inch touch screen colour Eye-M PC integrated touchscreen control station Maestro CNC with 2 off dongles Extras include in price: Ducting for the machine to an extraction unit Switchgear and cables Tooling approx 20 HSK 63F ER32 holders plus collets 4 off EMST extract max tool holders PCD cutters Skimming tool Maestro nesting Alphacam 1 seat Full original documentation is available Also available: Extraction system to suit €4000 Compressor to suit €4500 Panel lifting unit to suit €12000

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: AA10001621, travel distance X-axis: 3,086 mm, travel distance Y-axis: 2,185 mm, travel distance Z-axis: 150 mm, rapid traverse X-axis: 35 m/min, rapid traverse Y-axis: 35 m/min, rapid traverse Z-axis: 15 m/min, feed length X-axis: 3,770 mm, feed length Y-axis: 2,585 mm, feed length Z-axis: 250 mm, feed rate X-axis: 35 m/min, feed rate Y-axis: 35 m/min, feed rate Z-axis: 6 m/min, nominal power (apparent): 29 kVA, controller manufacturer: SCM, workpiece height (max.): 150 mm, rotational speed (min.): 1,500 rpm, rotational speed (max.): 24,000 rpm, overall weight: 2,550 kg, spindle speed (min.): 1,500 rpm, spindle speed (max.): 24,000 rpm, distance between spindles: 32 mm, spindle motor power: 9,500 W, number of spindles: 1, number of slots in tool magazine: 20, tool length: 160 mm, tool diameter: 160 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, SCM MORBIDELLI N100 22-31 C – CNC Milling and Drilling Machining Center Brand and Model: SCM MORBIDELLI N100 22-31 C Serial Number: AA10001621 Year of Production: 2019 Condition: Excellent Location: Croatia Technical Specifications: Working Area (X x Y x Z): 3086 x 2185 x 150 mm Vacuum Table: High Efficiency Multipurpose Aluminum Table (HE) Vertical Drilling Head: 12 Spindles (7X / 5Y), 8000 rpm Horizontal Drilling: 3 Units (2X + 1Y), 8000 rpm Integrated Saw (X-Axis): Ø125 mm, 10000 rpm Main Milling Spindle: 9.5 kW (13 HP), HSK 63F, 24000 rpm Tool changer: 20 positions (19 at the rear + 1 in the cabin for quick change) Vacuum pumps: 2 x 250/300 m³/h Dust extraction: 5300 m³/h + 3400 m³/h for unloading pusher, Ø250 mm Machine weight: approx. 2550 kg Total installed power: 23–28.5 kW Control and software: Control via Xilog Maestro system + Eye-M PRO console Industrial computer with Windows Embedded 7 operating system 21.5" touch screen Included nesting optimization module and additional software licenses Built-in accessories: 1. Automatic tool length measuring device 2. TECPAD remote control with 7” touch screen 3. Lateral pick-up for additional tools 4. F18L doweling machine with RO-AX system 5. Two-field positioning for work in two working zones (A + D) 6. Automatic central lubrication 7. Air blowing and micro-lubrication system for processing demanding materials (e.g. aluminum panels) 8. Vacuum cup set 9. Automated unloading system: pusher + conveyor belt 10. Predisposition for automatic loading device Bljdpfx Abjwtdt Ujmjp 11. Interpolating vector axis with digital control for the 4th axis The machine has been used exclusively in professional conditions, regularly maintained and fully functional. Ready for immediate use in industrial production.
