Edge banding machine

SCM olimpic 500 HP

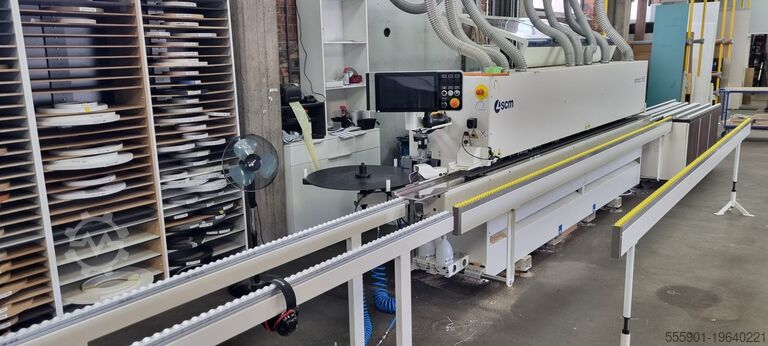

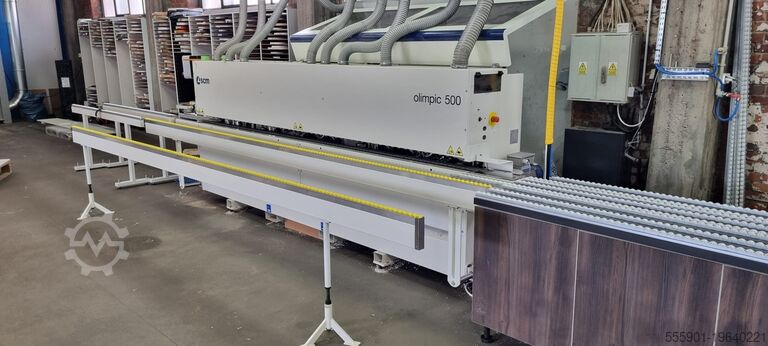

Condition: like new (used), Year of construction: 2024, functionality: fully functional, Edgebander SCM Olimpic K500 HP Year of manufacture: 2024 Condition: Perfect, only 17,000 meters of use Very rich factory equipment: - Servo-controlled pressure beam - Pneumatically controlled infeed element stop - SGP glue pot for EVA or PUR adhesives - EVA pre-melter – SCM QMS with automatic glue feeding to the pot - Automatic edge feeder - Servo-controlled pressure rollers and edge holder - Milling unit with multi-tool R1.R2.straight, 2-axis servo control Hjdpsw Dn R Sefx Agiog - Corner rounding unit with multi-tool R1.R2, 1-axis servo control - Radius scraper with multi-tool R1.R2, servo-controlled in 2 axes - Glue scraper - Polishing unit - Hot air blower - 3 types of fluids – anti-adhesive, cleaner, and fluid for delicate edges - Factory-installed LED lighting - Feed speed: 12 m/min, element spacing: 60 cm

Condition: good (used), Year of construction: 1994, CNC Spiral bending machine, capacity 50cm3, min-max diam of coil 500-3.500mm. Hedpfoiu Acpsx Agieg

Condition: used, Year of construction: 1991, Mazak SQT 10MS lathe for sale. The machine is fully functional and in good condition. Technical specifications: Max. turning diameter 230 mm Main spindle Speed range 35-6,000 rpm Hjdpfx Agev Tbu Dsisg Main drive power 11 kW Secondary spindle Drive power 5.5 kW Speed range 180 - 6,000 rpm Indexing 72 positions/5 ° Tool turret Number of tool positions 12 Driven tools Speed range 120-3,000 rpm Drive power 2.2 kW Travel paths X-axis 160 mm Z-axis 455 mm B-axis 460 mm Travel speed Feed range X/Z-axis 0 - 5,000 mm/min C-axis 1 - 2,000 °/min Machine data (with standard equipment) Total connected load 43 kVA Machine weight, . 3,500 kg Machine dimensions (L x W x H), approx. 2.70 x 1.70 x 1.85 m Accessories Tool presetter (MAZAK Tool Eye System) C-axis Dual foot switch for opening/closing the chuck Chuck status feedback (open/closed) Front door lock Complete coolant system Work area lighting Documentation

Condition: used, Holz Her UNO 1303 + PU Edge thickness 0.4 -3 mm (6 mm) Control panel with selector switches for setting the units Fully automatic edge magazine for rolls and strips Adhesive application station: cartridges + PU gluing Workpiece height 6-55 mm Pneumatic pressure unit Cutting unit for rolls and strips up to 3 mm (6 mm) edge thickness with adjustment of 0-10° angle of the cutting saws Milling unit, flush milling, radius milling, bevel milling - 15° Hsdpexlz Nzefx Agiog Scraping unit for bevels and radii Surface scraping unit - finish Machine is CHECKED in TOP CONDITION from a very well-maintained craft business from the Lieboch warehouse

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Hsdpfx Agsd Tm D Ejijg Good condition

Condition: like new (used), Year of construction: 2021, Fabric cutting machine Lectra VIRGA.FA.CUT.MOTIF-E, year 11/2021, useful width 1.70 cm. Single cut, specific machine for cutting lines, squares and panels. Hours worked 86. Connected machine available for any tests. Hjdpfxovva Uuj Agisg

Condition: new, Parallel lathe with display Fervi T075/400V3A. Monoblock cast iron base. Height of Centers 230 mm Max. diameter on Bench 460 mm Max. diameter on Carriage 270 mm Max. diameter on Slot 690 mm Tool Height 25 mm Distance between Centers 1500 mm Distance between Guides 300 mm Bar Taper CM MT7 Bar Passage 58 mm Spindle Attachment Camlock D1-8 Spindle Speed (12)25-1700 rpm Longitudinal Feeds (42) 0.031 - 1.7 mm/rev Cross Feeds (42) 0.014 - 0.784 mm/rev Metric Threads (41) 0.1 - 14 mm Inch Threads (60) 2 - 112 TPI Tailstock Spindle Stroke 130 mm Tailstock Taper CM MT4 Motor 400 V 50 Hz 5.5 kW Coolant Pump 400 V 50 Hz 90W Machine Dimensions 2750 x 1080 x 1370 mm Net Weight 2020 kg Total Dimensions 2870 x 1180 x 1570 mm Gross Weight 2200 kg Accessories Included: 3-jaw self-centering chuck Ø250 mm / D1-8 Hsdpfx Agevbqv Hsisg 4-jaw self-centering chuck Ø300 mm / D1-8 Drive flange Ø350 mm Fixed steady rest Moving steady rest Reduction bushing CM 7 / 4 Fixed tailstock CM 4 Rotary tailstock CM 4 Thread comparator Turret guard Spindle guard Rear splash guard Quick change turret type B LED lamp Cooling system Electromechanical foot brake Bathed carriage gears oil Quick-lock tailstock carriage

Condition: good (used), Year of construction: 1990, operating hours: 9,200 h, functionality: fully functional, turning diameter over cross slide: 490 mm, turning length: 850 mm, turning diameter: 700 mm, spindle bore: 80 mm, spindle speed (max.): 3,200 rpm, travel distance X-axis: 330 mm, spindle motor power: 30 W, rapid traverse X-axis: 15 m/min, rapid traverse Z-axis: 20 m/min, total height: 2,620 mm, total length: 3,995 mm, total width: 2,620 mm, Equipment: documentation/manual, Tailstock Hjdpfx Aovga Nyjgijg Chip conveyor Tool Control Okuma 5020L Hydraulic chuck Autoblock 500 mm

Condition: excellent (used), Year of construction: 1981, working width: 520 mm, Goebel Optiforma520 year 1981 option of 7 or 8 offset colors Configuration: unwinder draw unit edge guide UV drying system carton processing unit folding unit rewinder machine complete for 24" format - printing, perforation, and magnetic unit Hodpfx Agsw Eiw Asiog

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Hsdpfx Agstk It Soijg Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented
