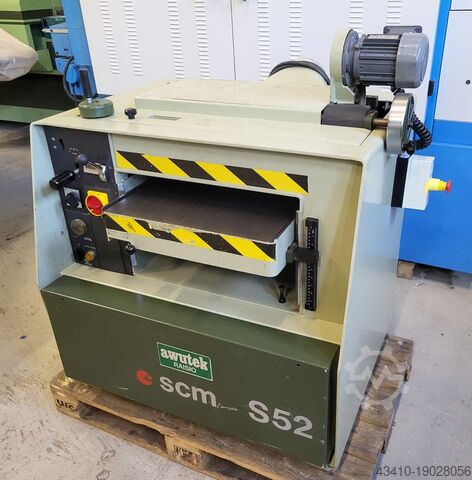

Thicknesser

SCM S52

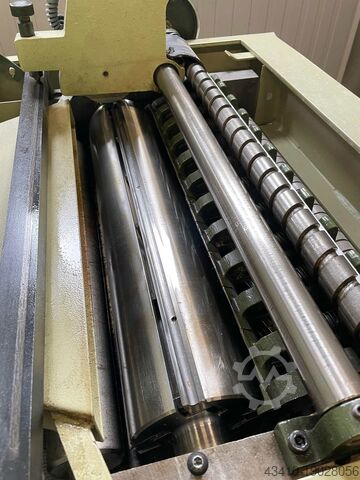

Condition: good (used), Year of construction: 1988, used thickness planer SCM S52 year of manufacture 1988 table size 520x850 mm working width 520 mm minimum working height 3 mm Podpjyvz N Eefx Afpsgi maximum working height 240 mm max. stock removal 8 mm Tersa cutterblock with 4 knives cutterblock diameter 120 mm cutterblock speed 4500 rpm feed speed 6.5-10-13-17 m/min motor power 7.5 kW required space 1000x900x1000 mm weight approx. 600 kg

Condition: new, Year of construction: 2022, Working width mm 520 Cutterblock diameter / no. of standard knives mm/n. 120 / 4 Dimension of standard knives mm 520 x 30 x 3 Pedpfx Asygtvkefpegi Max. stock removal mm 5 Thicknessing table dimensions mm 520 x 775 Feed speed on thicknesser m/min 5 / 8 / 12 / 18 Min. ÷ max. working height on thicknesser mm 3 ÷ 240 Three-phase motors starting from kW/Hz 7 (9) / 50 (60)

Condition: new, Year of construction: 2023, power: 7 kW (9.52 HP), planing width: 520 mm, number of blades: 4, overall weight: 483 kg, height adjustment type: electric, planer shaft diameter: 120 mm, planing height: 240 mm, SCM MiniMax s 52es thicknesser Specifications: - condition - new - manufacturer - SCM - width of the thicknesser table - 520 mm - length of the thicknesser table - 850 mm - minimum thickness of the element - 3 mm - maximum thickness of the element - 240 mm - maximum thickness of the thicknesser harvest - 5 mm - motor power - 7 kW - supply voltage - 400 V - shaft for 4 conventional knives - diameter of planer shaft - 120 mm - rotational speed of the planer shaft - 5000 rpm - maximum planing width - 520 mm - feed speed - 5 / 8 / 12 / 18 m/min - diameter of the exhaust stub - 120 mm - weight (net) - about 493 kg - overall dimensions - 144 x 108 x 110 cm ( W x L x H ) Podoqu U Dnjpfx Afpjgi Additional information: - machine brand new - pictures show the actual state of the object of sale - possibility to turn on and check the machine on site. - the price given in the auction does not include VAT and transport costs - available from stock in Italy

Condition: new, Year of construction: 2025, 4-knife shaft for best results of Planer Smooth running thanks to precision unit and the heavy casting Front steel feed roller with helical gearing for an optimum feed Satin Steel pull-out roller, optionally with squeegee in the excerpt The working table is mounted on four large pillars that ensure the greatest stability under all operating conditions. The thickness table is adjusted by a Handwheel with numeric display for the planing height (exactly 1/10 mm) Equipped with two speeds, of user facing the front of comfortable selectable Powerful industrial motor Stable steel-cast iron construction Equipment details: Work table Stored on four large screws, ensure the stability of the largest under all working conditions Special lifting device correctly maintain the table position, also without lock Tersa Planer knife shaft Pedpsd Hx Hpjfx Afpsgi No adjust and screw more Planer blades change in seconds Self arretierend Motor thickness table height adjustment at 52 S elite s Height adjustment of the Thicknesser table motor with electronic number For greater precision and more ease of use Dimensions and weights Length approx. 1080 mm Width/depth approx. 1440 mm Weight 455 kg Connect dust extraction Suction nozzle diameter 120 mm thickness Drive performance 7 main motor kW Installation information Space length 1440 mm Space potatoes

Condition: excellent (used), functionality: fully functional, thickness planer SCM S 63 + surface planer SCM F52 + spindle moulder SCM T160 second hand machines in Excellent working conditions Psdpevamvysfx Afpogi NOT separate sale thickness planer model SCM S 63 L'Invincibile useful working width mm. 630 maximum (minimum) working height mm. 240 (3) maximum removal mm. 8 variable feed speed mt./min. 6 ÷ 18 motorized table positioning with reading n.4 knives "Tersa" main motor power Hp 7,5 volt. 380/50 spindle moulder with tilting spindle model SCM T160 L’Invincibile spindle tilting by electric -5 ° / + 45 ° spindle lifting by electric motor power Hp 5,5 shaft diameter mm. 50 volt. 380/50 net weigth kgs. 1000 surface planer model SCM F 52 L'Invincibile working width mm. 520 tables length mm. 3000 ground cast iron tops n.4 knives tilting guide up to 45° motor power Hp 5,5 volt. 380/50
