Vandiktebank

SCM S630

Condition: good (used), Year of construction: 1994, functionality: fully functional, planing width: 630 mm, overall weight: 1,000 kg, planing height: 300 mm, number of blades: 4, number of planer blades: 4, Thickness Planer SCM S630 – Year of Manufacture 1994 For sale is an SCM thickness planer, model S630 with a 7.5 kW motor, in very good condition. Isdpfxow S I Ife Ad Dotp Highlights: - Motor: 7.5 kW - Working width: 630 mm - Planing height up to 300 mm - Electric table height adjustment with digital display of clearance height - 4-knife cutterblock with CENTROFIX reversible knife system - 2 x virtually new rubber outfeed rollers - Continuously variable feed speed - Robust mounting on 4 spindles - Extraction port Ø 150 mm Price: €6,300 net The machine is immediately ready for use and is ideally suited for professional woodworking applications. You will receive an invoice with VAT shown separately. Price ex warehouse Haldensleben. Shipping by freight forwarder possible.

Condition: excellent (used), Catalogue number: 7775 TECHNICAL DATA - Cutterblock width: 640 mm - Number of knives: 4 pcs - Maximum working thickness: 300 mm – From above: - Anti-kickback fingers - Toothed, pulling, swiveling infeed roller - Pressure bar - Planing cutterblock - Pressure bar - 2 smooth, pulling, rubber-coated outfeed rollers - Digital thickness display - Main motor: 5.5 kW - Electric table lift: 0.7 kW - Variable feed speed: 6–20 m/min - Feed motor: 1.1 kW Itodpoxl Umgsfx Ad Dep - Dust extraction port diameter: 150 mm - Dimensions (L/W/H): 1000 x 1400 x 1200 mm - Weight: 950 kg ADVANTAGES – Italian manufacture – Electric thickness display – Electric table lifting – Used thickness planer in very good condition, complete with original technical documentation (DTR), CE marking Net price: 31,900 PLN Net price: 7,590 EUR based on 4.2 PLN/EUR (Prices may vary with exchange rates)

Condition: new, The SCM S630 CLASS thickness planer is a practical heavy duty thicknesser with robust industrial design. All controls and indicators are at the front control panel The machine can plan parts up to a massive 300 mm thickness and 630 mm width. The SCM feed system uses up to three driven upper feed rollers. Itsdpfxedccuke Ad Dep They have a large diameter and are power driven The first roller is sectional The two outfeed rollers are rubber coated. Max working width 630 mm Main motor power 7 kW 9.5hp Worktable dimensions 640 x 1000 mm Working height (min / max) 3.5 / 300 mm Maximum stock removal 8 mm Minimum working length 260 mm Minimum working width 10 mm Cutterblock speed 4500 rpm Cutterblock diameter 120 mm No of knives 4 Dimensions of standard knives 630 x 35 x 3 mm Variable Feed speeds 4 - 20 m/min Dust exhaust diameter 150 mm

Condition: ready for operation (used), Technical characteristics One-piece cast-iron frame Useful width: 630 mm Usable height: 3.5 to 300 mm Minimum machining length: 260 mm 7 kW (9.5 hp) motor 4-iron spindle Shaft diameter : 120 mm Electric lift/lower Digital height display Cast-iron table : 640 x 1000 mm Supported by 4 columns Driven by steel and rubber rollers Isdpfotzth Iox Ad Djtp Feeding speeds : 5; 8; 12 and 16 m/min Power and Motors Voltage: 380 V Pluging: Three-phased Power: 11 Kw Motor: 9,5 CV Overall dimensions Weight: 785 Kg

Condition: used, Year of construction: 2007, used, top equipment, including new outfeed rollers with Tersa knife shaft large planing height Brand: SCM Type: S630 E - Linvincibile Year of manufacture: 2007 Machine no.: AB/184684 Itedpfx Adswqg R Dj Dep GS tested CE type-tested GS wood dust tested Increased motor kW 7.5 Planing width approx. 630 mm Planing height approx. 300 mm Table sliding roller 2 pieces adjustable Chain pressure bar Chain feed roller Rubber outfeed roller 2x new Feed up to 20m/min stepless Number of knives 4 automatic motor brake Knife system - Tersa reversible knives Digital display for planing height electric height adjustment Extraction connection 160 mm Space required approx. 1400 x 1000 x 1200 mm Weight approx. 1000 kg Storage location 97447 Gerolzhofen, free loaded, unpacked Handover in as-is condition, as inspected, without guarantee and warranty

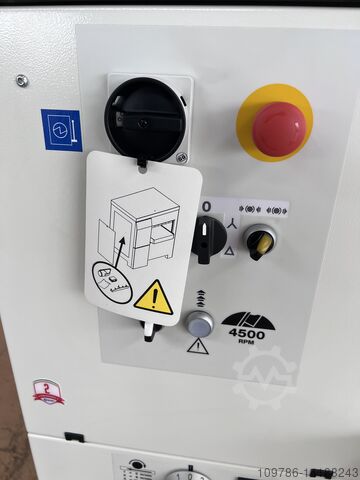

Condition: new, Year of construction: 2023, planing width: 630 mm, overall weight: 785 kg, extraction nozzle diameter: 150 mm, planing height: 300 mm, planer shaft diameter: 120 mm, number of blades: 4, power: 7 kW (9.52 HP), Good morning, We are offering for sale a brand new thicknesser manufactured by SCM model s630 nova To begin with, some useful information about the machine: Iodpfsqu U Axox Ad Dotp * working width - 630 mm * working height - 300 mm * engine with power of 7,0 kW * 4-knife shaft for traditional knives * analog height indicator * speed regulation in the range 5/8/12/18 m/min * electric up/down adjustment * brake on motor * weight 785 kg * 2023 year of production * machine meets CE standards Machine brand new, available from stock.
