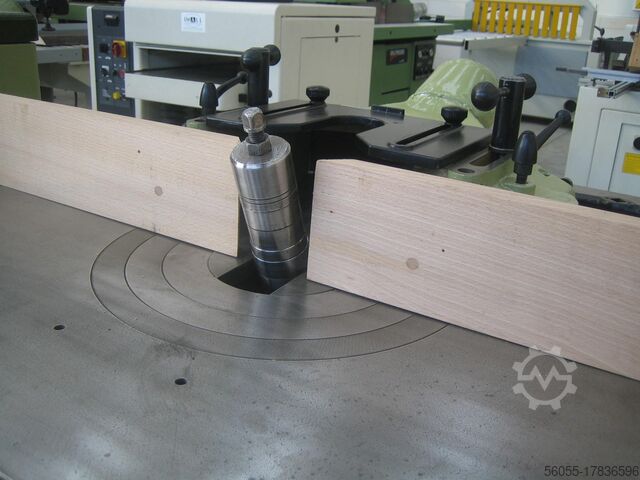

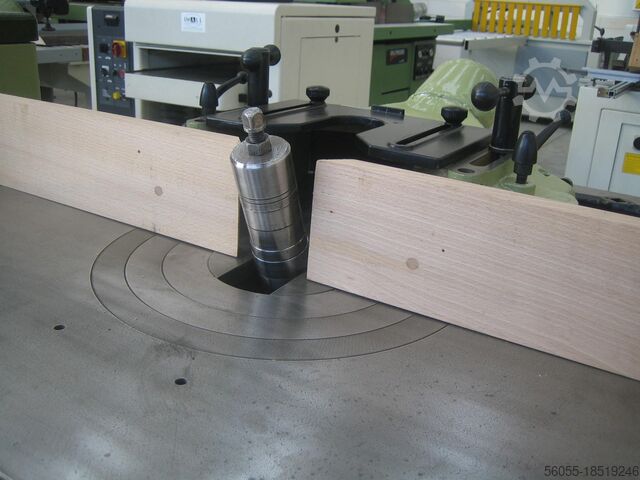

SPINDLE MOULDER with tilting spindle SCM

SCM T 160 L'Invincibile

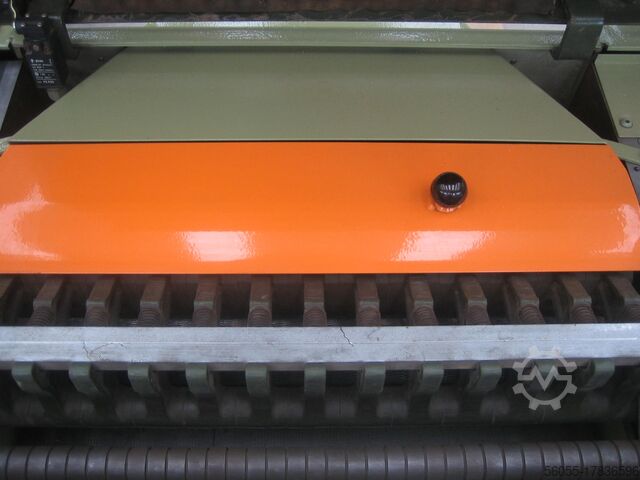

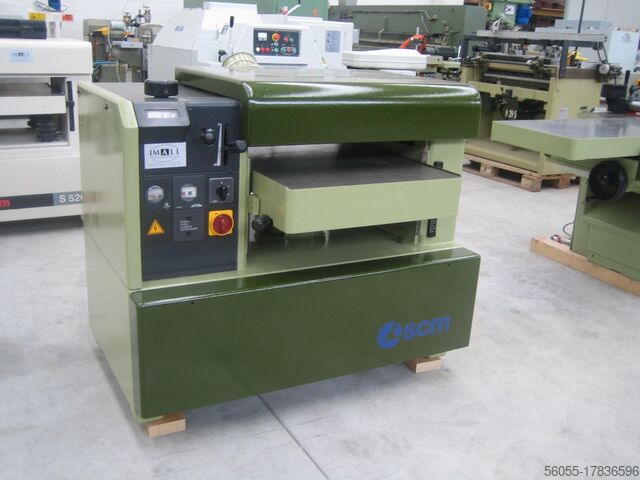

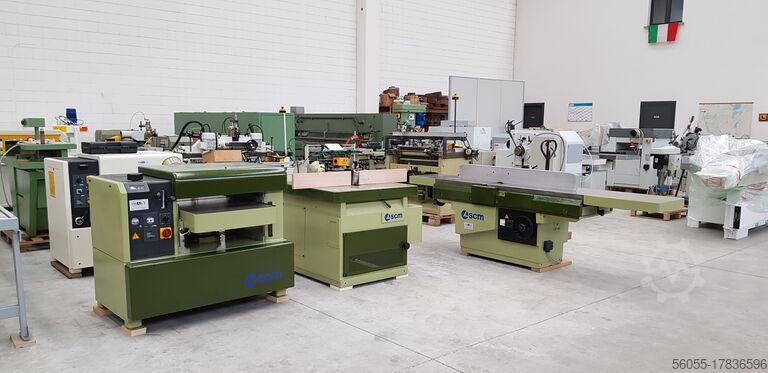

Condition: excellent (used), functionality: fully functional, thickness planer SCM S 63 + surface planer SCM F52 + spindle moulder SCM T160 second hand machines in Excellent working conditions NOT separate sale thickness planer model SCM S 63 L'Invincibile useful working width mm. 630 maximum (minimum) working height mm. 240 (3) maximum removal mm. 8 variable feed speed mt./min. 6 ÷ 18 motorized table positioning with reading n.4 knives "Tersa" main motor power Hp 7,5 volt. 380/50 spindle moulder with tilting spindle model SCM T160 L’Invincibile spindle tilting by electric -5 ° / + 45 ° spindle lifting by electric motor power Hp 5,5 shaft diameter mm. 50 volt. 380/50 net weigth kgs. 1000 surface planer model SCM F 52 L'Invincibile working width mm. 520 tables length mm. 3000 ground cast iron tops n.4 knives Bjdpfovamvyjx Afgjdi tilting guide up to 45° motor power Hp 5,5 volt. 380/50

Condition: used, Year of construction: 1997, spindle tilting: yes -5 bis 45° height adjustment: electric tilting adjustment: electric fence adjustment: manually Höhenanzeige: digital Schwenkwinkelanzeige: digital Fräsanschlaganzeige: mechanical counter spindle diameter: 30 mm speed: variable power consuption: 8 kW motor brake: yes, automatic suction connection: 2 x 120mm machine length: 1400mm machine width: 1400mm Bjdpfsz A Eaiox Afgsdi weight: 1100kg

Condition: used, Year of construction: 1999, Second-hand machine Year of manufacture: 1999 Features and technical specifications: - with swivelling spindle: 0° – 45° - with aluminium roller table - Table dimensions: 1100 x 620 mm - Working height: 880 mm - Roller table dimensions: 900 x 200 mm - Roller table travel: 900 mm - Milling spindle diameter: 30 mm - Milling spindle stroke: 150 mm - Speeds: 3100/4600/6200/8000 rpm - Motor: 4 kW - with 4-roller feed unit - Dimensions: 1200 x 1000 x 1400 mm - Weight: approx. 490 kg Bdsdpfx Aezk N Tfefgsi Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 1987, Used machine Year of manufacture: 1987 Condition: completely inspected by the workshop Table size 2000 x 880 mm (entire table in a cast construction) with extendable frame support Bdedpfjz Dcp Dsx Afgji Drive motor with pole change, 5/6 kW Spindle speeds 3000/4500/6000/9000 rpm Vertical adjustment of the milling spindle 110 mm Swivel angle of the milling spindle 45° with Holz Her 3-roller feed mechanism Pictures show the machine in a condition prior to refurbishment. Availability: approximately 3-4 weeks after order receipt Location: Flörsheim

Condition: used, Year of construction: 1996, Used, excellent condition Partially overhauled, new switches Spindle run-out 0.03 mm Motor newly mounted and rewound Make: Lazzari Bedpfx Ajy Ay Dnsfgedi Model: Base 45 Year of manufacture: 1996 Machine-No.: 9601076 CE type-tested Motor power: 4.0 kW Tiltable 45° Automatic brake 5 speed settings: 3 / 4.5 / 6 / 8 / 10,000 rpm Forward/reverse operation Table size: 1100 x 700 mm Spindle shaft diameter: 30 mm Control panel on top Extraction port: diameter 120 / 120 mm Space requirement: approx. 1100 x 1200 x 1400 mm Weight: approx. 490 kg Total connected load: 4 kW Location: 97447 Gerolzhofen, loaded free on truck, unpacked Delivery in current as-inspected condition, without warranty or guarantee.
