Table milling machine

SCM T130

Condition: excellent (used), SCM T130E Spindle Moulder with Glazing Bead Unit Spindle diameter: 35 mm Total spindle length: 140 mm Variable spindle speed via frequency inverter: up to 10,000 rpm Cedpfx Asxbnyrebwerh Main motor power: 5.5 kW Unit for cutting glazing bead Unit power: 2.2 kW Electronic spindle height adjustment Electronic fence adjustment 4-roller feed Masterwood Feed speed adjustment via variator CE certified DTR technical documentation Year of manufacture: 2005

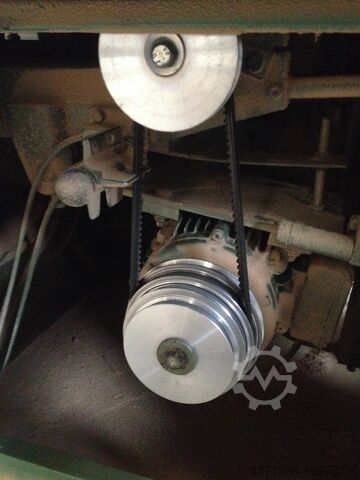

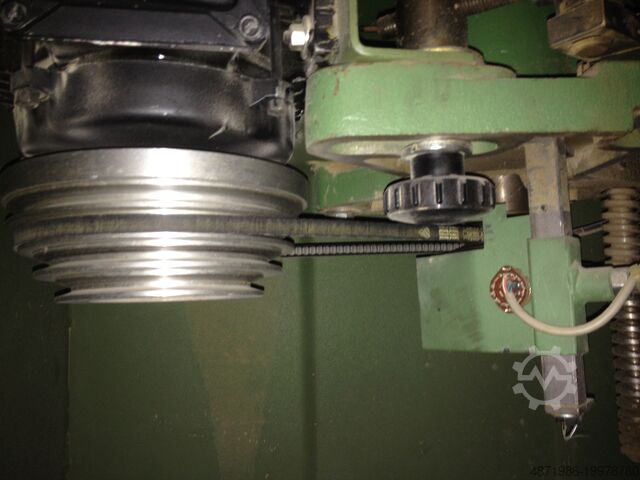

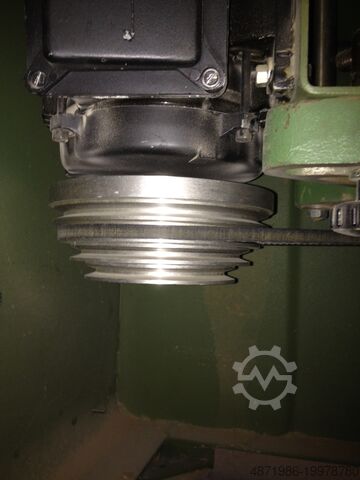

Condition: used, Year of construction: 1991, Connection rating 380V 12A 7.5kW Star-delta switch with forward/reverse rotation Spindle diameter 40 mm Machine table 1190 mm with 2 x extensions 2600 mm Support rail Height adjustment via handwheel 2x extraction ports 120 mm Crodjxdmidspfx Abwsh Spindle speeds by repositioning the V-belt: 10000/7000/6000/4500/3000 rpm

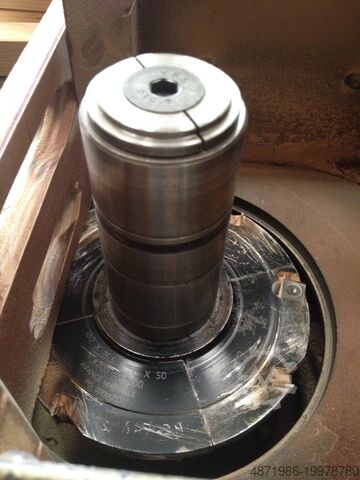

Condition: used, Year of construction: 1997, machine/vehicle number: AB/109677, SECOND-HAND SPINDLE MOULDER SCM MOD. T130N - CE RULES - S/N AB/109677 - Year 1997 Crsdowrh Nkepfx Abwsh Technical specifications Spindle diameter 50 mm Spindle height 180 mm Height adjustment; useful stroke 140mm Rotation spindle speed: 3.000 / 4.500 / 6.000 / 7.000 / 10.000 Maximum tool diameter 250 mm Table top dimensions 1200 x 730 mm Height from base 925 mm Voltage 400V, 3 phases, 50 Hz, 12 A Motor power 5.5 kW Dimension 1200 x 1000 x 1400 mm Weight 600 Kg

Condition: used, Spindle moulder SCM T130 NPS - used - fine-adjustable fence, tenoning and slotting table, right-/left-hand rotation Crsdpfxew Nv Nfj Abwsh ----- Technical Data ----- Table size: 1,080 x 750 mm, Spindle diameter: 30 mm, Speeds: 3,000/4,500/6,000/7,000/10,000 rpm, Extraction port Ø: 120 mm, Lower extraction port Ø: 120 mm

Condition: used, functionality: fully functional, spindle diameter: 30 mm, – Italian manufacture Cedpfx Absw Ip R Howerh – CE marking – long worktables TECHNICAL PARAMETERS: – spindle diameter: 30 mm – spindle height: 150 mm – maximum tool diameter: 350 mm – five spindle speeds: 3000 / 4500 / 6000 / 7000 / 10,000 rpm – height adjustment – electric brake – motor power: 5.5 kW – table size: 730 x 1200 mm – two auxiliary tables: 410 x 670 mm – table height from base: 925 mm – extraction port diameter: 2 x 120 mm – machine dimensions (L/W/H): 261 / 100 / 120 cm – weight: 800 kg

Condition: used, complete with tenon cutting slide. Csdpfjii Rpxex Abwjrh - Eccentric clamping device - adjustable telescopic fence with 1 positionable stop - tenon cutting guard with suction hood

Condition: excellent (used), Spindle moulder SCM T130N -used- Finely adjustable milling fence, Right/left rotation ----- Technical data ----- Table size: 1200x730 mm, Working table height: 920 mm, Spindle diameter: 30 mm, Spindle usable length: 115 mm, Cjdpfx Abswrrz Reworh Max. cutter diameter: 250 mm, Max. retractable cutter diameter: 250 mm, Height adjustment: 200 mm, Speeds: 3000/4500/6000/7000/10000 rpm, Suction nozzle Ø: 120 mm, Lower suction nozzle Ø: 120 mm, Dimensions (LxWxH): 1200x850x1300 mm Quality info: - Spindle concentricity checked - Brake checked - Complete basic inspection - Complete basic cleaning - Electrics checked - Ready for immediate use
