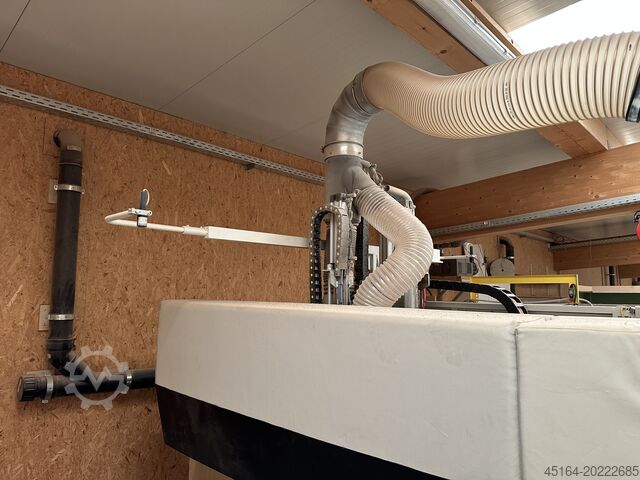

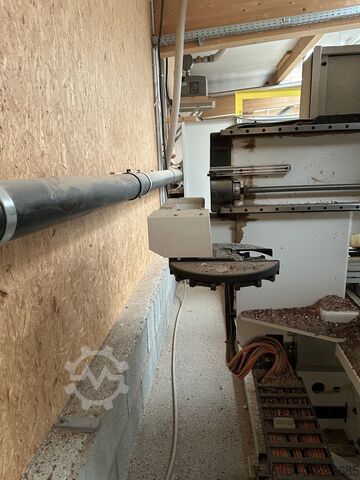

CNC machining center

SCM Tech Z2

Condition: used, SCM Tech Z2 machining centre, main spindle 8.5KW, working area 3050 x 1300mm, tool holder HSK-F63, vertical drills: 12 pcs, horizontal drills: 6 pcs, Software: SCM XILOG MAESTRO, Tsdpfx Aozxqi Rsnteb operating hours: 6500h, year: 2014, weight: 3000kg.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Working area X: 3280 mm Working area Y: 1250 mm Tjdpszwgkbsfx Antsb Electrospindle Drilling heads for vertical drilling: 12 Drilling heads for horizontal drilling X: 4 Drilling heads for horizontal drilling Y: 2 Blade for grooving in the X direction 8-position turret tool changer 10-position linear tool changer on the right side 1 additional milling motor with 2 outputs Work table with 6 stops Programming software: Xilog Plus Control panel 1 vacuum pump with a capacity of 90 m3/h Safety guards Approximate weight: 2500 Kg Available starting November 2026

Year of construction: 2010, operating hours: 540 h, condition: ready for operation (used), travel distance X-axis: 3,060 mm, travel distance Y-axis: 1,735 mm, travel distance Z-axis: 250 mm, overall weight: 2,000 kg, number of axes: 4, This 4-axis SCM TECH Z2-27-C wood boring machine was manufactured in 2010. It features a maximum workpiece height of 160 mm, length of 2700 mm, and width of 1300 mm. The machine includes a routing spindle and a horizontal boring unit, ensuring versatility in operations. If you are looking to get high-quality wood processing capabilities, consider the SCM TECH Z2-27-C machine we have for sale. Contact us for further details. • Electrical: 400 V, 3 + N, 33 A, 50 Hz, breaking capacity 10 kA • Control: Xilog Plus • Machining units: saw unit (included), horizontal boring unit (included), routing spindle: 1 • Workpiece capacity: max height 160 mm; max length 2700 mm; max width 1300 mm; max width (double posts) 1210 mm • Max travel speed: 60 m/min • Clamping system: pneumatic locking bars; number of clamping bars: 6 Tsdpfozug A Eox Antsb • Suction cup sizes: 120x120 mm and 55x120 mm • Machine on: 5.500 h

Condition: refurbished (used), Year of construction: 2012, machine/vehicle number: AA1/016854, functionality: fully functional, 3-AXIS DRILLING & MILLING CENTER Make: SCM Model: TECH Z2 Comp R0410.01 Serial No.: AA1/016854 Year: 2012 (Photos taken before overhaul, functional testing, and cleaning) MAKING CAPACITIES: - Max. workpiece height (thickness): 160 mm - Max. workpiece length: 2700 mm Dual station: 1210 mm - Max. workpiece width: 1300 mm Movements: - X-axis travel: 3060, Y-axis: 1735, Z-axis: 250 mm - Max. travel speed (vector: 60 m/min) MACHINE COMPOSITION: - 6 Pneumatically clamped beams for suction cups, e.g., 120x120 or 55x120 mm - Unit Automatic lubrication - Mounted unit on the neck of the sign composed as follows: (X movements by rack and pinion, Y movements by screws and bushings; high-quality precision linear guides with automatic lubrication) • 11 kW (15 HP) milling/routing unit: - Rotation 1500 - 24000 rpm, variable speed, right/left direction - Tool holder connection type HSK63F, ER32 collet - Onboard magazine for 8 tools - Perimeter extraction hood • 18-chuck drilling unit: - 12 independent vertical chucks (8 in the X direction, 5 in the Y direction) - 6 horizontal chucks (4 in the X direction, 2 in the Y direction) Tsdpfx Ansv Tzrvjteb - Center distance between chucks 32 mm for M10 / Ø11 mm drill bits - Rotation speed 4000 rpm - Pneumatic vertical stroke 60mm - Perimeter extraction hood • Integrated unit for groove sawing and milling - Ø120mm blade, 6mm thick - 6000 rpm speed - 60mm pneumatic vertical stroke • Mobile console on a jib with a control PC: – Windows XP operating system – 17" LCD screen – Ethernet connection – Xilog and Maestro machine interface software OTHER FEATURES: - 400V overall power supply. Three-phase + N+T 50Hz IN37A - 12 kW electro-spindle motor - 2.2 kW drilling/grooving motor - 1 x 2.4 kW vacuum pump: 90-108 m3/h - Pneumatic supply >=7 Bar - Suction: Suction inlets: 2 x Ø 150 mm (1 x Ø 200 mm inlet using the installed bypass) Recommended speed: 30 m/s - 3400 m3/h - CE-compliant machine with safety zone and light barrier Operating dimensions with safety zone: see documentation excerpts Shipping dimensions: to be specified when preparing the equipment Estimated total weight: 2200 kg Machine supplied with instruction manual and software, spare parts list, electrical and pneumatic diagrams. Please contact us for the supply of consumables, accessories, and/or vacuum systems. Machine serviced and brought into compliance, with quality control and dynamic functional testing. 3-month warranty and compliance certificate. Available from stock, subject to prior sale. Prices excluding VAT. Delivery and additional services upon request.
