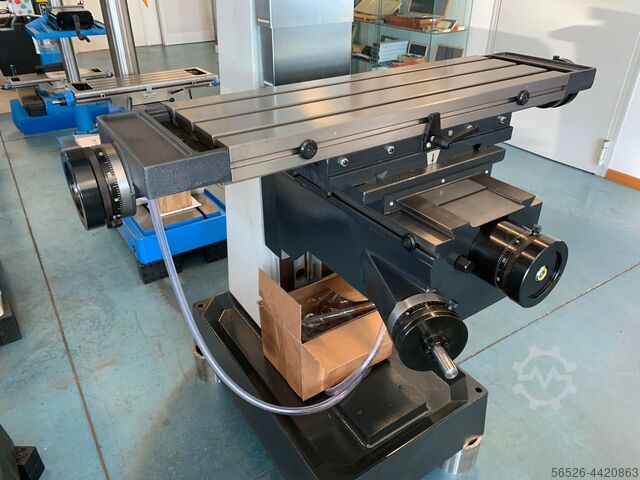

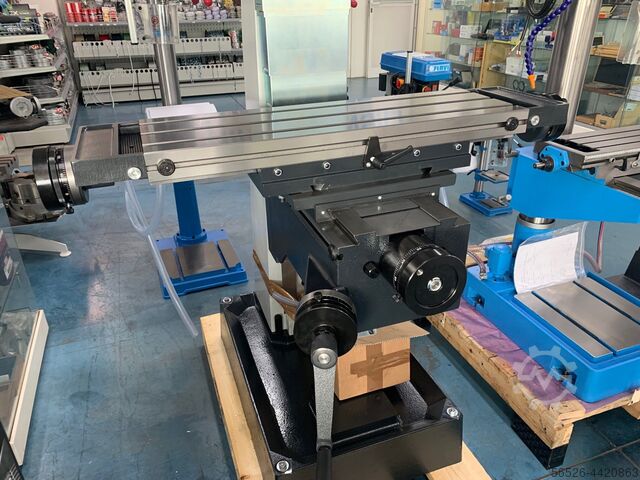

Drilling and milling machine

Serrmac TCS E TC

Condition: new, Fastech 3-Roll Round Bending Machine FRS 1250 x 140 Technical Specifications: Special equipment included in the price: hardened rollers motorized rear roller adjustment motorized lower roller adjustment 2 x digital display Sheet metal width 1250 mm Sheet metal thickness 5.5 mm max. Sheet metal thickness for pre-bending 5.0 mm Roller length 1250 mm Nedpfx Aohzq Dxoc Tjcu Roller diameter 140 mm Smallest bending diameter 210 mm Weight 1365 kg Dimensions L-W-H 2020 x 900 x 1200 mm Motor: 2.2 kW Equipment: Top and bottom rollers electrically driven Top roller can be pivoted outwards Conical bending device Asymmetrical roller arrangement Self-braking main motor Separate control and operating panel Safety cable Values apply to St-37 / 240 N/mm² CE marking

Condition: new, Bernardo Gear Drill Press GB 35 THS Technical Specifications Drilling capacity in steel: 35 mm Drilling capacity in cast iron: 40 mm Tapping capacity max.: M24 Drill chuck: 1 - 13 mm / B 16 Morse taper: MK 4 Ncsdpfxsd Du Two Ac Tju Spindle speed: (12) 43 - 2355 rpm Feed range: 0.1 / 0.2 / 0.3 / 0.4 mm/rev Overhang: 340 mm Distance spindle / table max.: 580 mm Distance spindle / base plate: 1185 mm Quill stroke: 200 mm Column diameter: 160 mm Table size / T-slot size: 540 x 440 mm / 14 mm Working area base plate: 430 x 440 mm Motor power: 1.3 / 1.8 kW Machine dimensions (W x D x H): 660 x 900 x 2240 mm Weight approx.: 553 kg Scope of delivery • Drill chuck 1 - 13 mm / B 16 • Drill chuck arbor MK 4 / B 16 • Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1 • Motorized table feed • Electromagnetic spindle feed • Initial filling with Shell Tellus 46 • Automatic tool ejector • Tapping device • Digital speed display • LED machine light • Coolant system • Digital depth gauge • Height-adjustable protective shield
