CNC Lathe

Shenyang - Fermat CAK 61

Condition: used, Year of construction: 2003, - Fagor 8055 CNC control - Operating modes: manual/cycle-controlled - 8-fold tool turret VDI40 - Year of construction 2003 Technical data Capacity: - Center height: 200 mm - Center width: 1000 mm - Permissible Ø over guide bed: 400 mm - Permissible Ø over longitudinal slide: 370 mm - Permissible Ø over cross slide: 210 mm - Bed width: 300 mm Headstock: - Bore of main spindle: 65 mm - Main spindle nose: Camlock-n°6 / DIN 55027-n°6 - Morse taper of the main spindle: 5 - Spindle speeds: 2 - Constant cutting speed: 0-700 / 700-3000 rpm Feed rates: Nodpfxouwrz Hs Ah Doli - Working feed Z/X: 0 - 7000 mm/min - Rapid traverse Z/X: 10 m/min Tailstock: - Tailstock shank Ø: 58 mm - Tailstock shank travel: 155 mm - Morse taper tailstock: 4 Motors: - Main motor power: 7.5 kW - DC motor Z-axis power: 12 Nm - DC motor X-axis power: 4 Nm - Motor pump power: 0.57 kW Dimensions: - Machine weight: approx. 2200 kg - Dimensions WxHxD: 2980 x 1730 x 1610 mm

Condition: used, Year of construction: 2001, - Fagor 8055 CNC control - Operating modes: manual/cycle-controlled - 8-fold tool turret VDI30 - Overhauled 2023 - Year of construction 2001 Technical data Capacity: - Center height: 200 mm - Center width: 1000 mm - Permissible Ø over guide bed: 400 mm - Permissible Ø over longitudinal slide: 370 mm - Permissible Ø over cross slide: 210 mm - Bed width: 300 mm Headstock: - Bore of main spindle: 65 mm - Main spindle nose: Camlock-n°6 / DIN 55027-n°6 Nljdpsvf I Diefx Ah Doi - Morse taper of the main spindle: MK5 - Spindle speeds: 2 - Constant cutting speed: 0-750 / 750-3000 rpm Feed rates: - Working feed Z/X: 0 - 7000 mm/min - Rapid traverse Z/X: 10 m/min Tailstock: - Tailstock shank Ø: 58 mm - Tailstock shank travel: 155 mm - Morse taper tailstock: 4 Motors: - Main motor power: 7.5 kW - DC motor Z-axis power: 6.8 Nm - DC motor X-axis power: 3.4 Nm - Motor pump power: 0.57 kW Dimensions: - Machine weight: approx. 2300 kg - Dimensions WxHxD: 2980 x 1730 x 1610 mm

Condition: good (used), Year of construction: 2000, Equipment: documentation/manual, LATHE TORNADO COLCHESTER 200 CNC FANUC GE Series DIAM. AUTOCENTRATING MANDRIN : 250 mm CORSE : X : 215 mm Z : 400 mm TOOL MAGAZINE : 12 POSITIONS INCLUDING VARIOUS TOOL HOLDERS AND TOOLS BAR WIDTH : 65 mm TAILSTOCK IN CYCLE Nodpfjtuut Uex Ah Deli CHIP EVACUATOR INCLUDING ALL DOCUMENTATION

Condition: good (used), Year of construction: 1999, functionality: fully functional, CNC lathe tornado A90 after renovation in 2024 tool head VDI30 equipment bar feeder collet chuck on E173 The machine is working can be seen in production Nlsdswavqxjpfx Ah Doi

Condition: new, Year of construction: 2023, functionality: fully functional, type of input current: three-phase, overall weight: 1,030 kg, rotational speed (max.): 2,500 rpm, turning diameter over cross slide: 320 mm, bar passage: 56 mm, spindle motor power: 3,700 W, mount diameter: 16 mm, spindle bore: 56 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 150 rpm, turning length: 750 mm, Equipment: rotational speed infinitely variable, Technical Specifications Center Distance 750 mm Center Height 160 mm Swing Diameter Over Bed 320 mm Swing Diameter Over Cross Slide 150 mm Bed Width 215 mm Spindle Bore 56 mm Spindle Mount A2-5 Speed Range, Continuously Variable 150 - 2500 rpm Travel X-Axis / Z-Axis 160 mm / 750 mm Rapid Traverse X-Axis / Z-Axis 4 / 7 m/min Number of Tool Positions 6 pcs. Tool Shank Dimensions 16 x 16 mm Positioning Accuracy ± 0.01 mm Quill Diameter 45 mm Quill Travel Nodpfx Ahjwh Aiwj Deli 100 mm Quill Mount MT 4 Motor Power 3.7 kW Machine dimensions (W x D x H) 1910 x 1150 x 1840 mm Weight approx. 1030 kg

Condition: excellent (used), Year of construction: 1999, • FANUC 210i - T control (cycles) • Max. distance between centers: 1,250 mm • Max. turning diameter: 400 / 585 mm in offset Nljdpfxsw S E R Ro Ah Dsi • Spindle speed: 12 . . . 2,500 rpm • Spindle bore: 54 mm • X-axis: 210 mm • Z-axis: 1,181 mm • Cutting gap adjustment: 0.05 – 0.8 mm • Motor power: 7.5 kW • Weight: approx. 2,700 kg

Year of construction: 2012, condition: ready for operation (used), General Data Measurements width 1150 mm Measurements depth 2500 mm Measurements height 1650 mm Machine weight 1200 kg Control Unit Brand FAGOR Model 8055tc Main Drive Spindle speed range 4000 Number of axis 2 Nlsdjw Nb E Ejpfx Ah Doi Movement X-Axis Rapid Traverse 15 m/min Z-Axis Rapid Traverse 12 m/min Turret Number of turrets 1 This Pinacho Smart Turn 180/42 1000 was manufactured in 2012. A robust horizontal turning machine featuring a turning length of 1000mm, spindle clearance of 42mm, and a turning diameter of 360mm. It includes an 8-fold tool changer and Fagor 8055tc control. Dimensions are 2.5 x 1.15 x 1.65 m, weighing approximately 1.2t. Consider the opportunity to buy this Pinacho Smart Turn 180/42 1000 horizontal turning machine. Contact us for more information. Application Types Turning

Condition: ready for operation (used), Year of construction: 2013, General Data Machine weight 12020 kg Nlodpfx Ahjwfuque Dsi Control Unit Brand MAZATROL Movement X-Axis Movement 203.2 Y-Axis Movement 70.10 Z-Axis Movement 71.8 Additional Equipment Tool Taper: CAT#40 / Automatic Tool Changer (ATC): 48 tools This 3-axis Mazak VCN 700E/40-II vertical machining center was manufactured in 2013. Ideal for precision engineering, it offers robust construction and reliable performance. Consider the opportunity to buy this Mazak VCN 700E/40-II vertical machining center. Contact us for more information. Application Types Milling

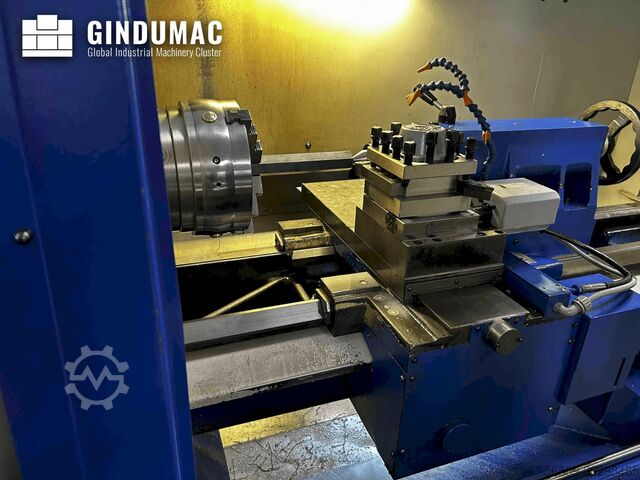

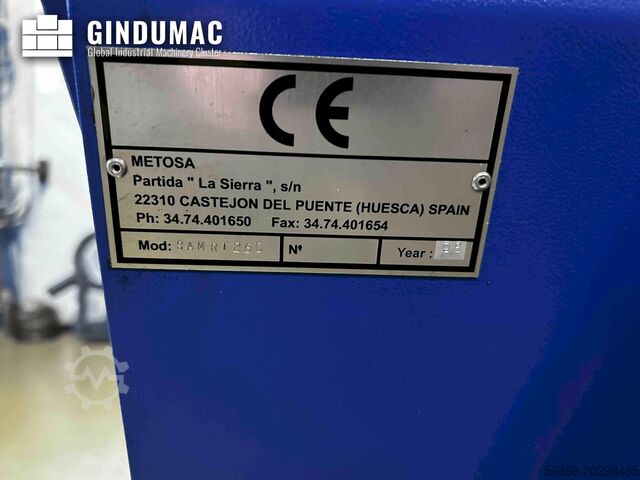

Year of construction: 2008, condition: ready for operation (used), Control Unit Brand FANUC Njdpexnr Dzefx Ah Doli Main Drive Spindle speed range 2000 rpm This Pinacho SMART 260 was manufactured in 2008. A reliable horizontal turning machine, it offers consistent performance for various machining tasks. Ideal for workshops requiring precision in turning operations. Contact us for more information. Application Types Turning

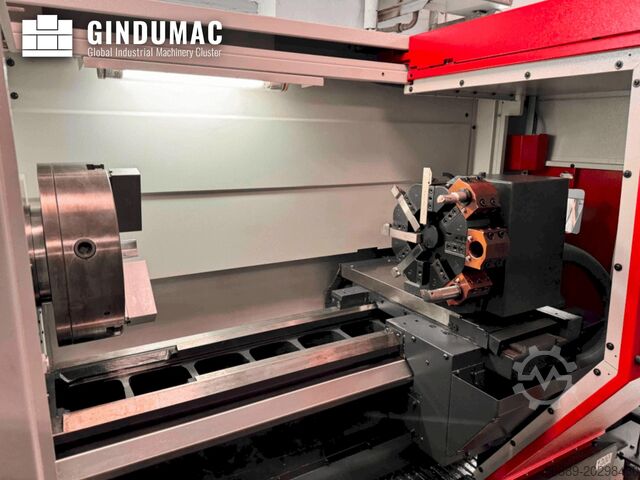

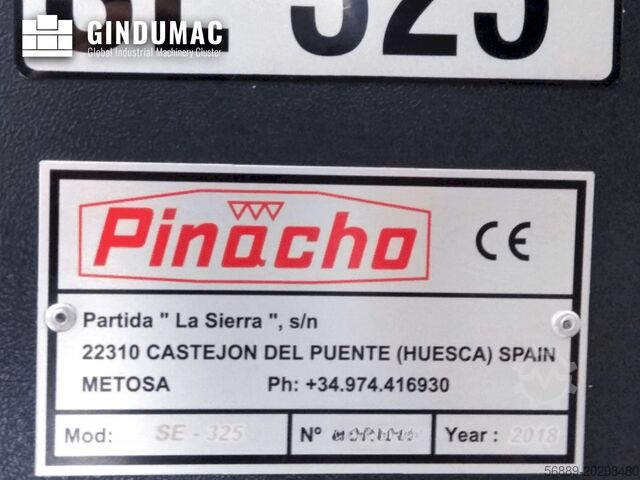

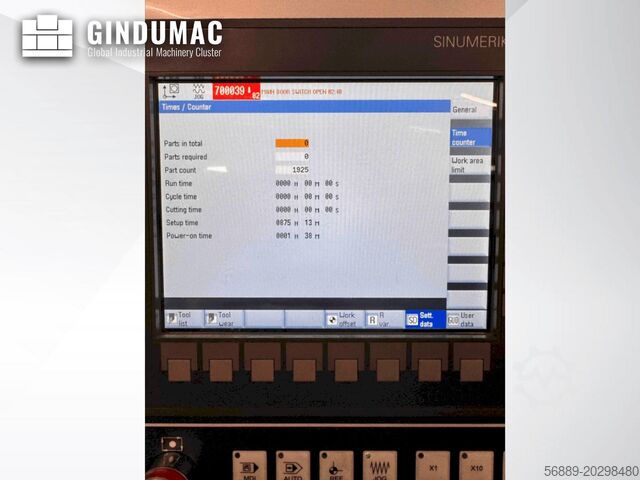

Year of construction: 2018, condition: ready for operation (used), General Data Measurements width 1480 mm Measurements depth 3010 mm Measurements height 2110 mm Machine weight 2250 kg Control Unit Brand SIEMENS Main Drive Spindle speed range 80-1250 rpm Workpiece Workpiece drm over bed 650 mm Workpiece drm over support 440 mm Media Chip conveyor Yes This Pinacho SE325 was manufactured in 2018. A reliable horizontal turning machine, it offers consistent performance for various machining tasks. Ideal for workshops seeking a dependable solution for turning operations. Contact us for more information. Nodpfx Aexnr Dush Deli Application Types Turning
