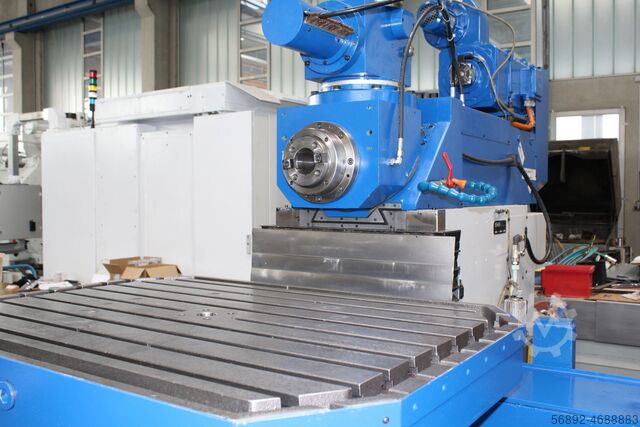

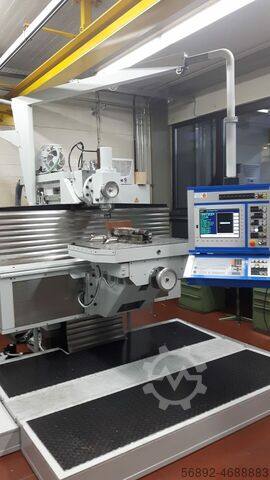

Milling machine

SHW UF 31 UF 41

Condition: used, Year of construction: 1984, x-travel 2500 mm Isdetqqnwepfx Ahueht y-travel 750 mm z-travel 1000 mm table surface area 2550 x 800 mm spindle taper SK 50 control HEIDENHAIN, TNC 150 B weight of the machine ca. 16 t

Condition: used, Year of construction: 1983, internal diameter min / max: 10 / 250 mm grinding depth 400 mm external diameter max. 380 mm swing dia. 390 mm table travel max. 550 mm stroke of the table min. 2 mm rapid traverse 10 m/min table speed -stepless- 0 - 10 m/min rough adjustment 18 mm fine adjustment 4 mm Ihsdpjvprxfsfx Ahuet max. workpiece weight 100 kg spindle head B 6 DIN 55021 spindle turning speed - stepless 15 - 1.500 U/min pivoting angle +/- 30 Grad spindle bore 50 mm power capacity 2 kW rapid traverse 0 - 250 mm/min stroke 70 mm power requirement 3 kW weight of the machine ca. 2,7 t dimensions of the machine ca. 3,0 x 3,0 x 3,2 m Internal Grinding Machine BAHMÜLLER - JES 12 - new control (July 2015)

Condition: used, Year of construction: 1979, x-travel 1800 mm y-travel 1200 mm z-travel 900 mm total power requirement 50 kW Ihsdst Hw Enopfx Ahuet weight of the machine ca. 15 t dimensions of the machine ca. m

Condition: good (used), Year of construction: 1987, machine/vehicle number: 140379007, Technical details: X - path 2200 mm Y - travel 1600 mm Z - travel 1600 mm W - travel 900 mm B - 360° Work tables: Table length 1700 mm Ihedpfx Aetyi Ipehust Table width 1520 mm Table height 180 mm Table movement X-axis 2200 mm Table movement Z-axis 1600 mm Table load 8 t Speed_max 1000 Rpm Speed_min 2.5 rpm Motor power _11 kW_/ 13 kW Input power 23.2 kW Spindle diameter ∅ 130 Feed length W-axis 900 mm Rapid traverse X-axis 2.7 mm/min Rapid traverse Y-axis 2.7 mm/min Rapid traverse Z-axis 2.7 mm/min Tool holder ISO 50 Number of controlled axes 5 Position of the milling head Horizontal Workpiece weight (max) 8 000 kg Machine dimensions Length 6000 mm width 4500 mm Height 4850 mm Machine weight cca: 20000 kg The machine can be viewed under power by appointment and is in very good condition. is in very good condition.

Condition: used, STUDER CT 960 is an Internal grinding machine delivering precision, high accuracy and reliable performance. Working capacities: centre height 150 mm, grinding length 150 mm, X/Z travels 400 mm, wheel diameter 250 mm, spindle hole 35 mm; B-axis +61/-91°, rotatable head -5/+275°, turret with 4 spindles. Main specs: spindle speeds 6000 / 45000 / 60000 / 90000 rpm; X/Z feeds 12 m/min; air 6–10 bar; 3x 400 V 50 Hz; total power 34 kVA; weight ~4050 kg; dimensions L 3218 × W 2256 × H 2300 mm. Equipment: coolant system, measuring probe, diamond redresser, spindle cooling, flanges for internal grinding, tool holders, 3-jaw chucks Ø100/125/160, magnetic chuck Ø125/300, tool cabinet, lamp, fire system, electronic handwheel, external grinding spindle 6000 rpm, calibration accessories. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors. Ihsdpoxx U Aujfx Ahujt

Year of construction: 1990, condition: ready for operation (used), A CNC universal milling and drilling center SHW is available. Travel X/Y/Z: 6000mm/2100mm/1500mm, milling head swivel: 180°, rapid traverse X/Y/Z: 8m/min, speed: 4500rpm, spindle power: 31.5kW, machine dimensions X/Y/Z: approx. 11000mm/9000mm/6000mm, weight: approx. 44000kg. Documentation available. On-site inspection is possible. Ihsdpfxjuh Azij Ahuot

Condition: ready for operation (used), controller manufacturer: Heidenhain TNC 426, empty load weight: 19,000 kg, total length: 6,120 mm, total width: 5,050 mm, total height: 3,700 mm, volledige CNC indexeerfreeskop (2x 2,5°) gereedschapswisselaar met 30 posities gekoelde deurspindel en 2 magneettafels : 1000 x 300 mm Longitudinal travel X-axe: 3600 mm Cross travel Y-axe: 1000 mm Travel Z-axe: 1600 mm Dimensions clamping space- table: 4100 x 900 mm Power on spindle: 22/29 kW Admission in millinghead (ISO): BT 50 Max speedrange: 1 > 2250 rpm Ihsdoxpkifspfx Ahuet

Condition: excellent (used), travel distance X-axis: 5,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 8 m/min, rapid traverse Y-axis: 8 m/min, rapid traverse Z-axis: 8 m/min, feed rate X-axis: 8 m/min, feed rate Y-axis: 8 m/min, feed rate Z-axis: 8 m/min, pivoting range: 340 °, table length: 5,000 mm, table width: 1,730 mm, Technical Specifications Travel Paths • X-axis (bed): 5,000 mm Ihedowfd Dkspfx Ahujt • Y-axis (vertical): 1,600 mm • Z-axis (headstock): 1,500 (1,200) mm Control System • CNC control: Heidenhain TNC 415 Feed Rate • X-, Y-, and Z-axes continuously variable from: 2 – 8,000 mm/min Universal milling head in orthogonal design • Motorized milling head swivel range: 340 degrees • Milling head swivel range: 180 degrees • Tool holder: SK 50 Clamping Plate • Clamping area: 5,000 mm x 1,730 mm • T-slots: 9 x 28 DIN 650 • T-slot spacing: 160 mm Year of manufacture: 1992 Partial overhaul: 2025 The machine can be demonstrated live in D-73479 Ellwangen. About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our focus is on tool-milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls, and control system upgrades. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ Used machine – used milling machine – used traveling column milling machine – orthogonal milling head – metalworking – tool milling machine – milling head – SHW machine – SHW spare parts – used milling machine – used milling machine – used CNC milling machine – used drilling and milling machine – used metal milling machine – used metal milling machine – used metal milling machine – used CNC milling machine – CNC milling machines – CNC milling machines – milling machine – large-part machining – large-part machining – large-part machining – CNC large-part machining – milling – SHW – UF6 – UF 6 – Uniforce – SHW UF – SHW Uniforce – SHW Uniforce 6 – UFZ 6 – UFZ6L – UFZ 6 L – Heidenhain – MBM milling machine – MBM machine – column milling machine

Condition: new, Year of construction: 2025, Machine Features Automatic feed in the X, Y, and Z axes ensures precise machining of materials in three dimensions. Rapid traverse for all axes, along with stepless feed adjustment, enables efficient operation for a wide range of tasks. Digital display and user-friendly Schneider Electric control panel provide intuitive control over the machining process. Technical Specifications Table dimensions: 1600 × 360 mm Maximum table travel (X/Y/Z): 1300 × 300 × 420 mm Table T-slots (quantity / width / spacing): 3 / 14 mm / 95 mm Maximum table swiveling angle: ±45° Table feed speed: X/Y: 25–800 mm/min Z: 8–267 mm/min Spindle taper (vertical / horizontal): 7:24 ISO 50 / 7:24 ISO 50 Distance from table center to column surface: 230–530 mm Distance from spindle to table surface: 0–420 mm Distance from vertical front spindle plane to table surface: 150–570 mm Spindle speeds (vertical / horizontal): (12) 60–1750 / (12) 58–1800 rpm Horizontal spindle motor power: 5.5 kW Vertical spindle motor power: 4.5 kW Table feed servodrive: 2.36 kW / 15 Nm Ihjdpfx Ahjg Nghtouot Machine dimensions: 2550 × 2161 × 2102 mm Weight: 2885 kg Additional Equipment 3-axis digital readout Servodrive Long arbor ISO 50 / 27 mm and ISO 50 / 32 mm ISO 50 / MT4 reducer ISO 50 arbor with ER32 collets: 4, 6, 8, 12, 16, 18, 20, 26 mm Lighting Cooling system Central lubrication system Table feed for X, Y, and Z axes Complete service tool kit EC Declaration of Conformity Operating manual Our UWF 150S SERVO milling machine with a swiveling table is the perfect solution for demanding machining tasks, delivering reliability, precision, and high performance. Discover new possibilities in industry with our advanced technologies and robust construction.

Condition: excellent (used), travel distance X-axis: 10,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 1,300 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, pivoting range: 360 °, SHW PowerSpeed 5 Travel Paths Ihjdpfxjxgq Ays Ahuot • X-axis (Bed): 10,000 mm • Y-axis (Vertical): 2,100 mm • Z-axis (Horizontal spindle): 1,300 mm Control System • CNC Control: Heidenhain iTNC 530 Feed Rates • X, Y, and Z axes: 2 - 30,000 mm/min • Acceleration: 3.5 m/s² Universal Milling Head in Orthogonal Design • Milling head holder swivel range: 360 x 1 degree • Milling head swivel range: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Spindle speed range: 36 – 4,000 rpm o Intermittently 36 – 6,000 rpm Automatic Tool Changer • Tool magazine for 48 tools Coolant System • Tank capacity: 500 l About the company MBM MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include supply of spare parts, on-site customer service, machine overhauls, and control system modernization. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization ---- Used machine - used milling machine - used travelling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used fraesmaschine - used CNC milling machine - used bore milling machine - used metal milling machine - used metal mill - used metal milling machine - used CNC mill - CNC fraesmaschinen - CNC milling machines - milling machine - large component machining - large part machining - CNC large part machining - milling - SHW - PS5 - PS 5 - Powerspeed - SHW PSZ 5 - SHW Powerspeed - SHW Powerspeed 5 - PSZ 5 - Heidenhain - MBM milling machine - MBM machine - column milling machine
