PET blow molding machine

Sidel SBO

Condition: like new (used), functionality: fully functional, machine/vehicle number: SBO 6/10, Sidel Stretch Blow Moulding Machine Max. output: 6.000 bottles/hour. Max. bottle size: 3.000 cc. Blow stations: 6. Machine is in very good conditioning and well maintained. GENERAL INFORMATION The SBO 6/10 has 6 molds and 10 heating modules. Will work with a wide range of bottle sizes and styles from 0.25 to 3 liters. Sidel 2-step ^PET stretch-blow molders require previously manufactured preforms be supplied to the machine. Separating the bottle manufacturing and preform manufacturing processes allow production to be optimized, provide greater flexibility of operation and use, and provide higher production output rates and yield. MAXIMUM PREFORM DIMENSIONS Neck height 9 – 41 mm (measured from bottom of support ring) Minimum inside diameter of neck 19 mm Maximum outside diameter of neck 34 mm Preform support ring diameter 29 – 51 mm Maximum preform length 210 mm MAXIMUM BOTTLE DIMENSIONS Maximum bottle diameter 130 mm Maximum bottle height 380 mm Bottle capacity 0.25 – 3 liters AVERAGE PREFORM WEIGHTS (non carbonated and carbonated liquids) 0.25 liter bottle 14-20 grams 0.50 liter bottle 20-33 grams 1.00 liter bottle 26-40 grams 1.50 liter bottle 35-51 grams 2.00 liter bottle 44-58 grams 3.00 liter bottle 68-84 grams Gjdpfx Adog Ailcjvobh BLOW WHEEL Height 3.5 meters Number of molds 6 Closing force 10 tons Item height (under neck) at outfeed 1.4 meters approximately Machine DC drive motor power 4 KW HEAT CONDITIONING Height 2 meters Number of oven heating units 10 Number of heating zones per unit 8 Maximum power 170 KW ELECTRICAL USAGE Maximum supplied power 200 KW Average consumption 100-150 KW/hr (varies per bottle being produced) COMPRESSED AIR Supplied power from 7-35 bar Pressure 7 bar Flow rate 50-100 Nm3/hr (varies per bottle being produced) Blow pressure – champagne base up to 25 bar Blow flow rate – champagne base 110-550 Nm3/hr Blow pressure – petaloid base up to 35 bar Blow flow rate – petaloid base 155-770 Nm3/hr CHILLED WATER Temperature 10-12 degrees Centigrade Pressure 5-6 bar Flow rate up to 6 cubic meters/hour Kcal to be removed up to 16,000 Kcal/hour WEIGHT Blow wheel with molds 8 tons Heat conditioning unit 2.2 tons Preform feeder 0.65 tons Electrical cabinet 0.85 tons PREFORM HEAT CONDITONING The preforms are transferred neck up to the heat conditioning device. This unit continuously insures the preforms are inverted before passing, neck down, in front of the heating units and then inverts them again. During the heating phase, the preforms are rotated and their necks protected from the heat in order to optimize the distribution of heat without deforming the neck. Heating is insured by 10 heat modules. Each unit can accommodate up to 8 infrared lamps stacked horizontally whose ends are air cooled. The heating power of 8 zones, corresponding to the 8 rows of lamps, can be controlled in order to optimize the heat profile. These zones are regulated on all SBO Models. After heating, a control by infra-red camera of preform temperature enables regulation of the zones under control, thus insuring maintenance of the required temperature.

Condition: like new (used), Year of construction: 2008, AGRICULTURAL MACHINERY BUCHER CROSS-FLOW-FILTER FM 20 Gbsdpjgy T Dzjfx Advsh

Condition: used, Year of construction: 2007, This is a Sidel SBO 4 blow moulder, it’s designed to receive preforms of 38 mm neck size caps and blow mould the bottles . The speed of the machine is at 6,000 bottles per hour on 2 litre round bottles . The year of manufacture is 2007 and the condition is very good. The is delivered with the pre forms hopper and elevator. Gbsdpfox Tdahox Advjh Capacity: 6000 b/h Volumes: 250-500-1000-2000 ml Neck Size of preforms: 38 mm Format: Round bottles Air consumption: 11 bar Controls: SIEMENS SIMATIC MULTI TOUCH PANNEL Available: Immediately

Condition: ready for operation (used), Year of construction: 1993, functionality: fully functional, product height (max.): 380 mm, workpiece diameter (max.): 130 mm, production capacity: 7,200 unit/h, TECHNICAL DETAILS Number of cavities: 6 Capacity with standard bottles: up to 7,200 bph Product formats Bottle volume: 0.25 – 3.0 L Max. bottle height: 380 mm Max. bottle diameter: 130 mm Preform dimensions Max. preform length: 210 mm Neck inner diameter: 34 mm MACHINE DETAILS Dimensions & Weight Blow module dimensions: 2,000 x 2,200 x 2,200 mm Blow module weight: 8,000 kg Oven dimensions: 3,000 x 1,100 x 2,100 mm Oven weight: 2,000 kg Control cabinet dimensions: 1,500 x 1,000 x 2,100 mm Control cabinet weight: 1,000 kg Godjx A Uu Eepfx Advsbh Transformer 415V / 380V dimensions: 1,000 x 500 x 2,000 mm Transformer weight: 500 kg Preform hopper and conveyor dimensions: 3,000 x 1,500 x 3,500 mm Preform hopper and conveyor weight: 600 kg Preform feeder dimensions: 2,000 x 2,500 mm Preform feeder weight: 250 kg Infeed guide rail length: 2,000 mm Power supply Total power: 142 kW Mains connection: 380/420 V +/- 10%, 50 Hz +/- 1% Cooling water Cooling capacity: 16,000 kcal/h Water temperature: 10 – 12°C Flow rate: up to 6.0 m³/h Water pressure: 5 – 6 bar Compressed air Service air pressure: 7 bar Service air flow: 50 – 100 Nm³/h Blowing air pressure: up to 35 bar Blowing air flow for 0.25 – 3.0 L: 155 – 770 Nm³/h EQUIPMENT Transformer 415V / 380V Preform hopper and conveyor Preform feeder Infeed guides Adaptation to other voltages possible

Condition: used, Year of construction: 1998, Overview This machine was built in 1998 by French manufacturer Sidel. The machine is in very good working condition, is already professionally dismantled and stored in a warehouse. Techn. Details Capacity: 7.200 bph in 1,5L Number of moulds:  6 (molds not included) Equipped with quick change for shell molds Number of heating modules: 10 modules Neck personalization: 29/25      Working hours: 47.000 only         Machine was regularily maintained       Machine equipped with:            Sidel preforms elevator to unscrambler Sidel preforms unscrambler & feeder Sidel oven & blowing wheel for 6 molds Sidel electrical cabinet Sidel PCC drive & control panel Big set of spare parts list upon request Gbsdpferkgy Uox Advoh

Condition: used, Speed: 8.000 bph with 0,5 liter bottle. Different formats are possible optionaly. Gsdjxytviopfx Advobh Dismanteling is made by Seegräber GmbH on begining februar 2018. List of machines included: -SIDEL SBO 6 Blowing machine. Completly overhault by SIDEL in 2006. -Preform magazin and preform elevator Compressor, cooling, moulds not included

Condition: used, Year of construction: 1992, Automatic PET bottle blowing machine Manufacturer: SIDEL Type: SBO 4 S1 Year of prod. 1992 Capacity: 4,000 for 1.5 L / 2 L bottles Installed power: 150 kW Godpfx Aswa Rhrsdvobh Includes 1.5 L molds Preform feeder Technical condition: used machine, starts up, program is functional

Condition: good (used), Year of construction: 2017, functionality: fully functional, LINEAR PET BLOWING MACHINE SET with auxiliary equipment AC ARCOR - multiBlow2 - 2017 Speed: 1,5L - 6000 Godpfx Ajquuvrjdvobh Cavities: 4 Formats: 0,1 - 3,0L AUXILARY EQUIP 1. Chiller - M.T.A S.p.A - TAE EVO 051 2. LOW Pressure compressor - SHAMAL 45kw 3. High Pressure compressor - KAESER Booster N 753 - G 13 bar / 40 bar" 4. Air Dryer 5. Receiver tank - Low pressure - MAX 16Bar 6. Receiver tank - High pressure - MAX 45Bar

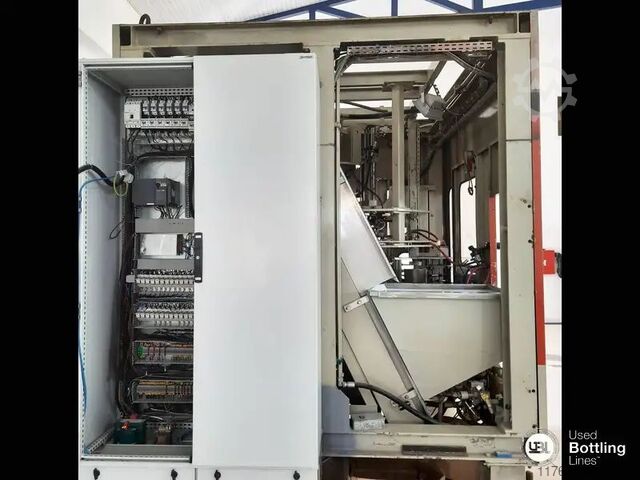

Condition: used, Year of construction: 1992, Used Blow Molding Machine Sidel 1992 Manufacturer: SIDEL Model: SBO2 Year: 1992 Speed (b / h): 3000 Processed formats: 0.25ml – 2 liter Accident prevention protections: Yes Manuals available: Yes Revisions available: Yes Operating status: In production Number of cavities: 2 Preform neck type: Preform 1881 weight: 9000kg Quick format change: Yes Preform loader: Yes Preform orientator: Yes Godjvgunwepfx Advjbh Compressor: No Chiller: No Air recovery system: No PLC type: Mitsubishi Spare parts available: Yes Hours worked: 2000 Consumption: Volt:360 Kw:40 Hz:100 Notes: Machine working stabile suitable to be connect with filler machine. The machine has been completely updated, hmi electronics and new plc.

Condition: used, Year of construction: 2008, Used Combiblock Sidel SBO 20 Universal 36000 bph The Used Sidel SBO 20 Universal Combiblock 36000 bph is an integrated bottling system, combining a blower and a filler/capper in a single unit. This machine is designed for the production of PET bottles, with a production capacity of up to 36,000 bottles per hour. The Sidel SBO 20 Universal blower features 20 cavities, allowing efficient and continuous production. The system includes a preform feeder with a hopper and a preform unscrambler, ensuring a constant flow of material in the production process. Gjdpfx Adovgu D Sovebh The Europa WM 60 filler/capper is integrated into the Combi block, optimizing space and reducing transfer times between the blowing and filling stages. This compact design improves operational efficiency and minimizes the risk of contamination. The system has been used for bottling natural mineral water in 0.5-liter formats, with a 26.6 mm Alaska-type neck customization. The machine pitch is 113 mm, adapting to specific production needs. Currently, the machine is in storage, ready to be installed and put into operation in a new production facility. A complete inspection is recommended before start-up to ensure optimal performance. The required power supply is 400 V at 50 Hz, standard in many industrial plants. The immediate availability of the Combi system represents an opportunity for companies looking to quickly increase their production capacity.   Advantages of the Combi system over a traditional system The Combi system, like the Used Sidel SBO 20 Universal Combiblock 36000 bph, offers numerous advantages over traditional systems, which use separate machines for blowing, filling, and capping. Firstly, the compact design drastically reduces the space occupied in the plant, allowing companies to optimize available space and, in many cases, reduce infrastructure costs. Moreover, the Combi system eliminates the need for intermediate conveyors and accumulation zones between stages. This layout simplification reduces maintenance costs, lowers the risk of jams or breakdowns along the production flow, and improves the overall line efficiency. The absence of intermediate steps also reduces the possibility of contamination, a priority especially in the food and beverage sector. The integrated process between blowing, filling, and capping shortens production times as the operations proceed continuously and without interruptions. This contributes to increasing the overall line speed and hourly production capacity. Higher efficiency translates not only into increased productivity but also into a significant reduction in energy consumption and operating costs. Additionally, the Combi system requires fewer personnel for line management and supervision, as a single control unit allows all operations to be monitored from a centralized interface. This simplifies operational procedures and makes quality control easier throughout the process.

Condition: used, Bottle filling line with an output of 30,000 bottles/h. 0.33l Vichy, 0.33l Euro, 0.35l Frucade and 0.5l NRW single-use and reusable bottles are used. The system consists of the following machines/components: -Unpalletizing system Manufacturer: Radenska & Steinle -Unpacker Manufacturer: SZA Federspiel -New glass lifter Manufacturer: Steinle Fördertechnik -Uncorker Manufacturer: Rink -Bottle washing machine Manufacturer: Krones -Crate washer -Bottle inspector Manufacturer: Krones -Beer preheater Manufacturer: Fischer -Bottle filler Manufacturer: Krones -Crown cap filling bunker with magnetic transport Manufacturer: Gassner -Bottle level control Manufacturer: Metec -Labeler Manufacturer: Krones/Renner -Label control Manufacturer: Miho -Packer Manufacturer: SZA Federspiel -Full crate inspection Manufacturer: Metec -Bottle carrier unfolder -Palletizing and palletizing system Manufacturer: Radenska & Steinle Additional title: with palletising and depalletising, years of manufacture 1993 - 2009 Gedevu Tt Iepfx Advobh Capacity: 30000 bottles/h Formats: 0,33 L Vichy, 0,33 L Euro, 0,35 L Frucade und 0,5 L NRW Running direction: anticlockwise Operation / Control: mainly Siemens S7 Features: Unpacking and palletizing system; unpacker; new glass remover; corker; bottle washing machine; crate washer; bottle inspector; beer preheater; bottle filler; crown cap feeder; fill level control; labeler; label control; packer full crate inspection; bottle carrier erector Layer patterns: 4x20, or 4x24, bottles, 4x8 boxes, 5 layers, on Euro pallet

Condition: new, Parts for the SIDEL blow molding machine bearings O ring nozzle strap Gsdpfx Asiqum Iedvobh sealing axis

Condition: used, Year of construction: 1998, Automatic PET bottle blowing machine Manufacturer: SIDEL Type: SBO 16/16 S1 Year of manufacture 1998 Capacity: 16,000 for 1.5 L bottles and up to 19,000 bph for 0.5 L bottles Installed power: 347 kW Includes 1.5 L moulds Preform feeder Chiller cooling unit Technical condition: used machine, functional until dismantled. The machine is currently dismantled, assembled in elements and prepared for transport. Gsdpfx Adoutni Revjbh Full and original technical documentation.

Condition: excellent (used), Year of construction: 2003, PET bottle blowing machine Manufacturer: KRONES Godpfjvddkvox Advjbh Model: CONTIFORM K781 Efficiency: 12,000 bph Includes 1.5 L and 0.5 L bottle molds Power: 150 kW Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Set dimensions (blow mold + preform feeder): 1100 x 340 cm, h: 450 cm Blow mold dimensions: 500 x 340 cm, h: 250 cm Feeder dimensions: 600 x 250 cm, h: 450 cm Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Year of production: 2003 Technical documentation of machine operation Very good condition
